Datalogic S5-5-C30-60 Photoelectric Sensor
New
In stock1 unitReady to ship
Photoelectric Sensor
Datalogic S5 series photoelectric sensor with infrared LED detection, configurable NPN/PNP output, and diffuse sensing range up to 30 cm. Designed for industrial automation with IP67 protection and M18 tubular housing.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

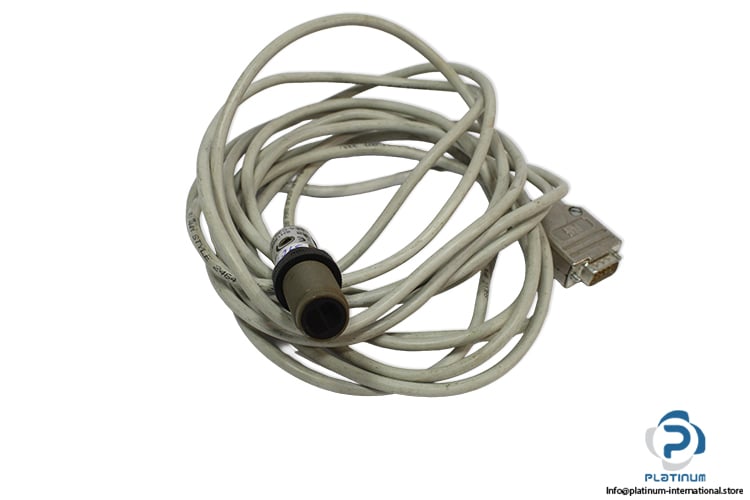

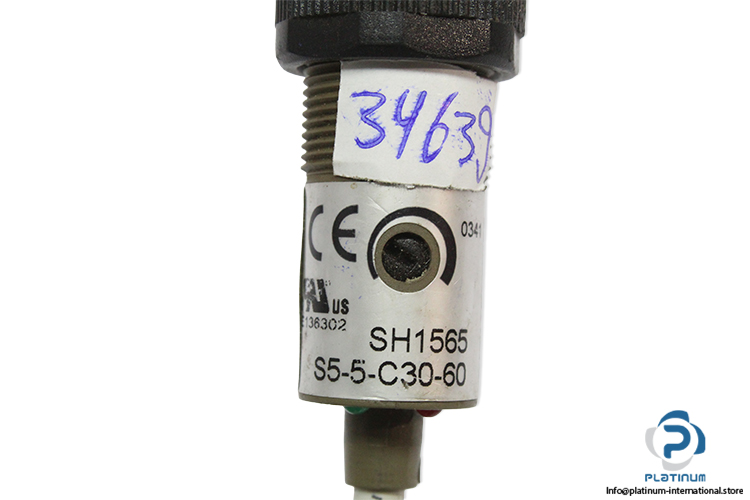

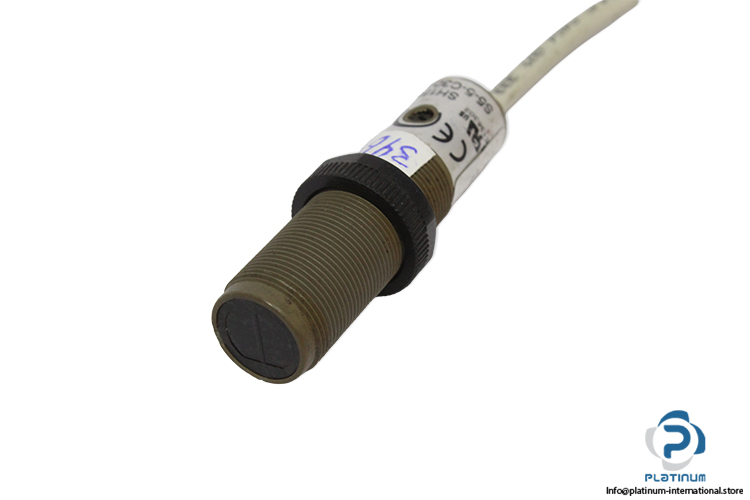

Datalogic S5-5-C30-60 Photoelectric Sensor
The Datalogic S5-5-C30-60 from the S5 series is a compact photoelectric sensor designed for reliable object detection in industrial automation systems. It features infrared LED emission technology and configurable output options, making it suitable for a wide range of sensing applications in machinery and automated production environments.
Manufacturer: Datalogic
Type: Photoelectric Sensor
Model: S5-5-C30-60
Series: S5
Code: SH1565
| Power Supply | 10 ... 30 VDC (d.c. vers.) |
| Consumption | 30 mA max. (d.c. vers.) |
| Light Emission | Infrared LED 880 nm |
| Diffuse Proximity Operating Distance | 1 ... 30 cm |
| Indicators | Green Stability LED (d.c. vers.) |

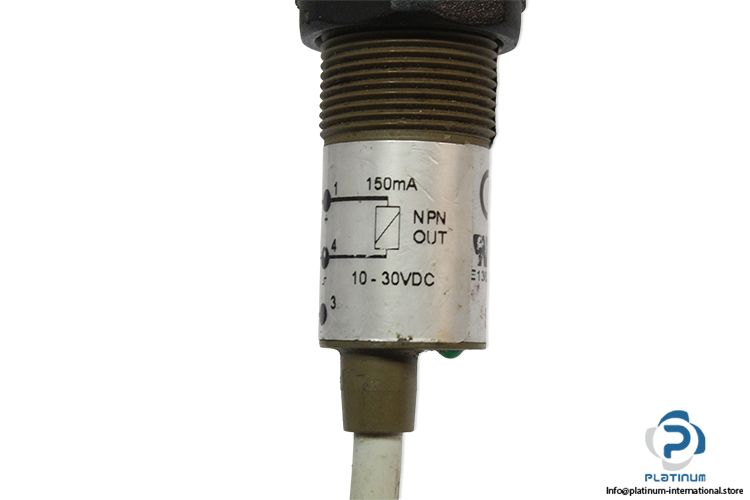

| Output Type | Configurable NPN/PNP |
| Operating Mode | Dark/Light Selectable |
| Saturation Voltage | 2.5 V max. |
| Output Current | 150 mA max. |

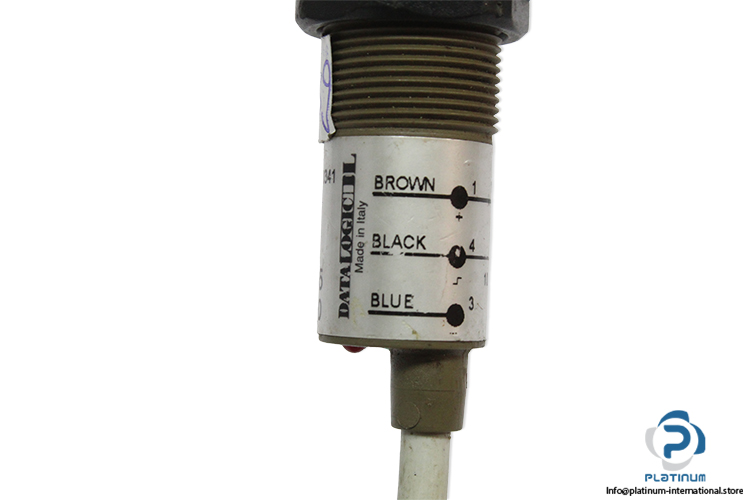

| Connection | 4-Pole M12 Connector or 2 m Ø 5 mm Cable |
| Electrical Protection | Class 2 (d.c. vers.) |
| Mechanical Protection | IP67 |
| Housing Material | ABS |
| Lens Material | PMMA Plastic |
| Operating Temperature | -25 ... +55 °C |

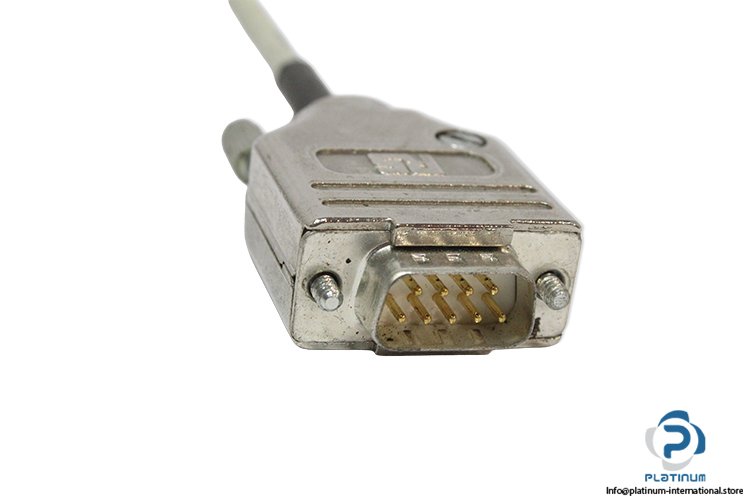

| Connection | 9-Pin Male Plug |
| Housing Type | M18 Plastic Tubular Housing |
