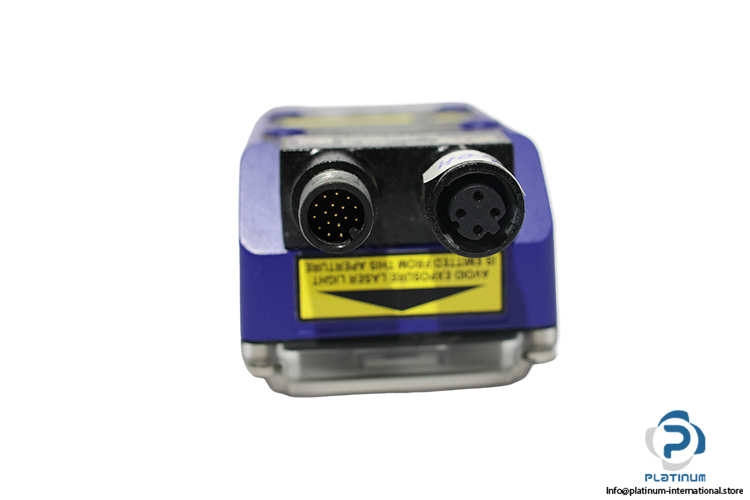

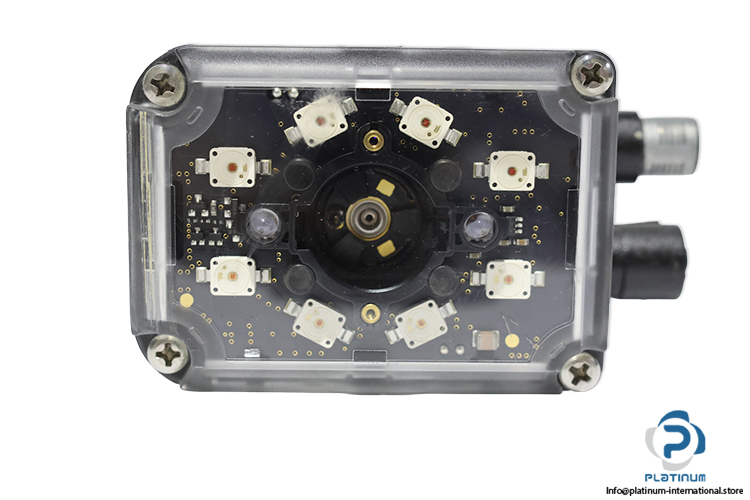

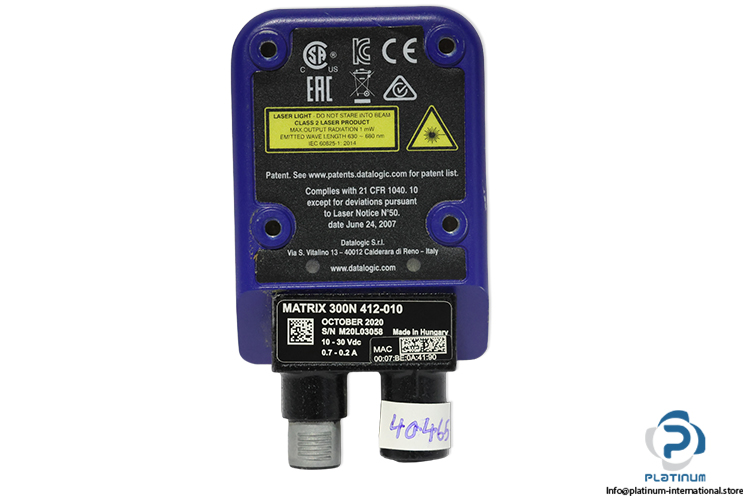

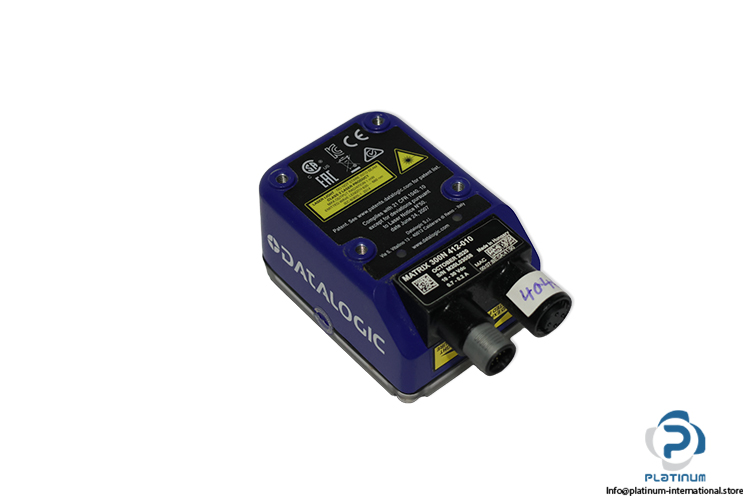

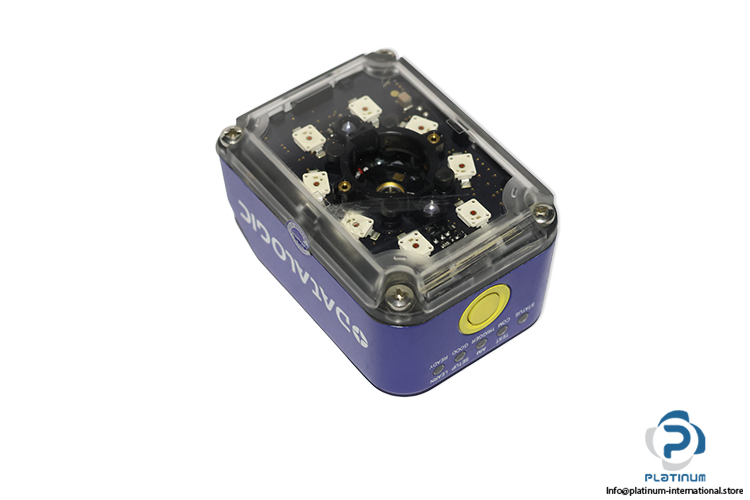

Datalogic Matrix 300N Barcode Scanner
Used
In stock2 unitsReady to ship
Datalogic MATRIX 300N industrial barcode scanner with 1280 x 1024 image resolution, 60 fps frame rate, IP67 protection, and Ethernet, PROFINET, and serial communication interfaces.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 412-010 |
| Material | Aluminum, Plastic protective window cover |
| Operating Temperature | 0° to + 50 °C |
| Protection degree | IP67 |
| Power Supply | 10 VDC to 30 VDC/ Power over Ethernet: 48 Vdc |
| Power Consumption | 8 W max; 5W typical |
| Sensor Image Resolution | 1280 x 1024 |
| Frame Rate | 60 frames/s |
| Optical Focus Control | Electronic for liquid lens model (LQL-9MM) - Manual for fixed lens model (LNS-6mm, LNS-9mm, LNS-12mm, LNS-16mm) |
| Optical models/viewing angles | 66° (6mm) . 40° (9mm) . 32°(12mm) . 24° (16mm) |
| Aiming System | Dual laser pointer (CDRH/IEC Class II) |
| Com. Interfaces | Ethernet 10/100: Ethernet IP, TCP/IP, UDP, FTP, MODBUS TCP Serial RS232/RS422/RS485 up to 115.2 Kbit/s + Aux RS232 On-board PROFINET-IO |
| Reader Networking | Datalogic ID-NET™ |
| Connectivity Modes | Pass Through, Master/Slave, Ethernet point to point |
| Digital Inputs | 2 opto-isolated. Polarity insensitive and SW Programmable. |
| Digital Outputs | 3 SW programmable PNP/NPN ( short circuit protection ). OUT3 programmable as input - Output current 100 mA max, Saturation voltage < 3 V @ 100 mA |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105031 |
| Weight | 0,25 |
