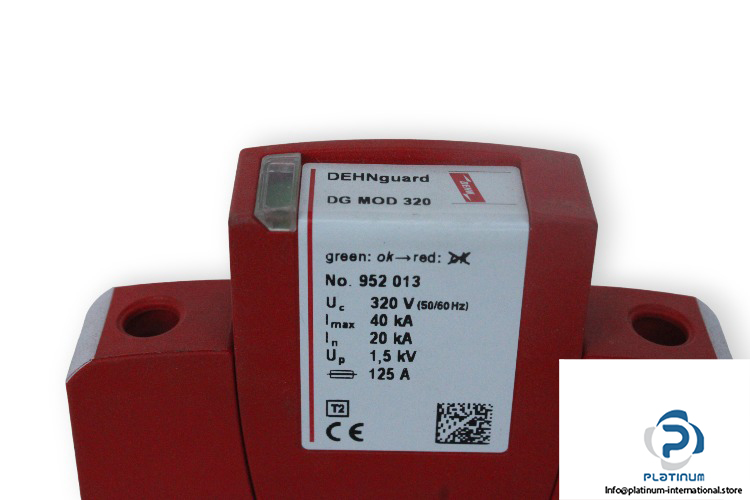

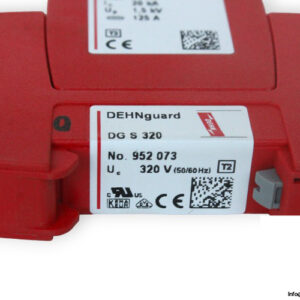

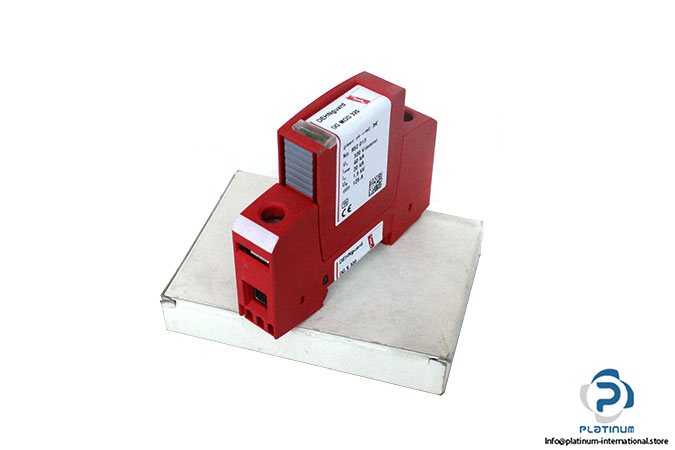

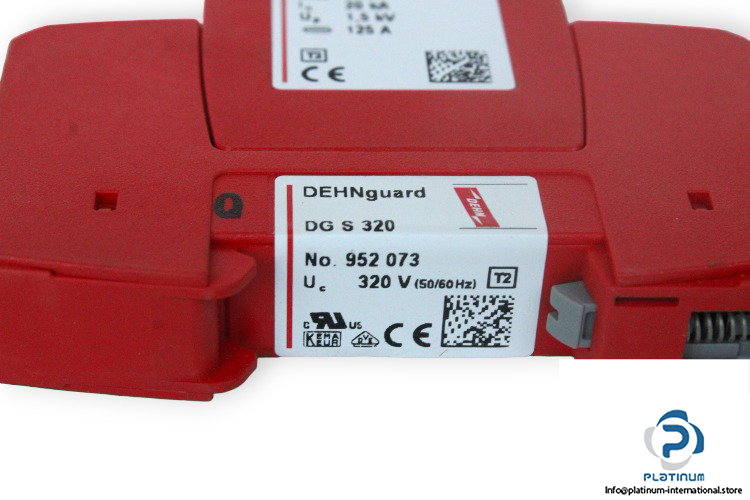

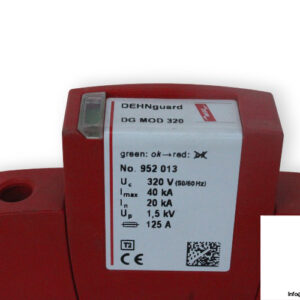

Dehnguard Surge Protection for Power Supply “ DGS320 / DG MOD 320
The Dehnguard DGS320 surge protection device is designed to protect power supplies from high voltage surges. Featuring fast response time and high discharge current capacity, it is ideal for safeguarding sensitive equipment from electrical transients.
- Manufacturer: Dehnguard
- Type: Surge Protection for Power Supply
- Model: DGS320 / DG MOD 320
- Part No: 952073
- ID. No.: 053263
Technical Information:
- Max. Continuous Operating Voltage (UC): 320 V AC, 50/60 Hz
- Nominal Voltage (UN): 230 V AC, 50/60 Hz
- Nominal Discharge Current (8/20 µs) (In): 20 kA
- Max. Discharge Current (8/20 µs) (Imax): 40 kA
- Response Time (tA): ‰¤ 25 ns
- Number of Ports: 1
- Voltage Protection Level (UP): ‰¤ 1.5 kV
- Max. Mains-Side Overcurrent Protection: 125 A
- Operating Temperature: -40 to +80 °C
- Degree of Protection: IP20
- Dimensions: 90 x 18 x 66 mm
