Dehn DG S 320 Surge Protector
Used
In stock1 unitReady to ship
Surge Protector
The Dehnguard DGS320 / DG MOD 320 surge protector offers high discharge current capacity, ultra-fast response time, and robust protection for electrical systems against voltage spikes. Ideal for industrial and residential use.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

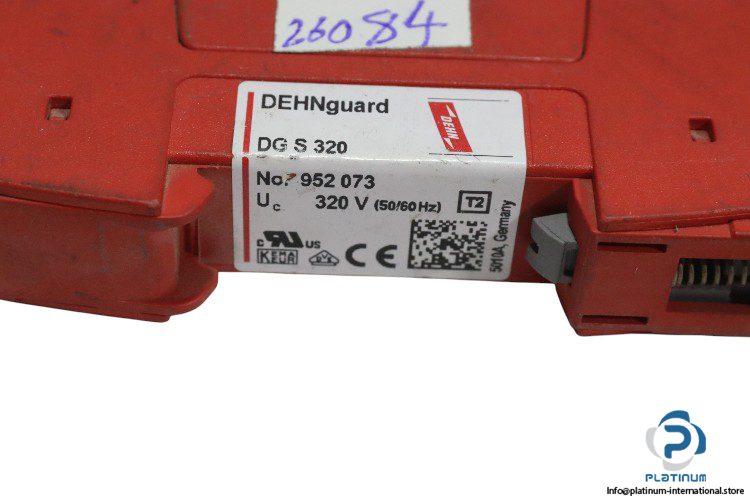

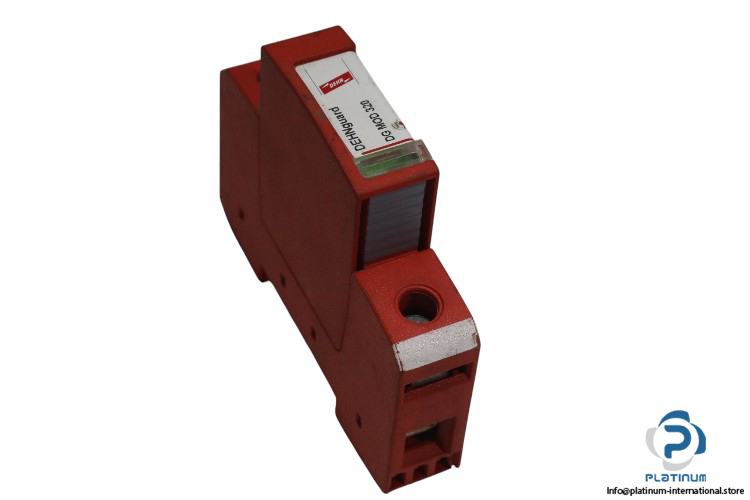

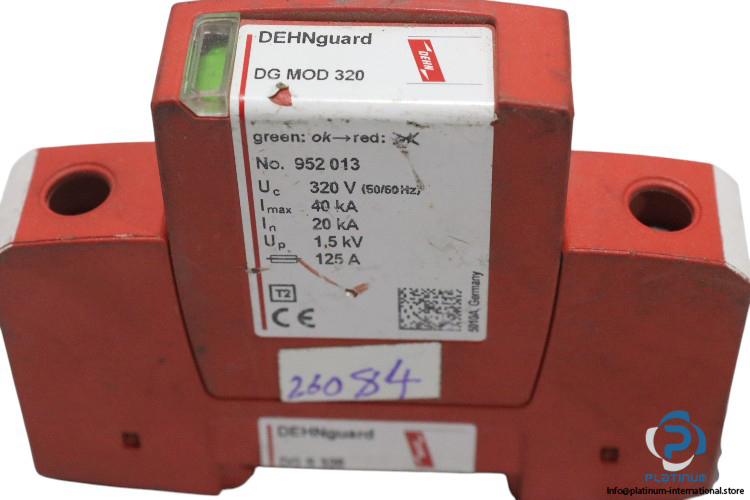

Dehnguard DGS320 / DG MOD 320 “ Surge Protector
The Dehnguard DGS320 / DG MOD 320 surge protector is designed to safeguard electronic devices from voltage spikes and surges. It features a high discharge current rating and ultra-fast response time, providing reliable protection in industrial and residential applications.
Manufacturer: Dehnguard
Type: Surge Protector
Model: DGS320 / DG MOD 320
Part No.: 952 073
| Max. Continuous Operating Voltage (UC) | 320 V AC, 50/60 Hz |
| Nominal Voltage (UN) | 230 V AC, 50/60 Hz |
| Nominal Discharge Current (8/20 µs) (In) | 20 kA |
| Max. Discharge Current (8/20 µs) (Imax) | 40 kA |
| Response Time (tA) | ‰¤ 25 ns |
| Number of Ports | 1 |
| Voltage Protection Level (UP) | ‰¤ 1.5 kV |
| Max. Mains-Side Overcurrent Protection | 125 A |
| Operating Temperature | -40 to +80 °C |
| Degree of Protection | IP20 |
| Dimensions | 90 x 18 x 66 mm |
