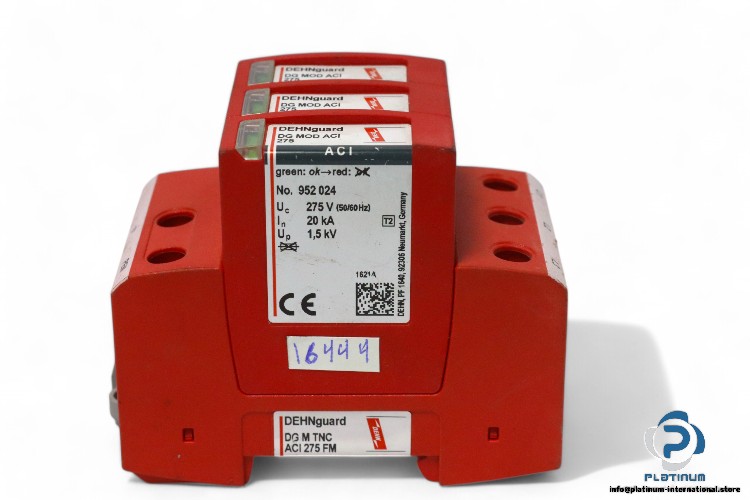

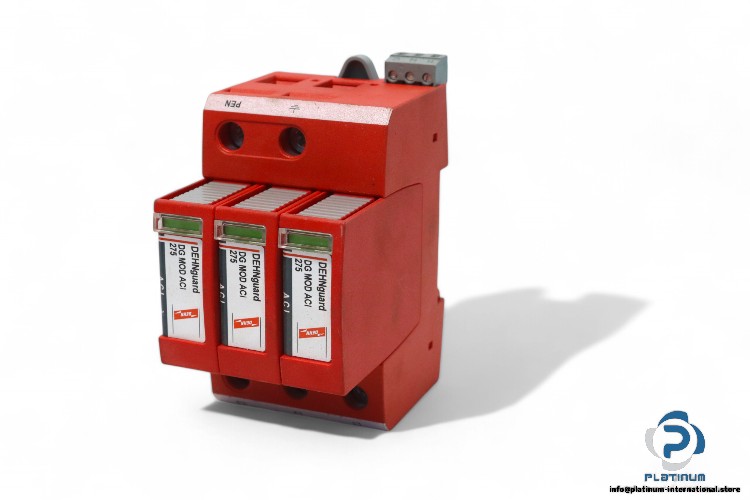

Dehnguard DG M TNC ACI 275 FM 952 330 Surge Arrester Module

Manufacturer: DEHNGUARD
Type: SURGE ARRESTER MODULE
Model: DGMTNCACI275FM
Part no.: 952330

Nominal voltage (U_N): 230 / 400 V AC
Frequency: 50 … 60 Hz
Number of ports: 1
For mounting on: 35 mm DIN rails acc. to EN 60715
Place of Installation: Indoor Installation
Material: Thermoplastic, Red, UL 94 V-0
SPD according to EN 61643-11 / IEC 61643-11: type 2 / class II
Degree of protection: IP20
Operating Temperature Range (TU): -40 … 80 °C
Dimensions: 90x54x70 mm
ATTACHMENT:
DEHNGUARD DG MOD ACI 275 952 024 SURGE ARRESTER
Manufacturer: DEHNGUARD
Type: SURGE ARRESTER
Model: DGMODACI275
Part no.: 952024
Nominal Discharge Current (8/20 µs) (In): 20 Ka
Continuous Operating Voltage (U_C) Max.: 275 V AC
Electric potential or voltage UP: 1.5
Dimensions: 45 X 18 X 54 mm
