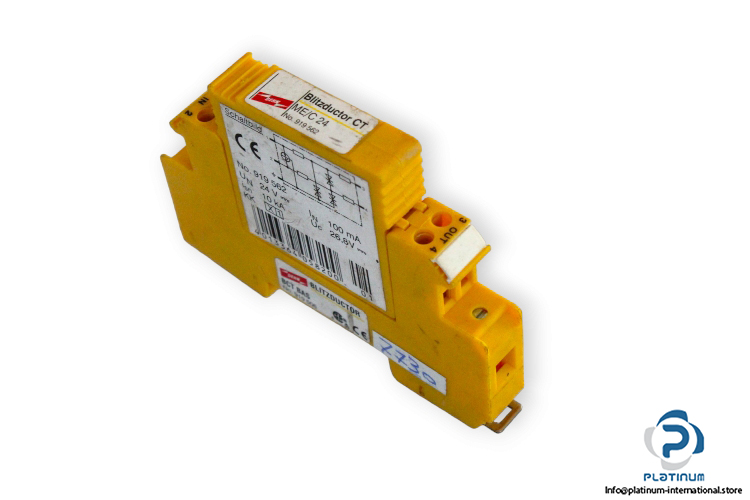

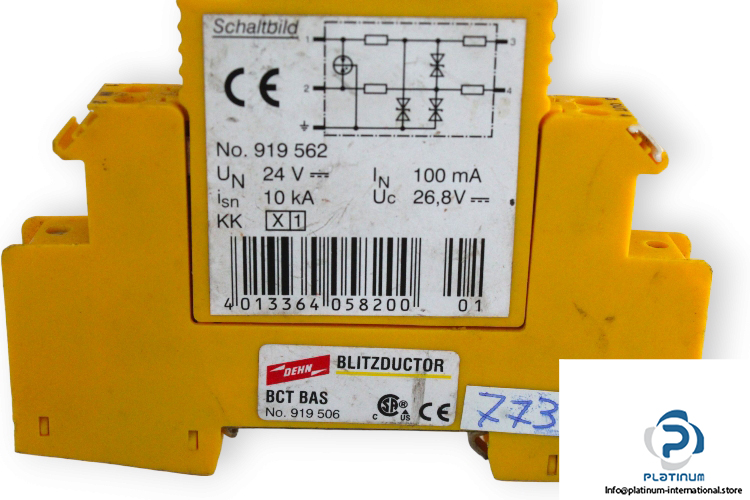

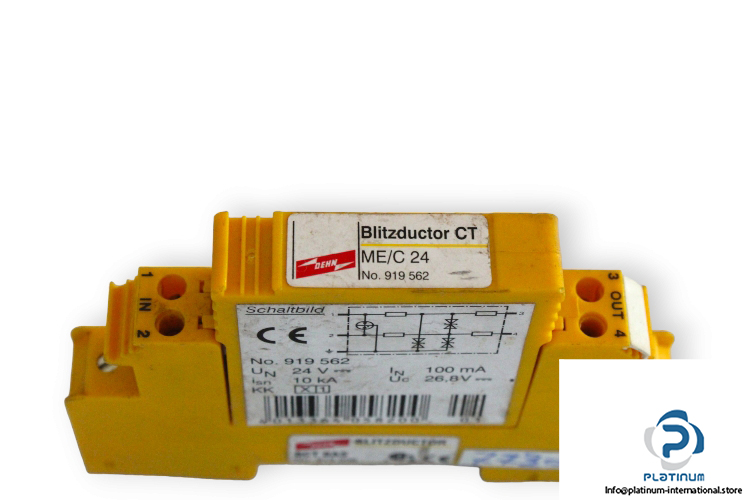

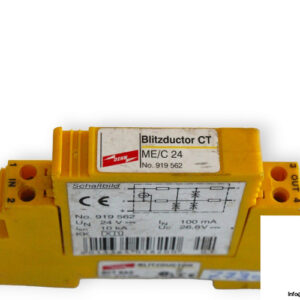

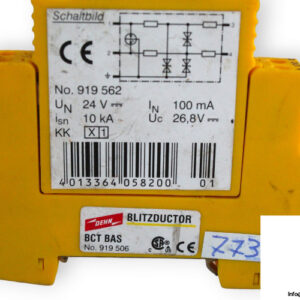

Manufacturer: DEHN / Blitzductor CT
Type: Surge Arrester Module
Model: ME/C24
Part No: 919 562

Nominal Voltage: 24 V AC/DC
Nominal Discharge Current: 10 kA
Nominal Current: 100 mA
Continuous Operating Voltage: 26.8 V AC/DC
Operating Temperature: -40 … 80 °C
Degree of protection: IP20
Dimensions: 45 X 12 X 43 mm

                   DEHN BCT BAS BASE TERMINAL

Manufacturer: DEHN / Blitzductor CT
Type: Base Terminal
Model: BCT BAS
Part No: 919 506

Connection: Screw
Torque: 0.4 Nm
Operating Temperature: -40 … 80 °C
Degree of protection: IP20
Dimensions: 45 X 12 X 43 mm
