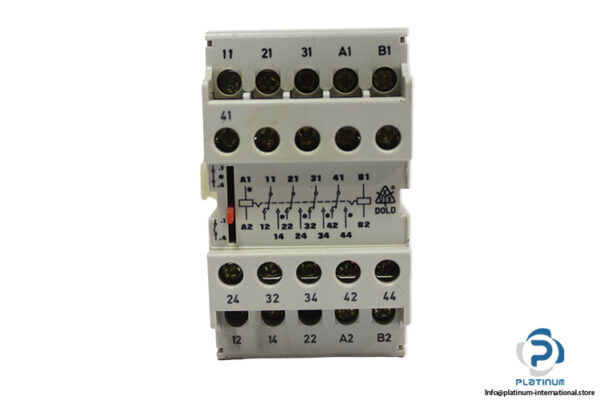

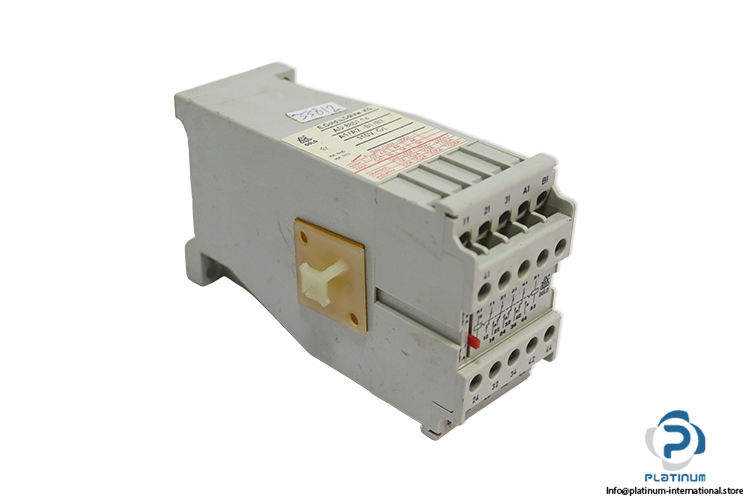

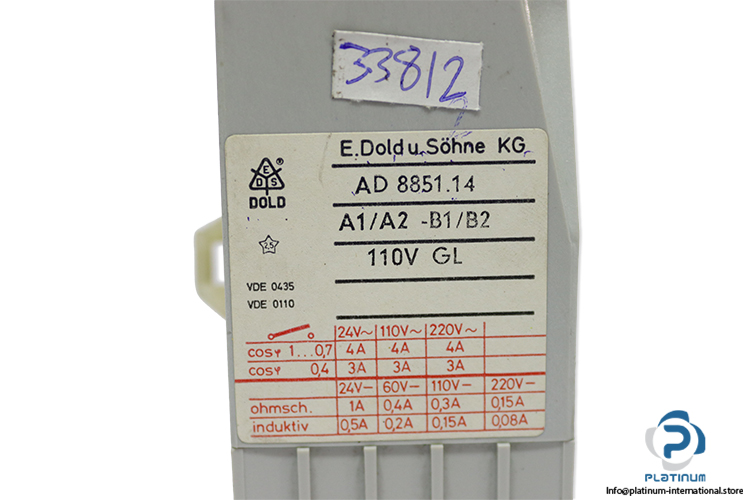

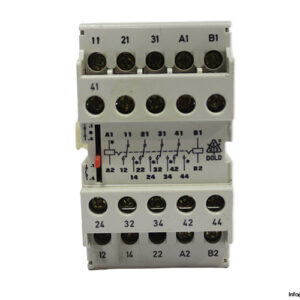

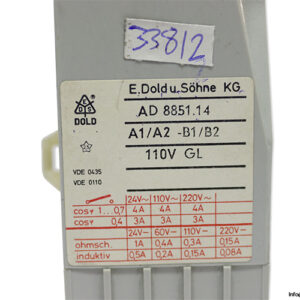

E.DOLD AND SOHNE AD 8851.14 Latching Relay
A high-quality industrial latching relay designed for reliable switching performance, stable operation, and long service life. Ideal for automation panels, control circuits, and systems requiring secure relay state retention. Manufacturer: E.DOLD AND SOHNE
Type: Latching Relay
Model: AD 8851.14
Technical Information
- Control Voltage: 110 V AC
- Terminal Designation: A1 / A2; B1 / B2
- Standards: VDE 0435, VDE 0110
- Contacts: 4 Changeover (4CO)
- Operating Mode: Continuous Operation
- Temperature Range (Operation): -20 … +45 °C
- Altitude: ‰¤ 2000 m
- Wire Fixing: Flat Terminals with Self-Lifting Clamping Piece IEC/EN 60999-1
- Fixing Torque: 0.8 Nm
- Mounting: DIN Rail
- Dimensions (W x H x D): 45 x 77 x 127 mm
