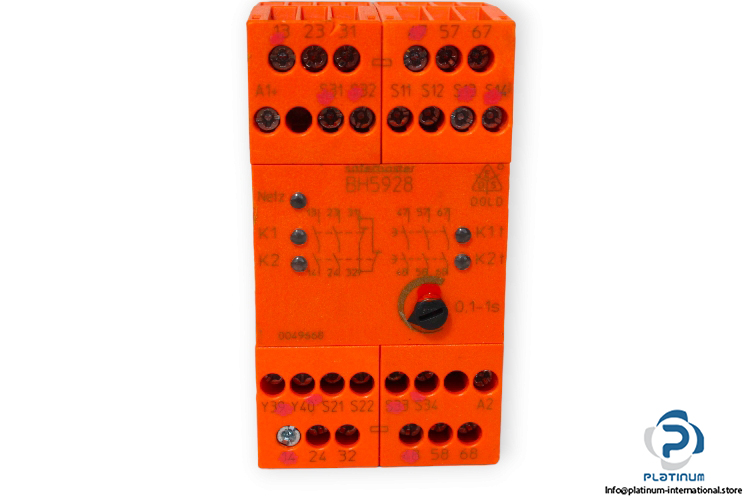

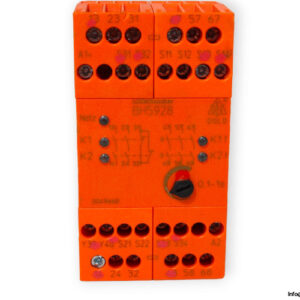

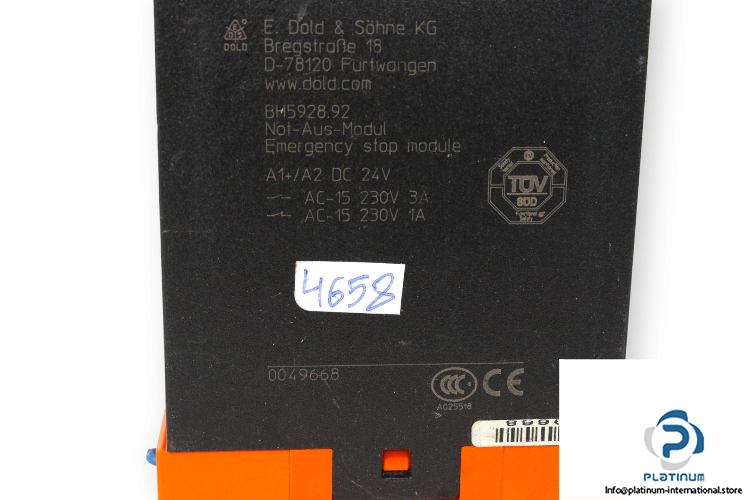

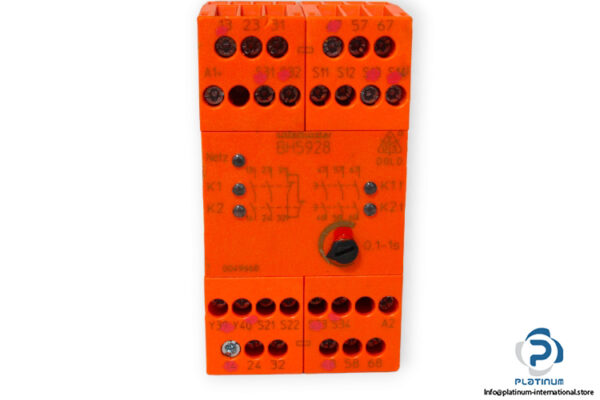

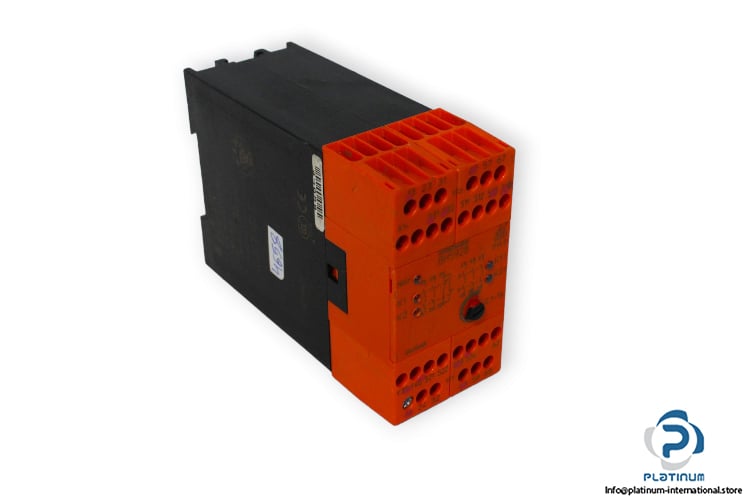

Manufacture: Dold
Type: Emergency stop module with time delay
Model: BH5928.92
Art. No.: 0049668

Nominal voltage U_N: 24 V DC
Contact rating: 2 NO, 1 NC contacts instantaneous and 3 NO contacts release delayed
Time Delay T_V: 0.1 … 1s
Switching capacity
AC-15: 230 V AC,3/1 A
Operation temperature: -25 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 84 x 121 mm
