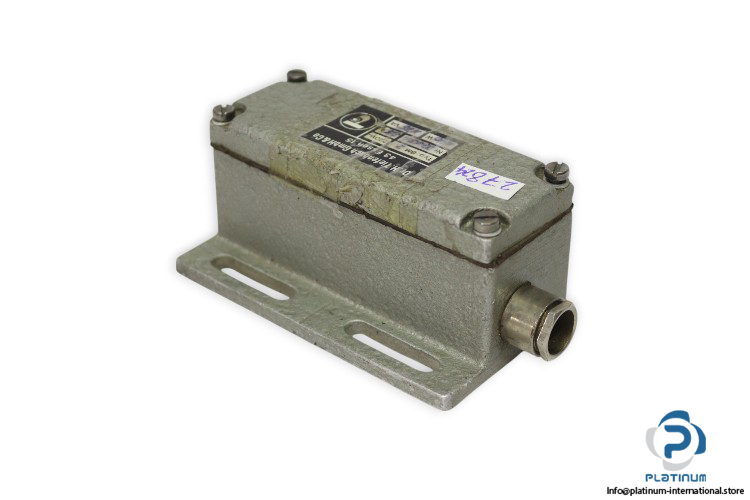

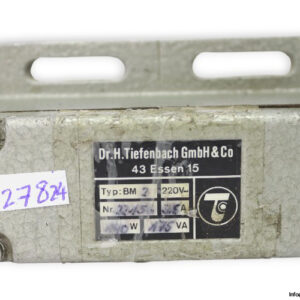

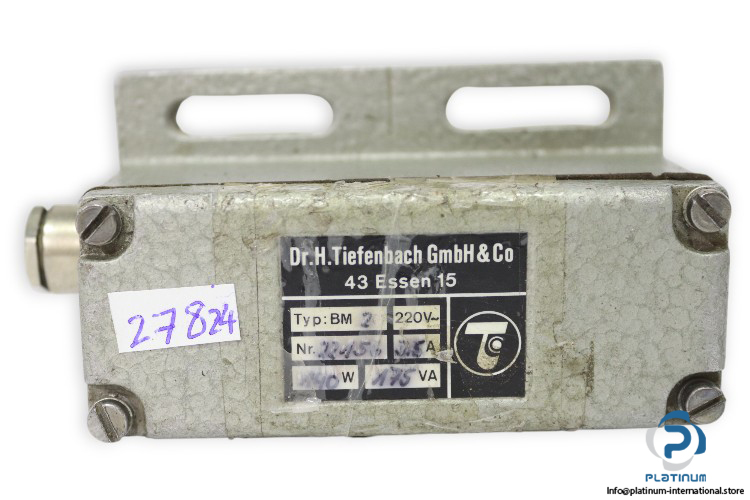

DR.H.TIEFENBACH BM 2 MAGNETIC SWITCH

This high-speed magnetic switch is engineered for precise switching operations in industrial environments. Built with a durable silumin housing, it ensures reliable performance under demanding conditions. Its compact form, fast response, and high switching frequency make it ideal for automation systems.

• Manufacturer: DR.H.TIEFENBACH
• Type: Magnetic Switch
• Model: BM 2
• Part No.: 22456

Technical Information

• Voltage: 220 V AC
• Current: 3.5 A
• Power: 175 VA / 140 W
• Response Time (Closing): Max. 3.5 ms
• Fall Time (Opening): Max. 0.2 ms
• Bounce Duration: Max. 0.5 ms
• Switching Frequency: Max. 100 Hz
• Pulse Switch: Max. 50 g
• Latching Switch: Max. 15 g
• Protection Class:
  • K with cable compartment: IP 54
  • L with line and fully encapsulated housing: IP 67
• Housing: Light metal casting Silumin
• Dimensions: 40 x 104 x 58 mm
