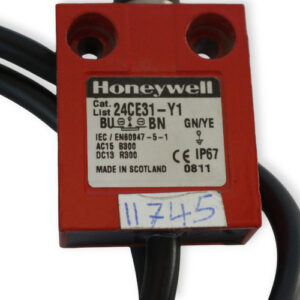

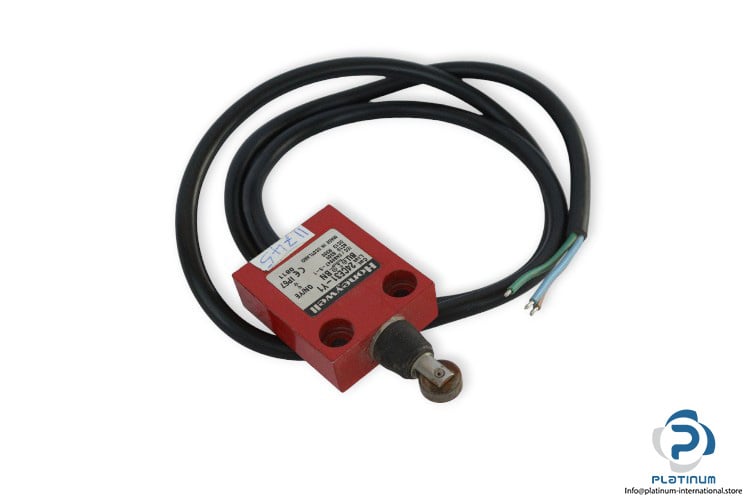

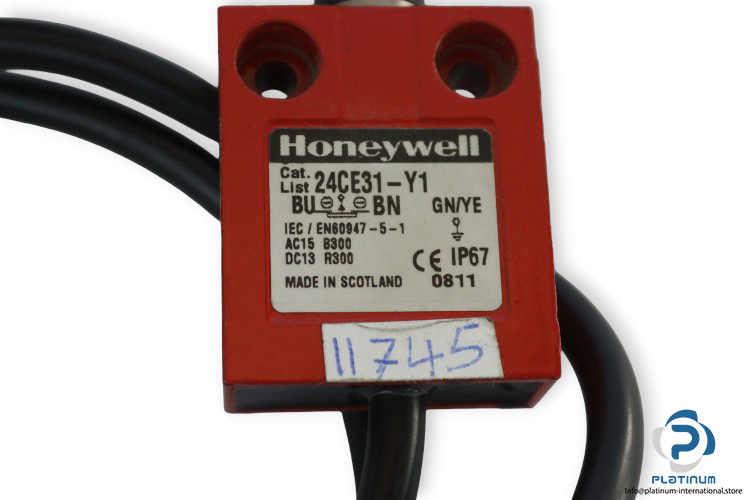

Honeywell 24CE31-Y1 Limit Switch

Manufacture: Honeywell
Type: Limit Switch
Model: 24CE31Y1
Series: 24CE

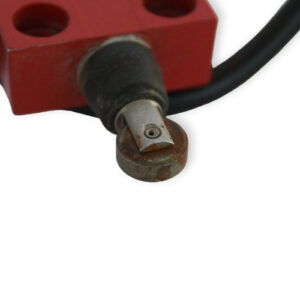

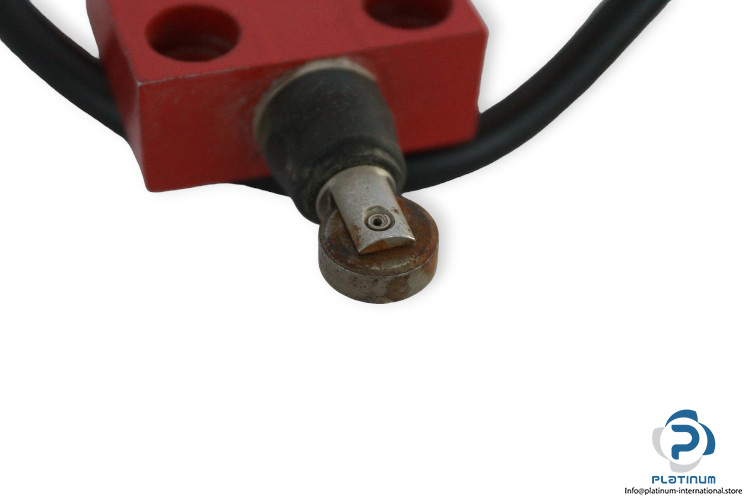

Head Type: Top roller plunger perpend., Ø12,7x 4,7 wide (steel)
Contact: 1 Normally closed
Operating Force or Torque (max.): 25,5 N [5.73 lb]
Rated operational voltage (Ue): 240 V AC, 250 V DC
Current Rating Ie: 10 A
Rated thermal current (Ith): 10 A
Rated impulse withstand (Uimp): 2500 V
Contact type: Slow action
Contact material: Silver alloy, gold-plated contacts optional
Housing material: Epoxy coated die-cast zinc
Standard: IEC / EN60947-5-1
Operating temperature: 0 … 70 °C
Protection degree: IP67
