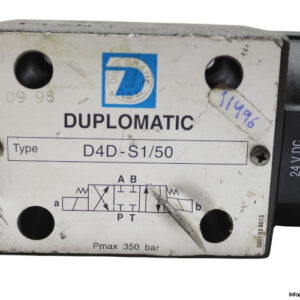

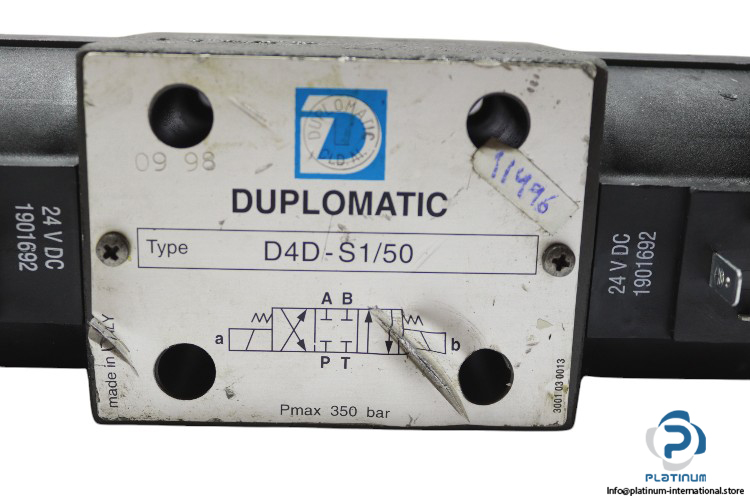

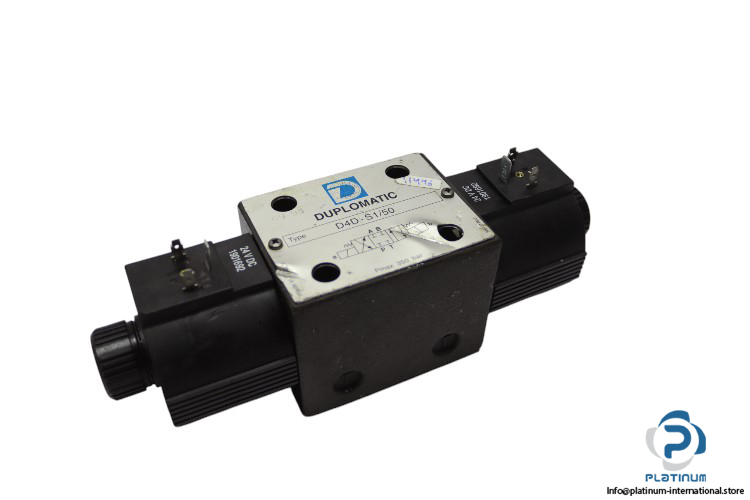

Duplomatic D4DS1/50 Solenoid Operated Directional Control Valve

The Duplomatic D4DS1/50 Solenoid Operated Directional Control Valve is a high-performance hydraulic component designed for precise fluid flow control in industrial applications. With a compact design and robust construction, this valve ensures reliable operation under high pressure and flow conditions.

• Manufacturer: Duplomatic
• Type: Solenoid Operated Directional Control Valve
• Model: D4DS1/50
• ID. No.: 09 98
• Ref. No.: 3001030013

Technical Information

• Size: 05
• Type of Actuation: Electrically
• Max. Pressure: 350 bar
• Maximum Flow Rate: 100 l/min
• Ambient Temperature Range: -20 to +50 °C
• Fluid Temperature Range: -20 to +70 °C
• Nominal Voltage per Coil: 24 V DC
• Hydraulic Connection: 5 mm

Attachment

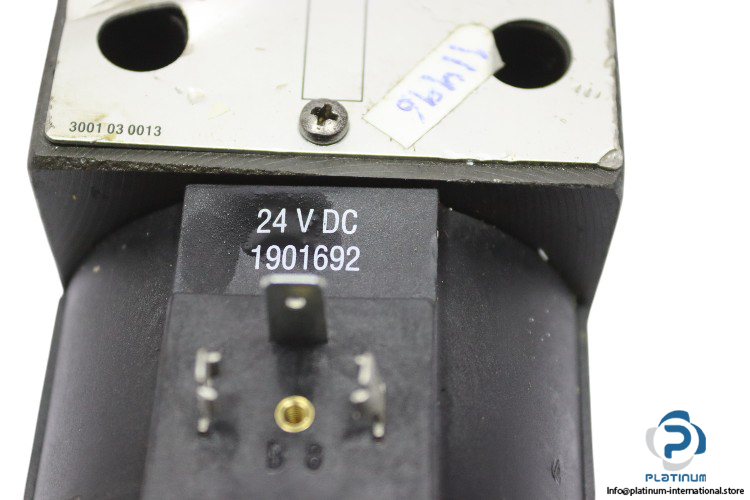

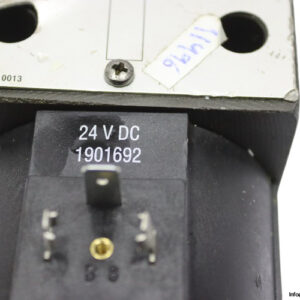

• Part No.: 1901692
• Type: Valve Coil
• Reference: 1901692 VALVE COIL

Engineered for industrial hydraulic systems, the Duplomatic D4DS1/50 delivers precise and reliable directional control, ensuring efficiency and stability in demanding applications.
