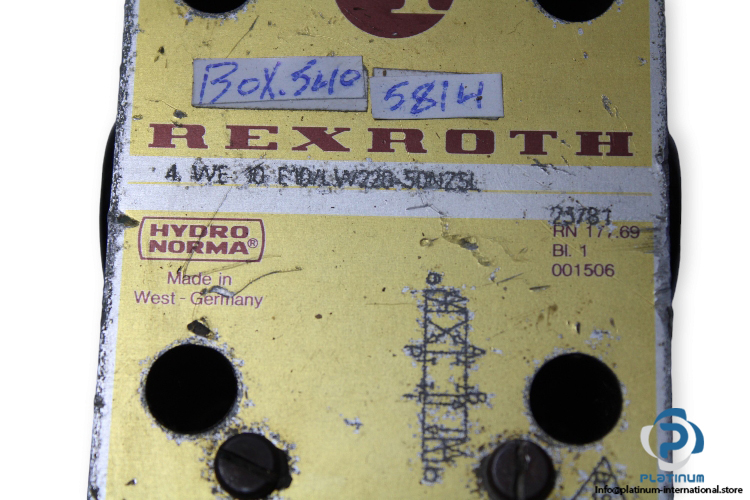

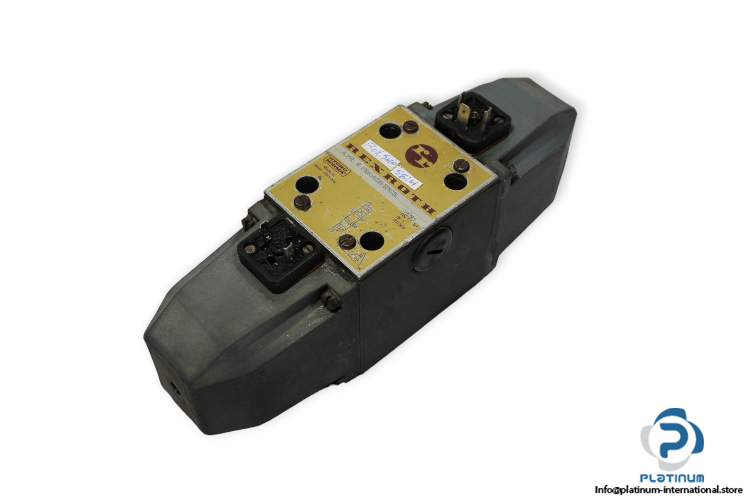

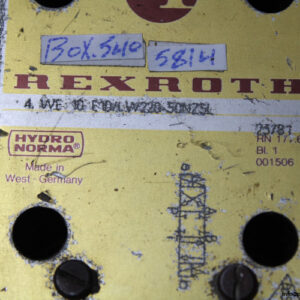

Rexroth 4WE 10 E10/L W220 50NZ5L Directional Control Valve

Manufacturer: Rexroth
Type: Directional Control Valve
Model: 4WE 10 E10/L W220 50NZ5L

Size: 10
Type of Actuation: Electrically
Ambient Temperature Range [°C]: -30 …. +50
Maximum Operating Pressure at Ports A, B, P [bar]: 315
Maximum Operating Pressure at Port T [bar]: 210
Maximum Flow Rate [bar]: 120
Hydraulic Fluid Temperature Range [°C]: -30 …. +80
Viscosity Range [mm²/s]: 2.8 … 500
Connection: Sup-plate

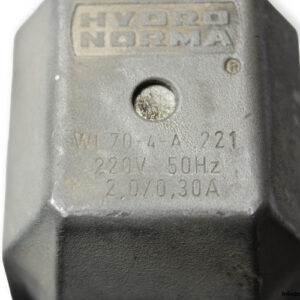

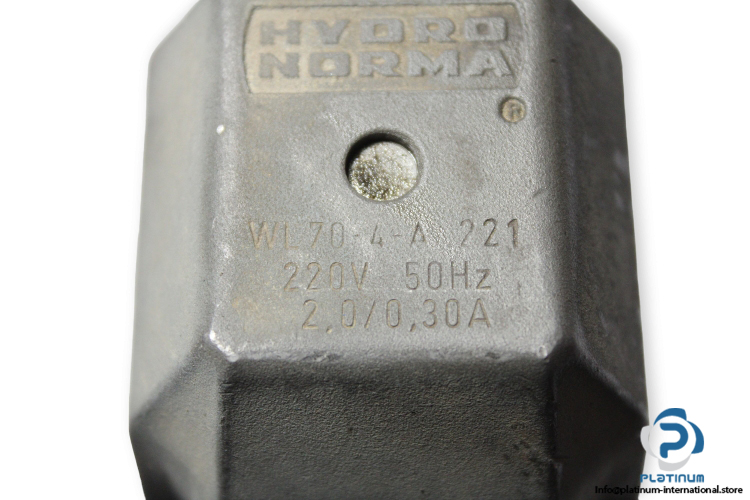

Attachment: Hydronorma WL 70-4-A 221 Solenoid Coil
Manufacturer: Hydronorma
Type: Solenoid Coil
Model: WL 70-4-A221
Voltage [V]: 220
Current [A]: 2.0/0.30
Frequency [Hz]: 50
