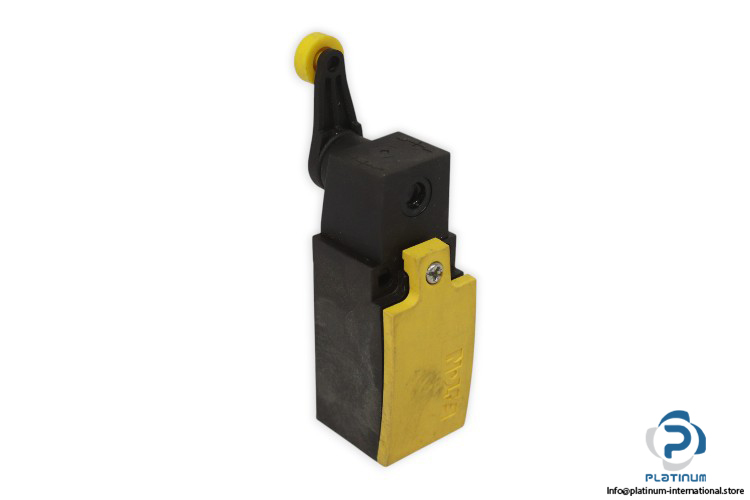

EATON LS-11 Limit Switch
The EATON LS11 is a high-quality limit switch designed to deliver reliable performance in industrial automation systems. With robust construction and precise actuation, it ensures safe and accurate control for a variety of mechanical applications.
Manufacturer: EATON
Type: Limit Switch
Model: LS-11
Technical Information
- Rated Operational Ratings: AC-15: 400 V, 4 A / 230-115 V, 6 A | DC-13: 220 V, 4 A / 110 V, 6 A / 24 V, 3 A
- Rated Insulation Voltage: 400 V AC
- Rated Thermal Current: 10 A
- Rated Impulse Voltage (Uimp): 4 kV
- Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Contact Ratings: 300 V AC, 10 A / 250 V DC, 1 A
- Actuator Type: Roller Lever
- Housing Material: Plastic
- Protection Class: IP65
- Ambient Temperature: -25 / 70 °C
- Dimensions: 86 x 56 x 33.5 mm
