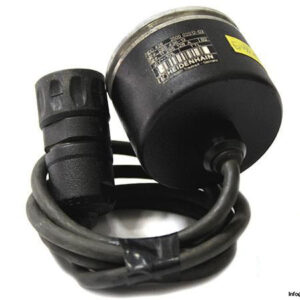

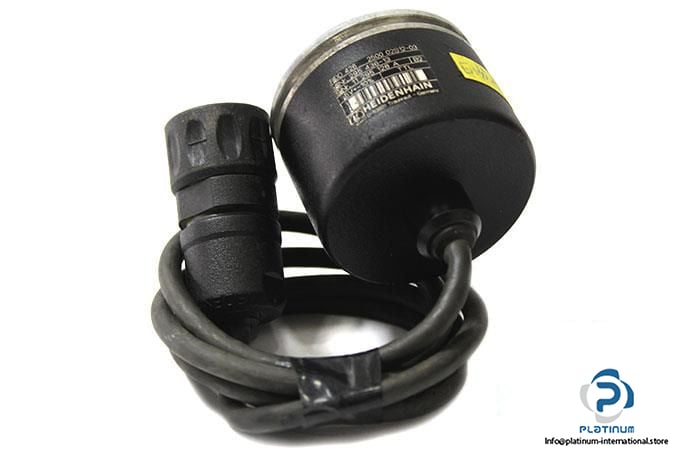

HEIDENHAIN ROD 426-2500-02S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426-2500-02S12-03 is a high-precision incremental encoder designed for demanding industrial environments. It delivers reliable TTL signal output with excellent resolution and mechanical robustness, making it ideal for applications in automation, robotics, and motion control.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

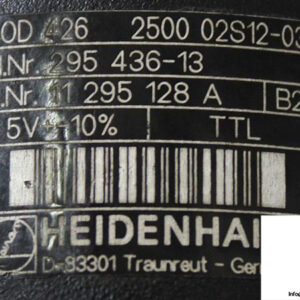

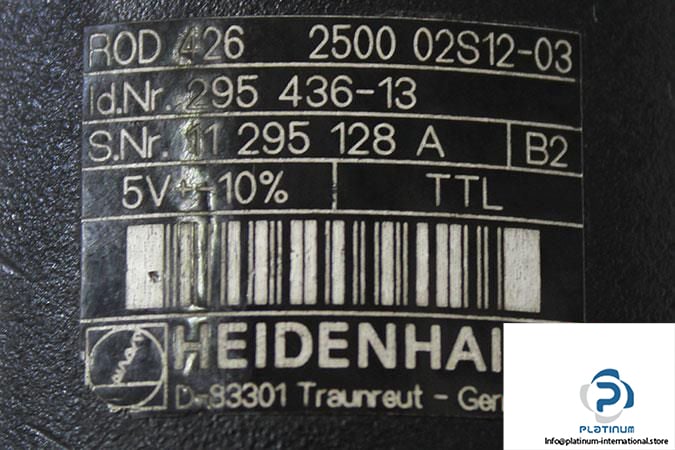

Model: ROD 426-2500-02S12-03
ID No.: 295 436-13
SN: 11 295 128 A

Technical Information

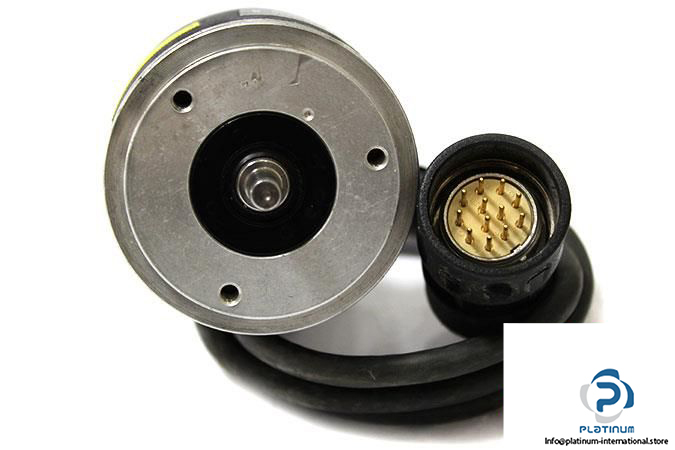

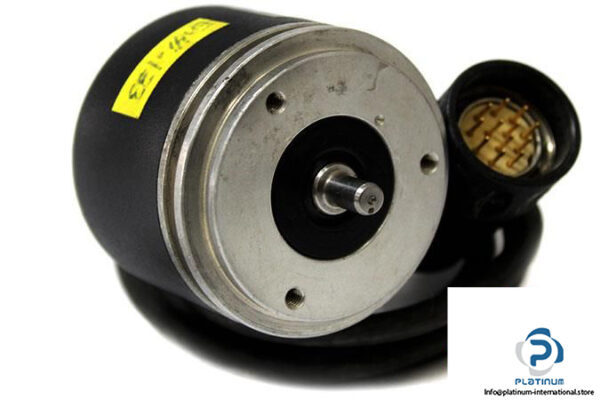

• Flange Design: Synchro flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 2500 Pulse per revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max Speed: 16000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP67 at housing, IP64 at shaft inlet
• Max Temperature: 100 °C
