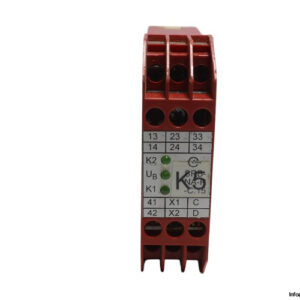

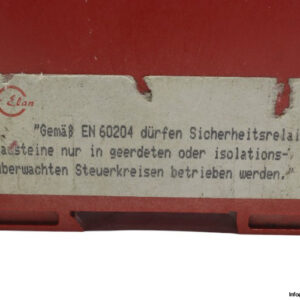

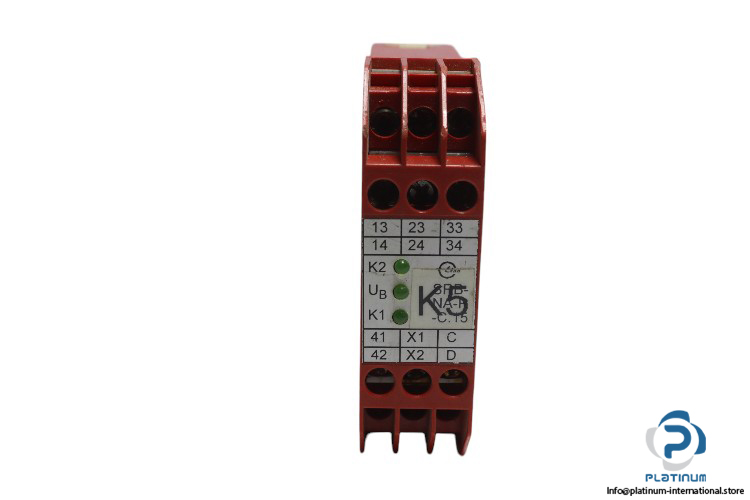

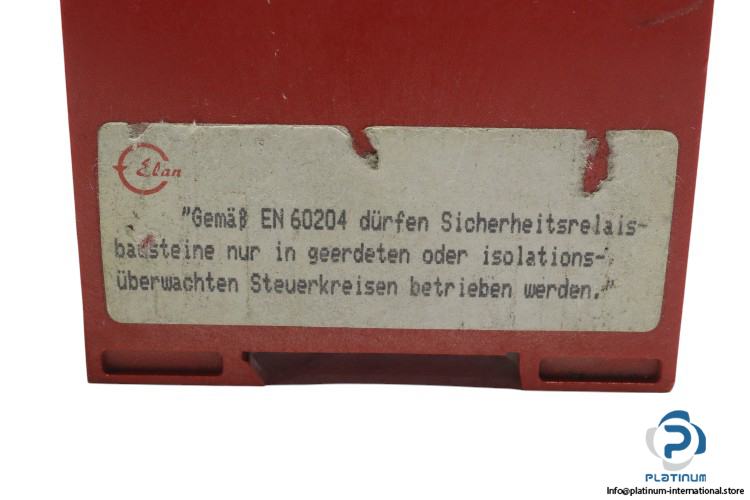

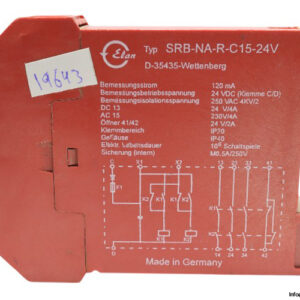

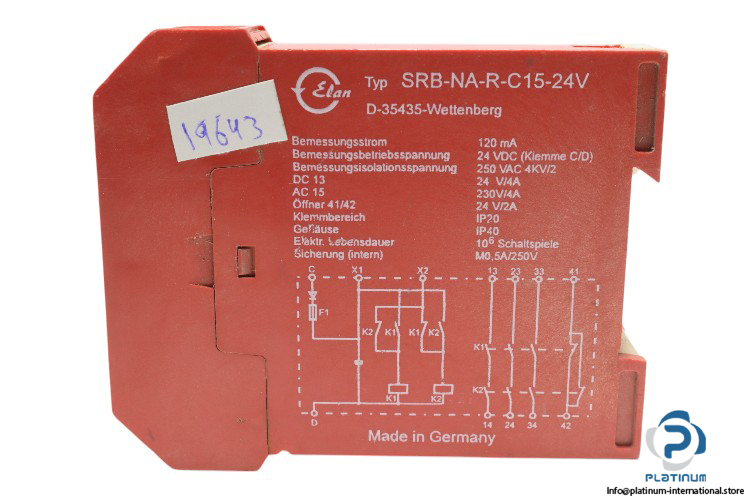

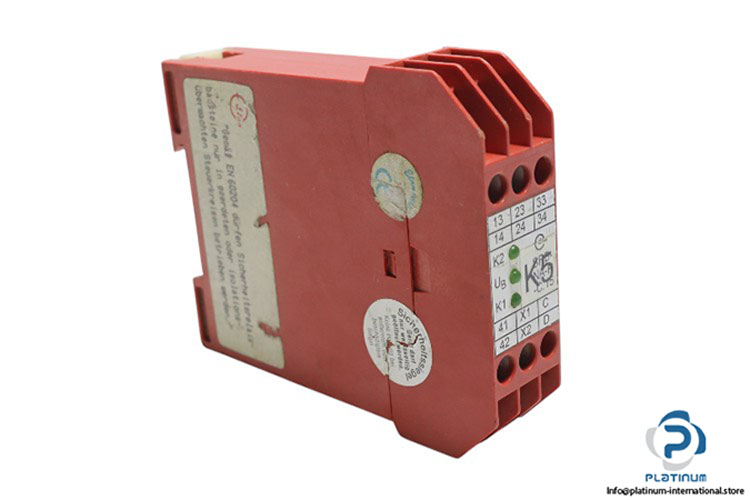

Elan/Schmersal SRB-NA-R-C15-24V Safety Relay
The Elan/Schmersal SRB-NA-R-C15-24V Safety Relay is a high-performance safety control device designed for industrial automation and machine safety applications. With reliable contact configurations, a 24V DC rated voltage, and robust protection, this relay ensures secure and efficient operation.
- Manufacturer: Elan/Schmersal
- Type: Safety Relay
- Model: SRB-NA-R-C15-24V
Technical Information
- Rated Voltage: 24 V DC
- Rated Current: 120 mA
- Power Consumption: Max. 2.4 W, 3.3 VA
- Rated Insulation Voltage: 250 V AC 4KV/2
- Contacts: 3 Normally Open, 1 Normally Closed
- Contacts Voltage and Current: 230 V / 4A
- Degree of Protection: IP20, IP40
- Ambient Operating Temperature: -25 to +45°C
