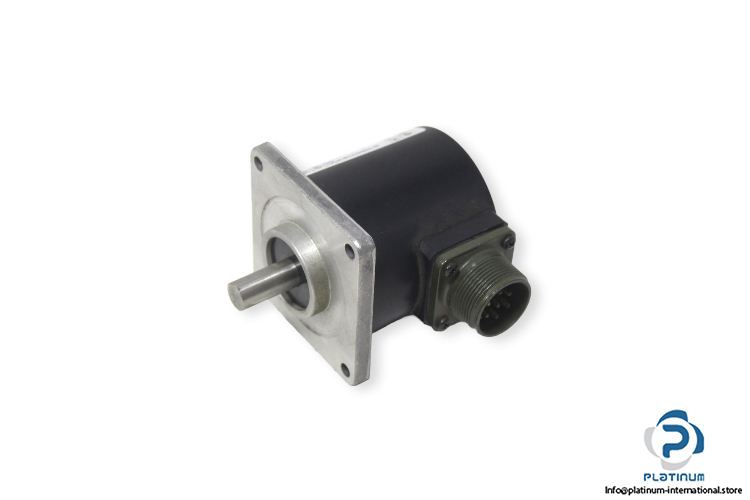

ELAP E620501024R10PP1 INCREMENTAL ROTARY ENCODER
The Elap E620501024R10PP1 is a high-precision incremental rotary encoder built for robust industrial environments. Engineered for reliability, it delivers accurate signal feedback with durable construction and a compact profile, suitable for automation and motion control systems.
Manufacturer: Elap
Type: Incremental Rotary Encoder
Model: E620501024R10PP1
Technical Information
- Supply Voltage: 10/24 V DC
- Body Diameter: 58 mm
- Flange: 63.5×63.5 mm
- Centering Mask Ø: 31.75 mm
- Shaft Diameter: 10 mm
- Pulses Per Revolution (PPR): 50
- Output Signals: Push-Pull

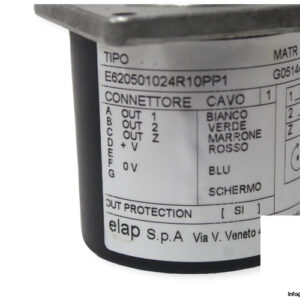

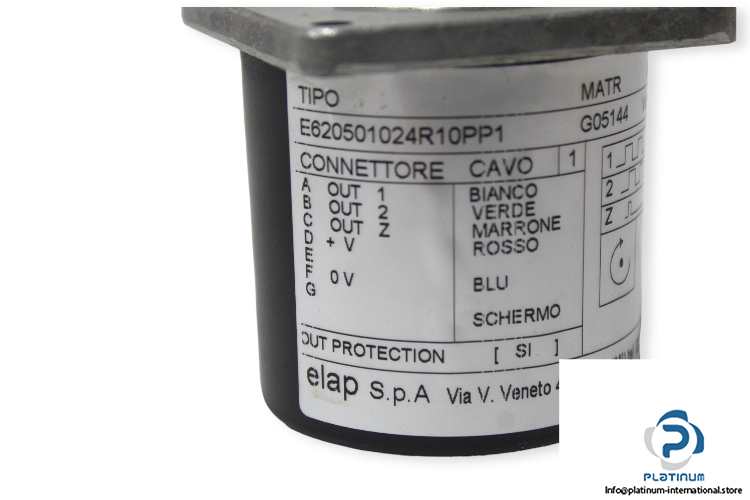

- Connections: Radial Connector, 7-Pin for Line Driver Output
- Operating Temperature: -10 / +70 °C
