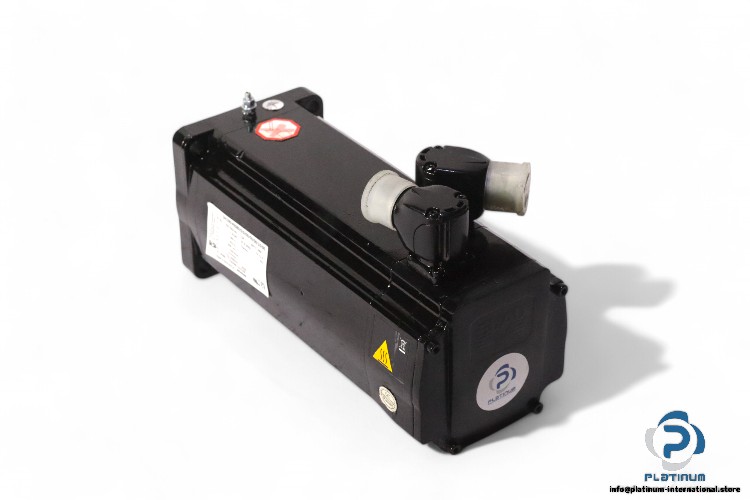

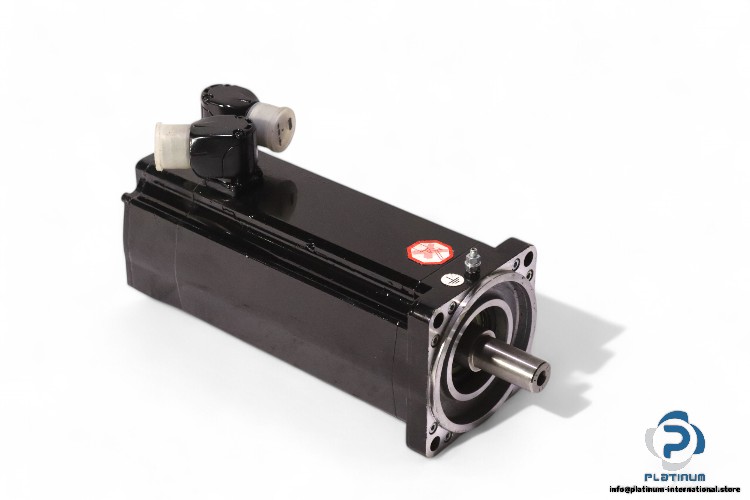

ELAU – Schneider Servo Motor SH100/40080/0/0/00/00/00/10/00

The ELAU – Schneider Servo Motor SH100/40080/0/0/00/00/00/10/00 offers exceptional precision and high performance for industrial automation systems. With high-speed capabilities and excellent torque output, it is an ideal choice for demanding applications requiring reliable motion control.

Manufacturer: ELAU – Schneider

Model: SH100/40080/0/0/00/00/00/10/00

ID No.: 65013302-001

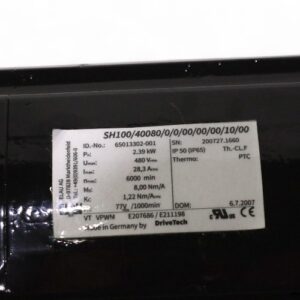

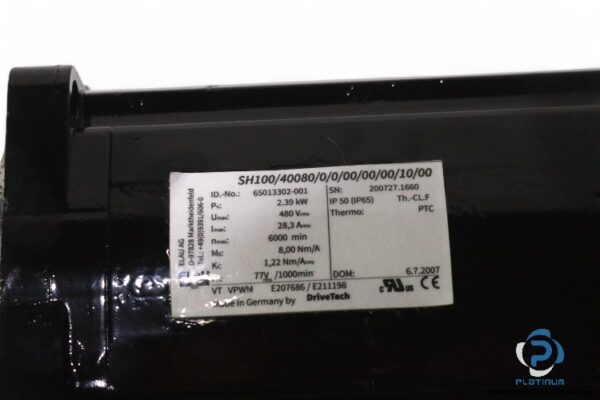

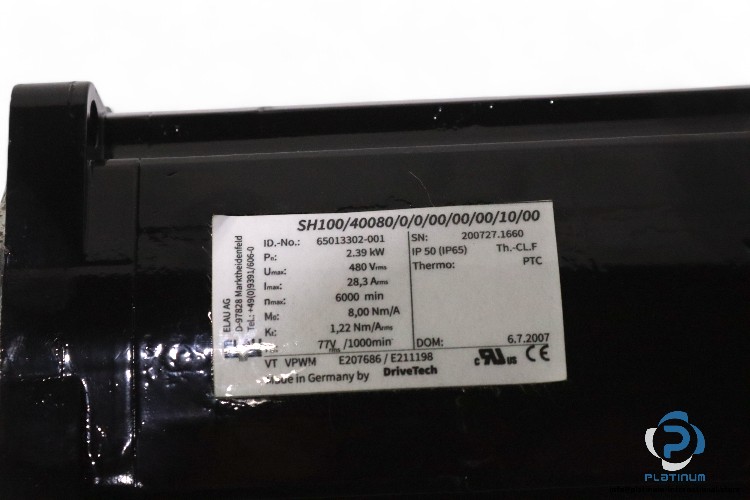

Technical Specifications

• Max. Voltage: 480 V rms
• Max. Current: 28.3 A rms
• Max. Speed: 6000 rpm
• Stall Torque: 8 Nm/A
• Rated Power: 2.39 kW
• Flange Size: 100 mm
• Torque Constant: 1.22 Nm/A
• Voltage Constant: 77 V/1000rpm
• Thermal Class: F
• Protection Class: IP50 (IP65)
