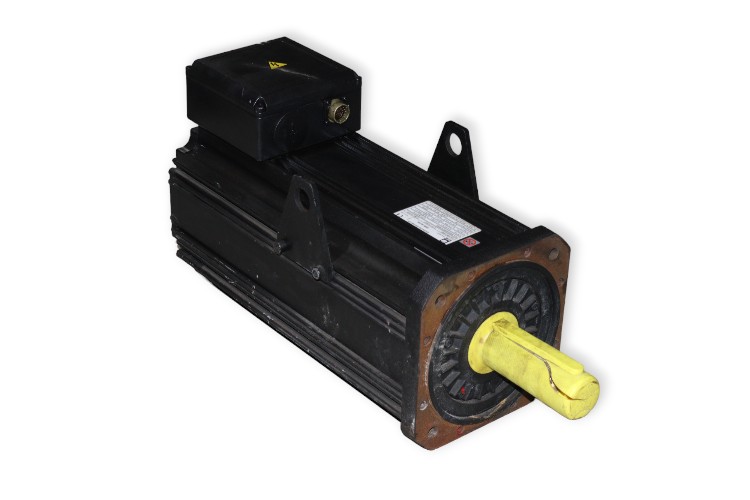

Siei SBM 84303 Brushless Servomotor

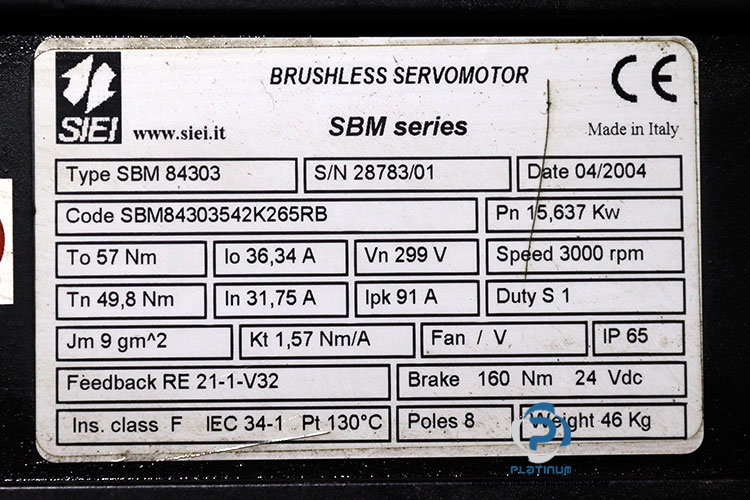

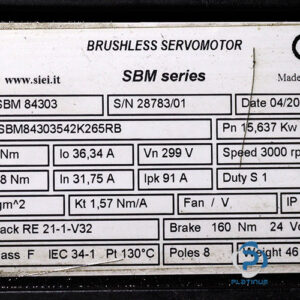

Manufacturer: SIEI
Type: Brushless Servo Motor
Model: SBM84303
Code: SBM84303542K265RB

Rated Current [A]: 31.75
Stall Current [A]: 36.34
Peak Current [A]: 91
Rated Voltage [V]: 299
Rated Power [Kw]: 15.637
Rated Speed [min^-1]: 3000
Stall Torque [Nm]: 57
Rated Torque [Nm]: 49.8
Constant Torque [Nm/A]: 1.57
Protection Class [IP]: 65
Thermal Class: F
Duty: S1
Pole: 8
Brake Voltage [Vdc]: 24
Brake Torque [Nm]: 160
