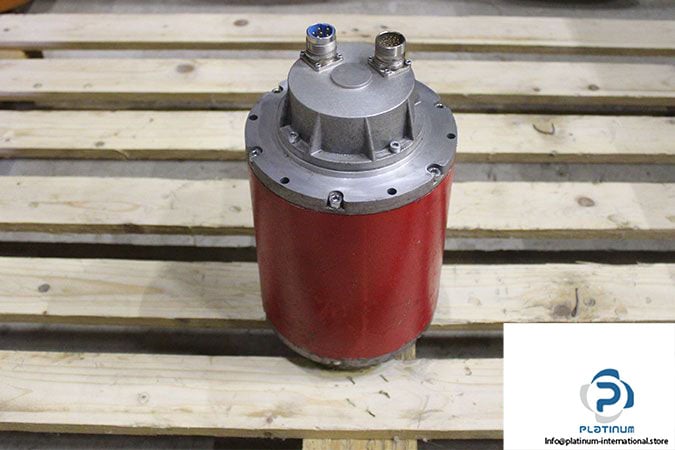

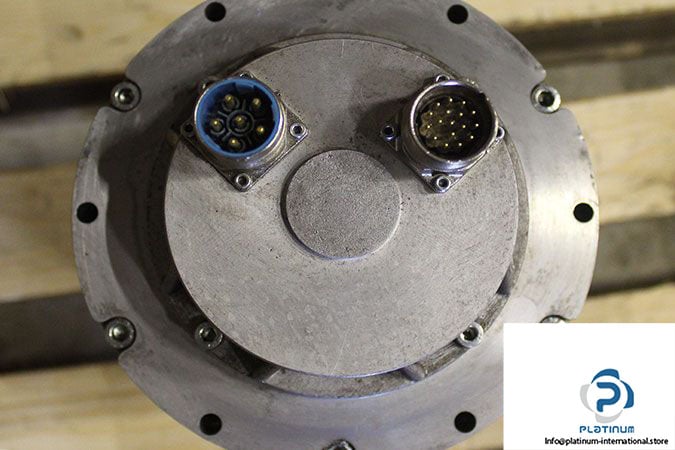

Motor Power SKA.DDR.PP.148.150.30.53.03.00.017 Direct Drive Servomotor

Manufacturer: Motor Power

Type: Direct Drive Servo Motor

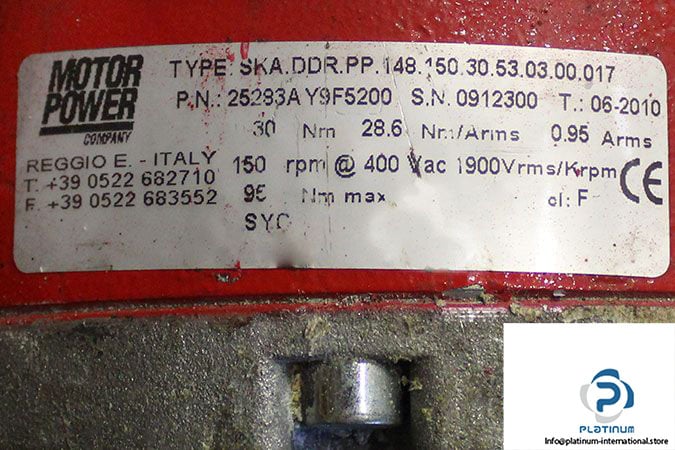

Model: SKA.DDR.PP.148.150.30.53.03.00.017

P.N.: 2583A Y9F5200

Size: 150

Poles: 14

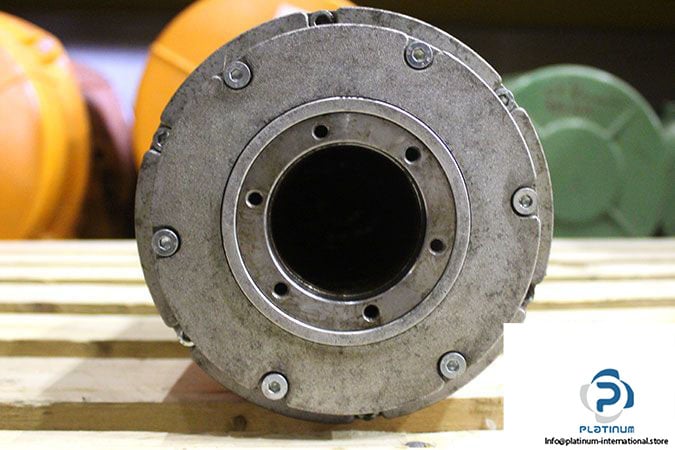

Shaft Design: Through Hollow Shaft

Stall Torque [Nm]: 30

Peak Torque [Nm]: 95

Stall Current [Arms]: 0.95

Peak Current [Arms]: 3.1

Maximum Speed @400 Vac 3phase [rpm]: 150

Torque Constant [Nm/Arms]: 30.6

Voltage Constant [Vrms/krpm]: 1900

Phase/Phase Resistance [Ohm]: 80

Phase/Phase Inductance [mH]: 420

Electrical Time Constant [msec]: 5.3

Thermal Resistance [°C/W]: 0.72

Time Rating: Continuous

Shaft Hollow [mm]: 56 Ø

Ambient Temperature [°C]: 0…+40

Insulation Class: F

Weight [kg]: 22.5
