Motor Power ESA 3S 2207 DC Servo Motor
Used
Available on request
350,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

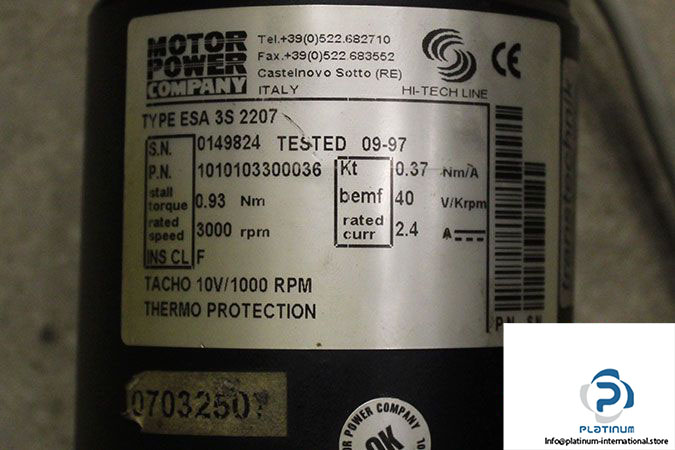

Manufacturer: Motor Power
Type: DC Servo Motor
Model: ESA3S2207
Part No: 1010103300036
Type of winding: 2
Voltage Constant [V/Krpm]: 40
Torque Constant [Nm/A]: 0.37
Max. Current [A]: 12
Stall Current [A]: 2.4
Peak Current [A]: 12
Max. Speed [min-1]: 4000
Rated Speed [min-1]: 3000
Max. Torque [Nm]: 4.65
Stall Torque [Nm]: 0.93
Peak torque [Nm]: 4.65
Rated Power [W]: 200
Protection Class [IP]: 54
Insulation Class: F
Weight [kg]: 4.55
