Motor Power T115.SR.7.E.L.14.101.A.18.101 Brushless Servo Motor
New
Available on request
450,00$
BRUSHLESS SERVO MOTOR
Motor Power T115.SR.7.E.L.14.101.A.18.101 from the Tetra series is a sinewave brushless servo motor with 7 Nm torque, low inertia, and 220 VAC operation”engineered for precision control in industrial automation.AutomationBrushlessEncoderFeedbackHighIndustrialInertiaIP65lowmotorPowerPrecisionSeriesServoT115.SR.7.E.L.14.101.A.18.101Tetra
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
MOTOR POWER T115.SR.7.E.L.14.101.A.18.101 TETRA BRUSHLESS SERVO MOTOR

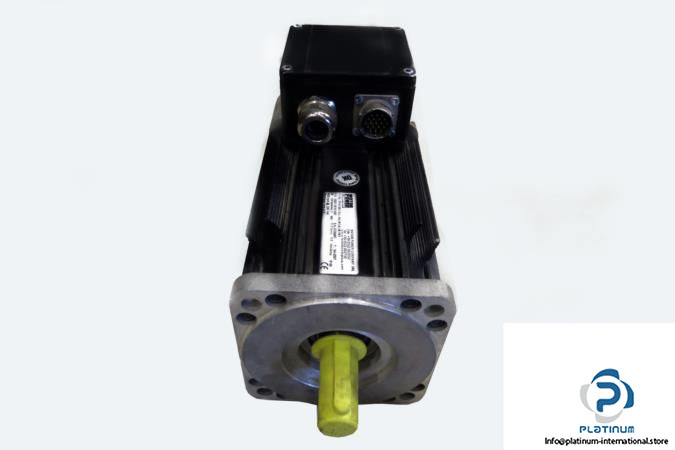

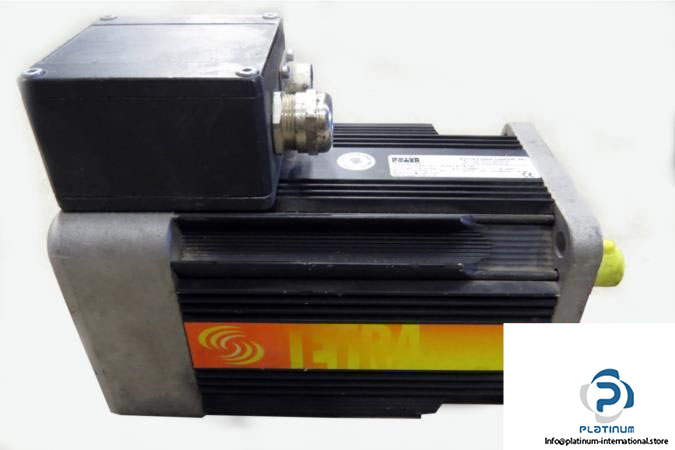

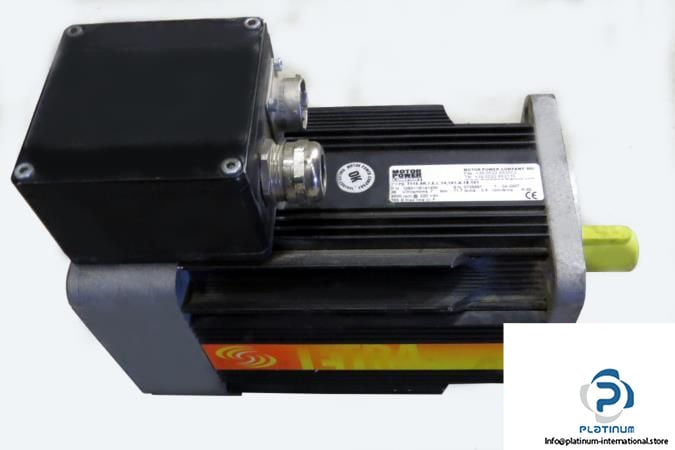

The T115.SR.7.E.L.14.101.A.18.101 from Motor Power is a high-performance Tetra series brushless servo motor designed for advanced automation systems. With its sinewave waveform and low moment of inertia, this model delivers precise motion control and efficiency, making it ideal for demanding industrial environments.

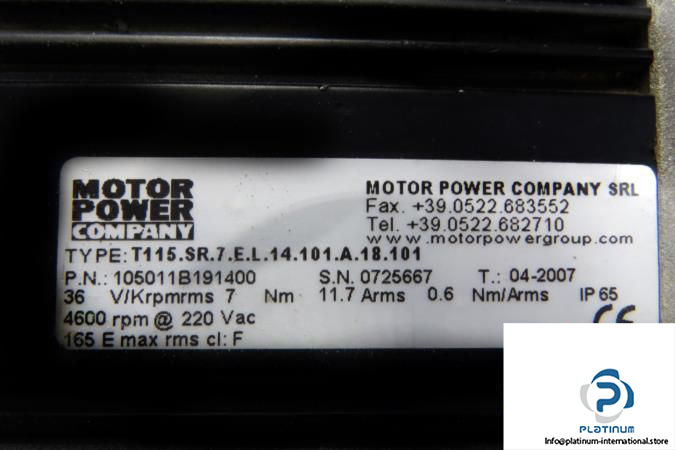

Manufacturer: Motor Power
Type: Tetra Brushless Servo Motor
Model: T115.SR.7.E.L.14.101.A.18.101
Part No.: 105011B191400
Serial No.: 0725667
Series: Tetra
| Waveform | Sinewave |
| Nominal Torque | 7 Nm |
| Voltage Constant | 36 V/kRPM RMS |
| Torque Constant | 0.6 Nm/A RMS |
| Nominal Current | 11.7 A |
| Moment of Inertia | Low |
| Transducer Type | Encoder |
| Transducer Model | Encoder Dia 48, 6p 2000 ppr |
| Speed | 4600 rpm |
| Voltage | 220 VAC |
| Poles Number | 6 |
| Operating Temperature | 0 / +40 °C |
| Protection Degree | IP65 |
