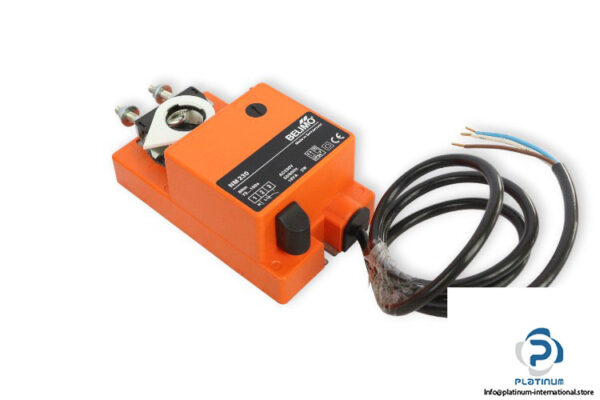

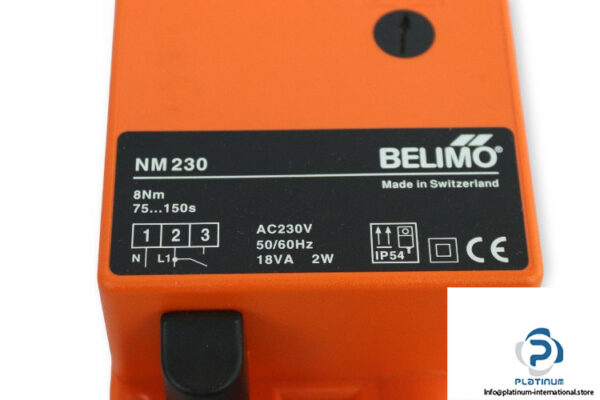

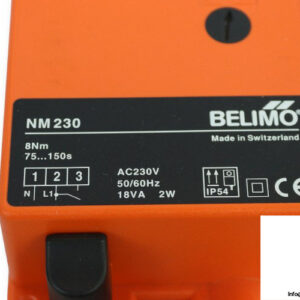

Manufacture: Belimo
Type: Damper actuator
Model: NM 230
Torque motor: 8 Nm
Nominal voltage: 230 V AC (198 … 264 V AC)
Nominal voltage frequency: 50/60 Hz
Power consumption In operation: 2 W
Power consumption for wire sizing: 18 VA

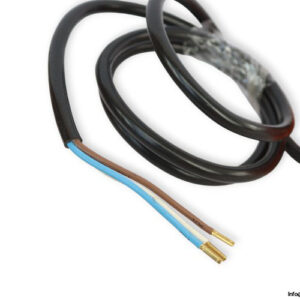

Connecting cable: 1 m long, 3 ×0.75 mm2
Direction of rotation: selected with L/R switch
Angle of rotation: max. 95°
Sound power level: max. 35 dB (A)
Running time motor: 75 … 150s
Degree of protection: IP 54
Ambient temperature: -20 … 50°C
Dimensions: 58 x 81 x 139 mm
