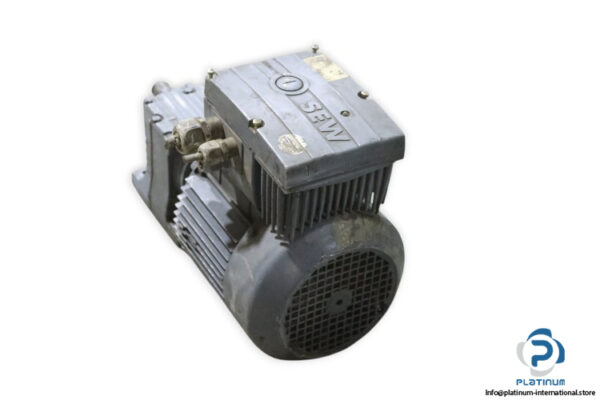

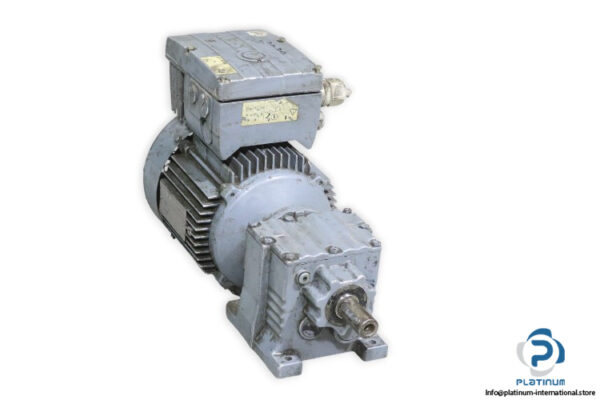

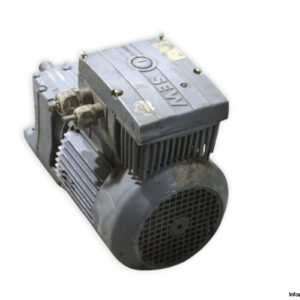

SEW R27 DT9034/MM15/BW1 Helical Gearmotor with Inverter Drive

The SEW R27 DT9034/MM15/BW1 is a robust helical gearmotor engineered for continuous-duty operation. Offering high torque, efficient performance, and reliable speed control, it is suitable for demanding industrial applications. This unit is paired with the SEW-EURODRIVE MM15B-503-00 inverter drive for optimized control and flexibility.

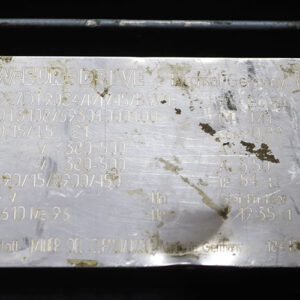

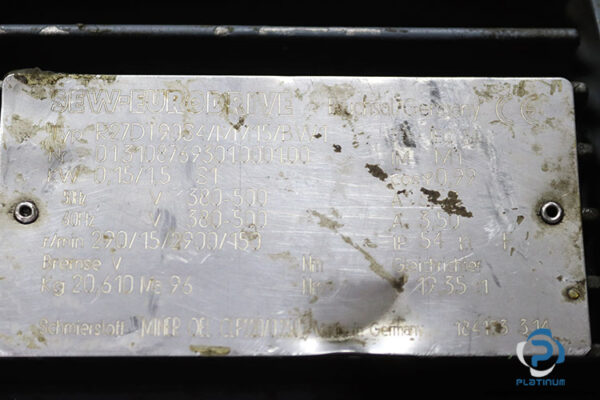

Manufacturer: SEW
Type: Helical Gearmotor
Model: R27 DT9034/MM15/BW1
Part No.: 013108739301000100

Technical information “ Gearmotor

• Ratio: 12.35
• Power (Pn): 0.15 / 15 kW
• Duty: S1 (continuous duty)
• Speed: 290 / 15 / 2900 / 150 rpm
• Voltage: 50 Hz: 380 to 500 V / 60 Hz: 380 to 500 V
• Current: 3.50 A
• Power Factor (Cos φ): 0.99
• Mounting: IM M1
• Class: F
• IP Rate: IP54
• Torque: 96 Nm

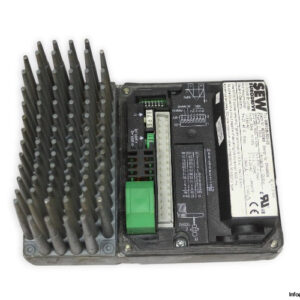

Technical information “ Inverter Drive

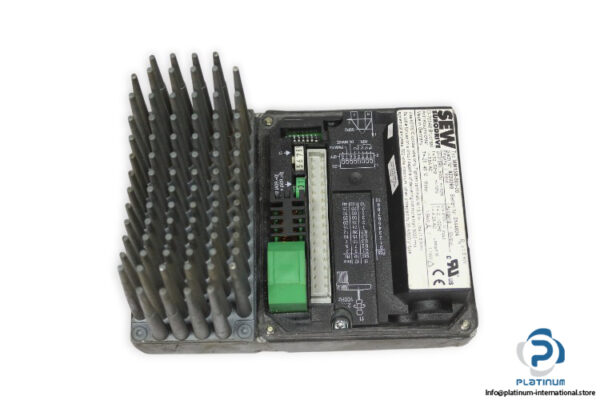

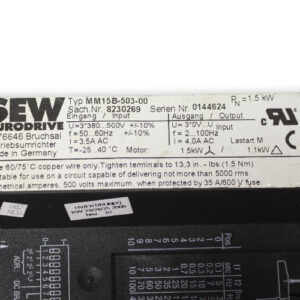

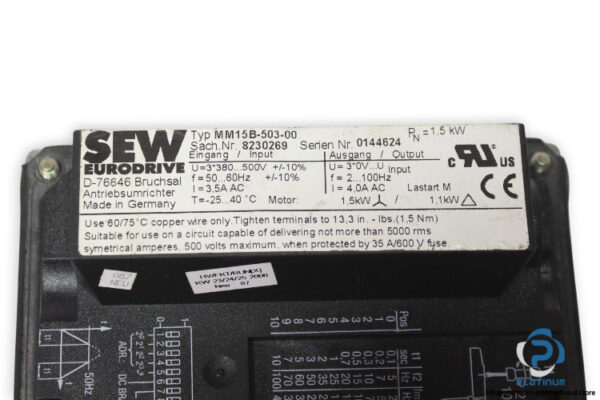

Attachment: SEW-EURODRIVE MM15B-503-00 Inverter Drive
Sach Nr.: 8230269
Serial Nr.: 0144624

• Rated Power (Pn): 1.5 kW
• Input: Voltage: 3 × 380 / 500 V ±10 %, Frequency: 50 / 60 Hz ±10 %, Current: 3.5 A AC
• Output: Voltage: 3 × 0 / U Netz (0 / supply voltage), Frequency: 2 / 100 Hz adjustable, Current: 4 A AC
• Motor Compatibility: 1.5 kW, 1.1 kW
• Operating Temperature: -25 °C to +40 °C
• Tighten Terminals To: 13.3 in-lbs (1.5 Nm)
