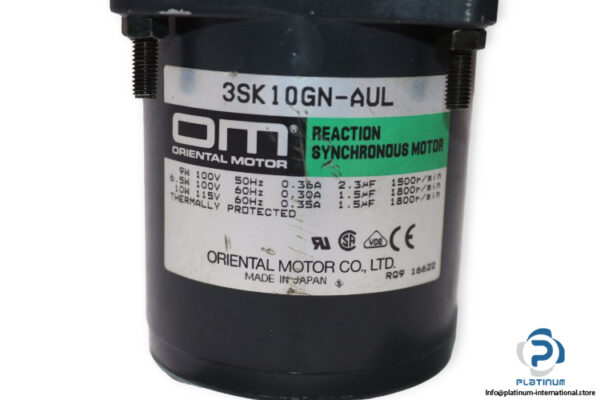

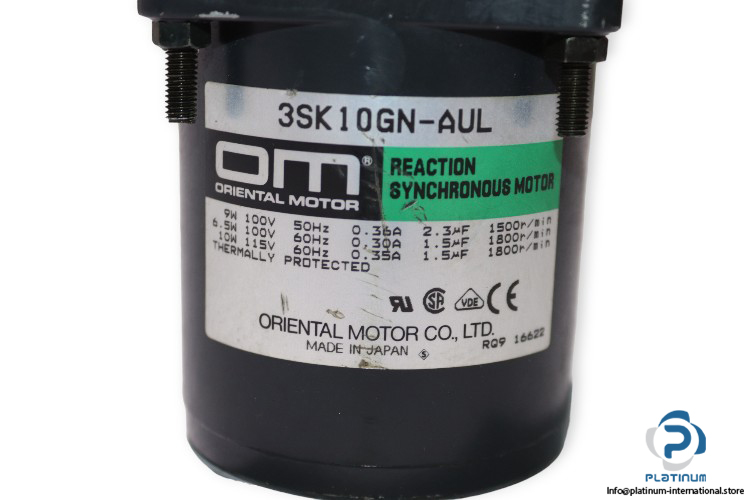

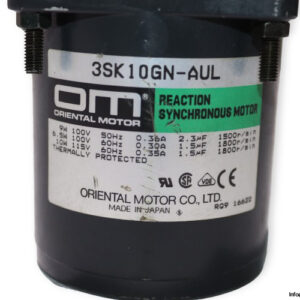

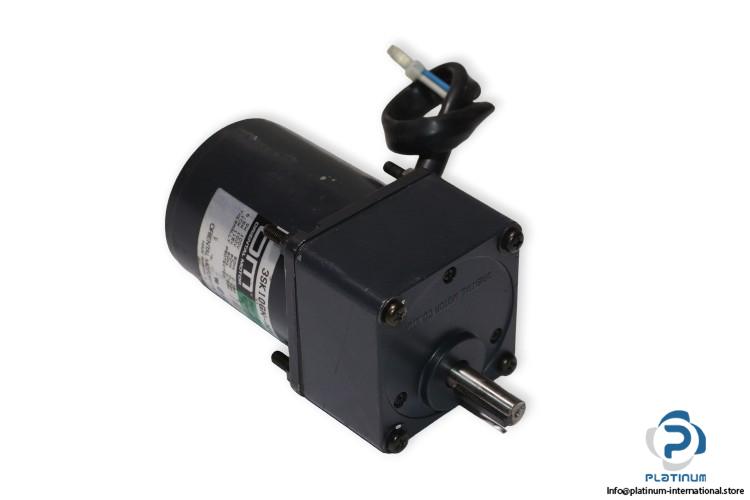

Oriental Motor 3SK10GN-AUL Synchronous Motor

Manufacturer: ORIENTAL MOTOR
Type: SYNCHRONOUS MOTOR
Model: 3SK10GN-AUL

Frame Size: 2.76 in
AT VOLTAGE 100
Power: 9/6.5 W
Current: 0.36/0.3 A
Speed: 1500/1800 r/min
Frequency: 50/60 Hz
Capacitor: 2.3/1.5 Μf

AT VOLTAGE 115
Power: 10 W
Current: 0.35 A
Speed: 1800 r/min
Frequency: 60 Hz
Capacitor: 1.5 μF
ATTACHMENT:

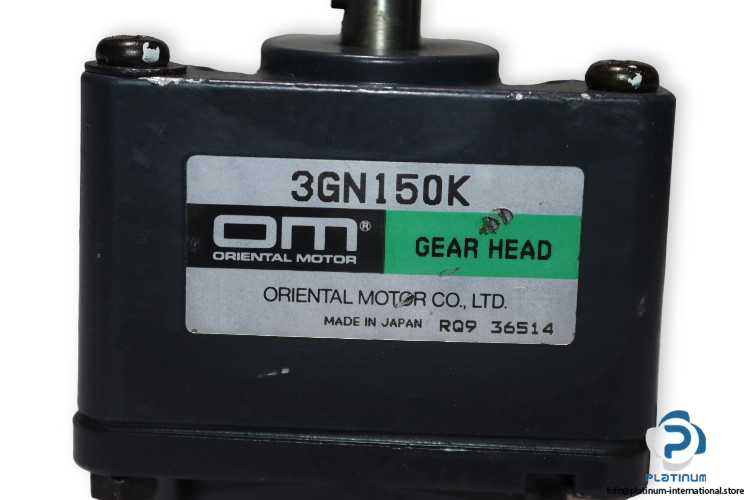

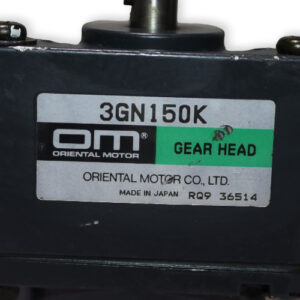

ORIENTAL MOTOR 3GN150K PARALLEL SHAFT GEARHEAD

Gear Head Model: 3GN150K
Shaft/Gear Type: Parallel Shaft Gearhead

Gear Ratio: 150 :1
Output Shaft Diameter: 10 mm
