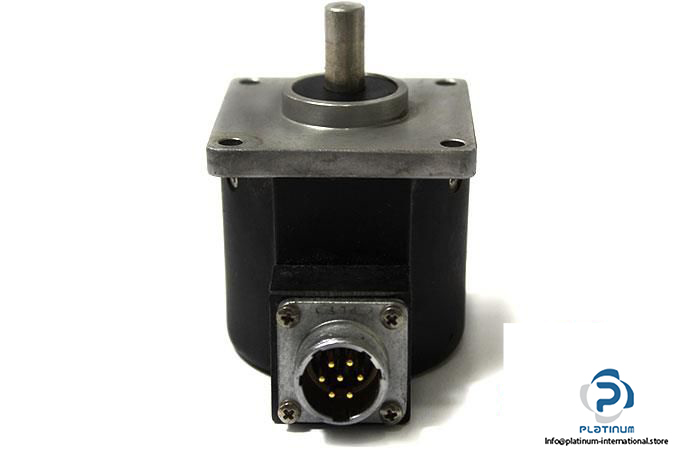

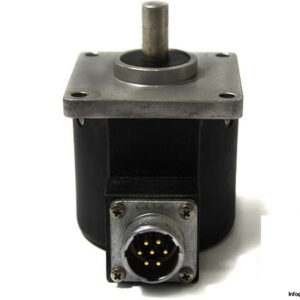

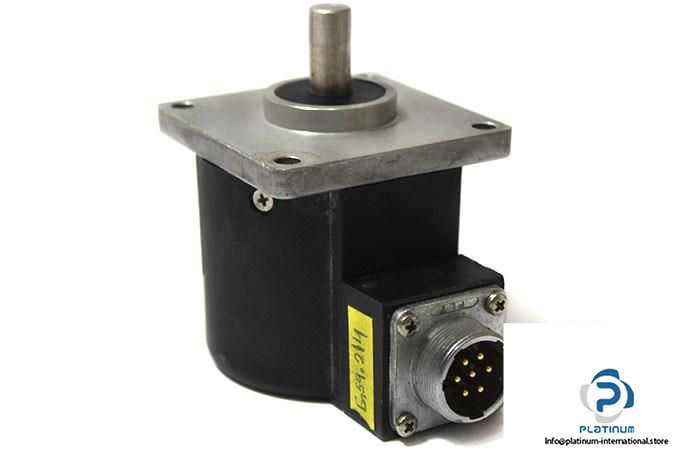

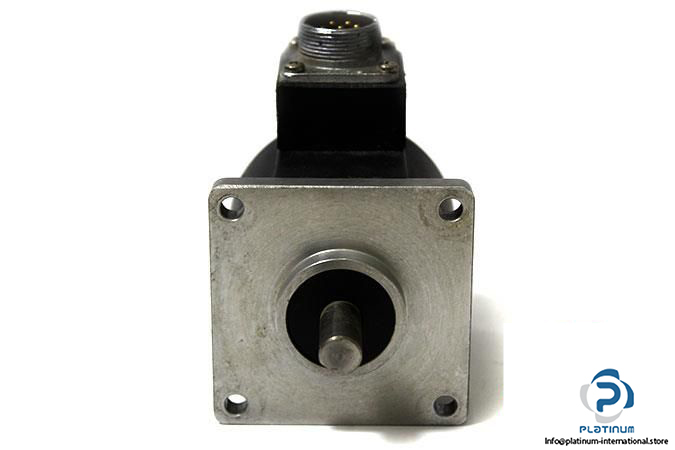

ELTRA EH63D.1B1000S12N10X3JR.537 INCREMENTAL ENCODER

The ELTRA EH63D.1B1000S12N10X3JR.537 is a high-performance incremental encoder designed for industrial applications requiring precise feedback and rotational speed control. With its robust 63 mm body, 1000 PPR resolution, and NPN open collector output, it ensures reliable operation under varying environmental conditions.

Manufacturer: ELTRA
Type: Incremental Encoder

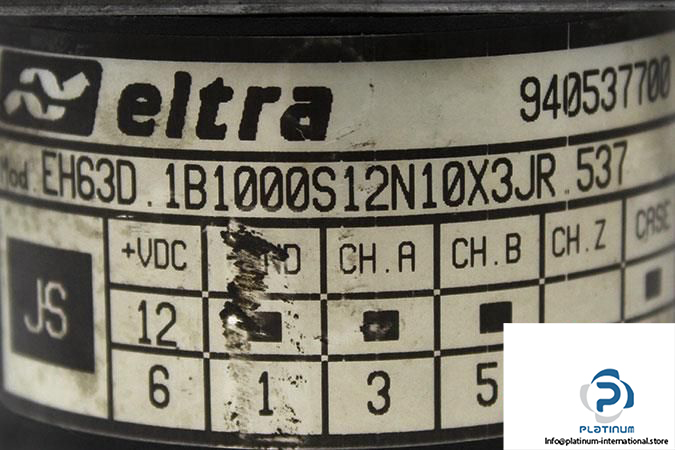

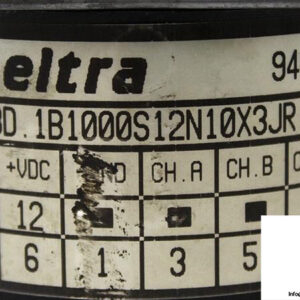

Model: EH63D.1B1000S12N10X3JR.537
Part No.: 940537700
Version: 537

Technical Information

• Shaft Diameter: 10 mm
• Body Dimension: 63 mm
• Resolution: 1000 Pulses per Revolution (PPR)
• Output Types: NPN
• Voltage Supply: 12 VDC
• Output Frequency: 0 / 100 kHz
• Output Circuits: Open Collector NPN
• Max Rotation Speed: 3000 rpm
• Connection Type: Connector JMSP 1607 F or 1610 F
• Protection Class: IP54
• Temperature Range: 0 / 60 °C
