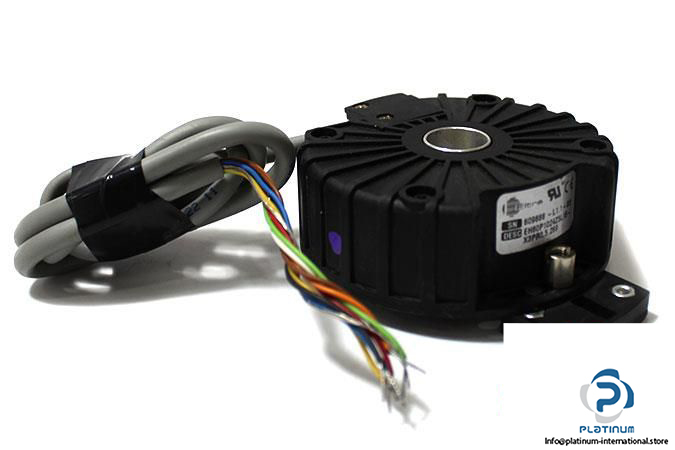

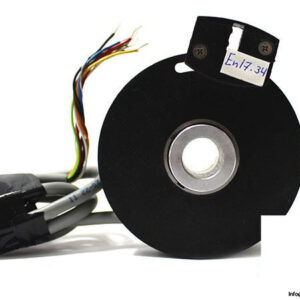

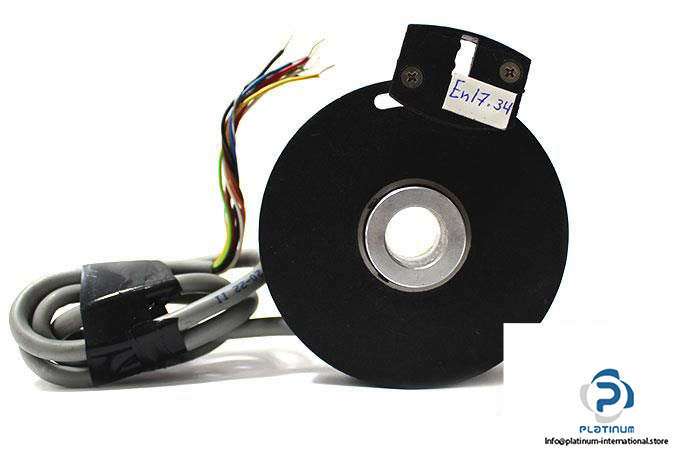

ELTRA EH80P1024Z5L15-X3PR0 INCREMENTAL ENCODER
The Eltra EH80P series is a high-performance incremental encoder designed for demanding industrial automation systems. With its 15 mm through hollow shaft, 1024 PPR resolution, and line driver output, it provides precise positioning and reliable signal transmission even in harsh environments.
Manufacturer: ELTRA
Type: Incremental Encoder

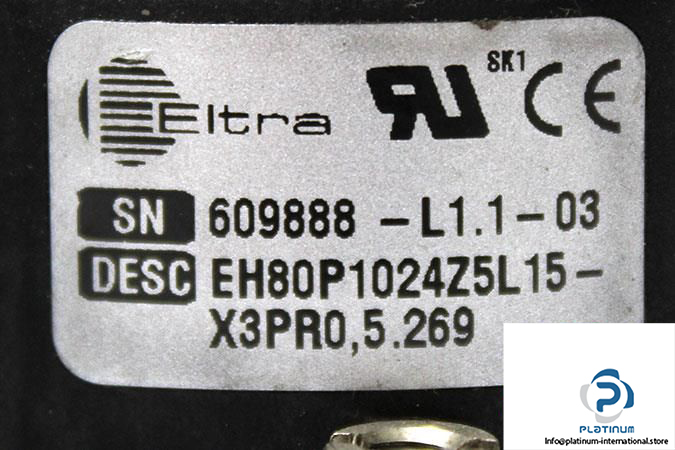

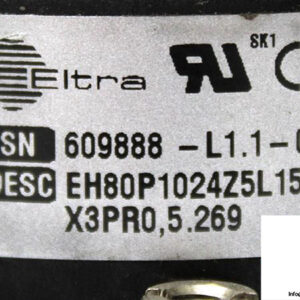

Model: EH80P1024Z5L15-X3PR0, 5.269
Serial No.: 609888-L1.1-03
Technical Information
- Shaft Type: Through Hollow Shaft
- Shaft Diameter: 15 mm
- Resolution: 1024 Pulse per Revolution (PPR)
- Voltage Supply: 5 VDC
- Max Frequency: 105 kHz
- Output Circuits: Line Driver
- Max Rotation Speed: 3000 rpm
- Connection Type: Radial Cable Output
- Protection Class: IP54
- Operating Temperature: -20 / 100°C
