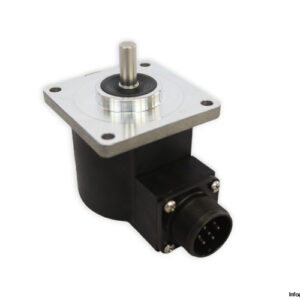

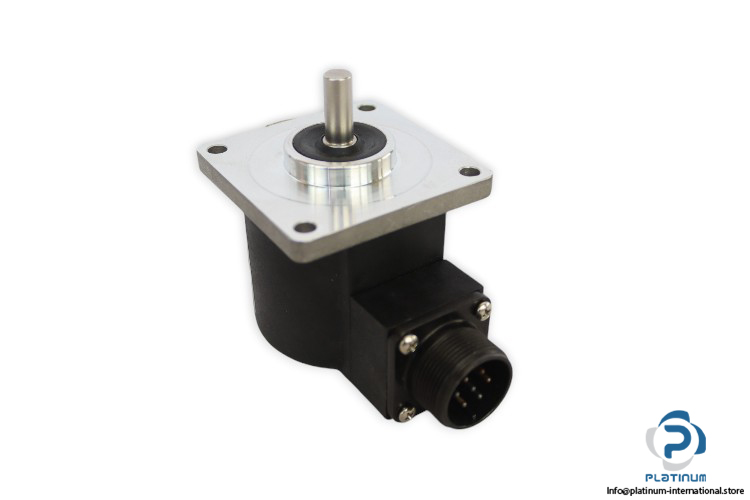

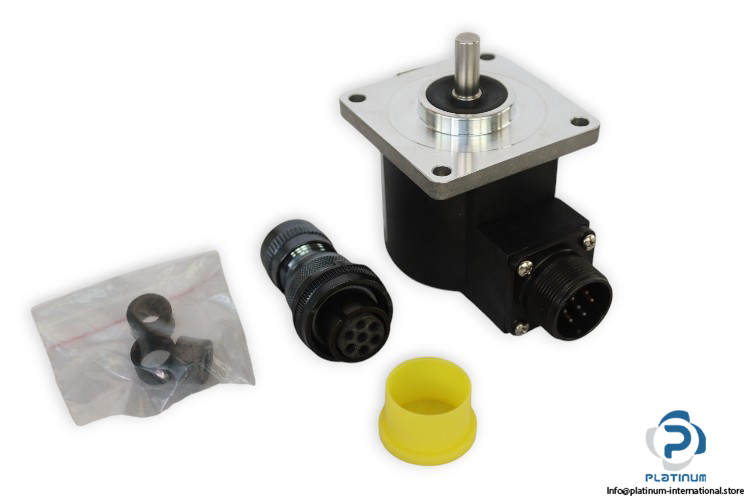

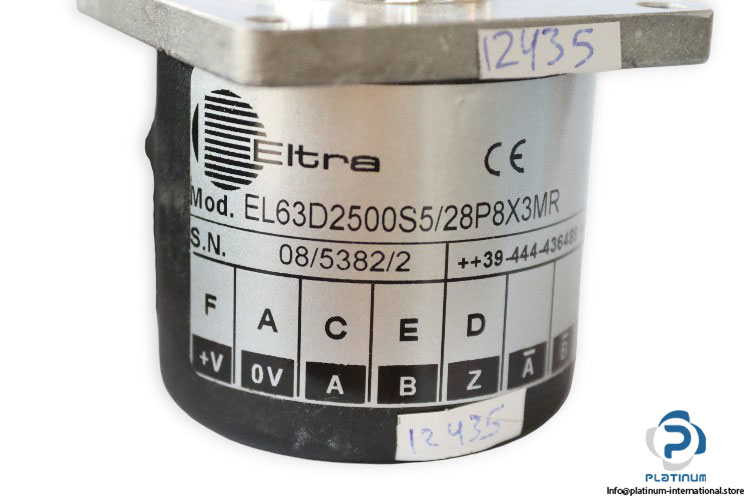

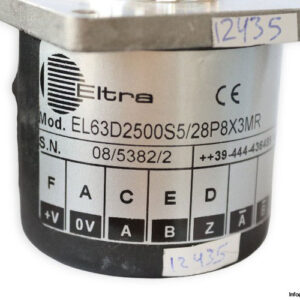

ELTRA EL63D2500S5/28P8X3MR INCREMENTAL ENCODER

The ELTRA EL63D2500S5/28P8X3MR is a precision incremental rotary encoder designed for industrial motion control systems. Engineered with high-resolution output and durable IP54-rated construction, it ensures reliable performance in demanding environments. Ideal for positioning and speed detection applications.

Manufacturer: ELTRA
Type: Incremental Encoder

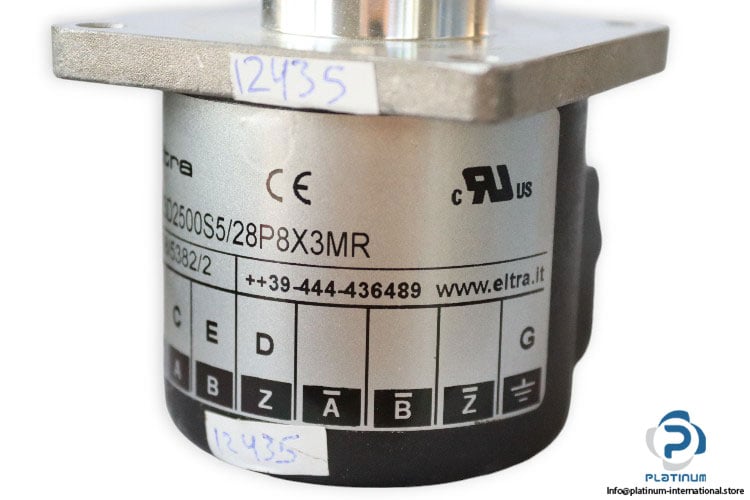

Model: EL63D2500S5/28P8X3MR
Serial No.: 08/5382/2

Technical Information

• Power Supply: 5 / 28 V DC
• Principle of Operation: Incremental
• Shaft Type: Solid Shaft
• Mounting Type: Centering Square Flange
• Electronic Interface: Push Pull
• Resolution: 2500 PPR
• Shaft Diameter: 8 mm
• Enclosure Rating: IP54
• Max Rotation Speed: 3000 rpm

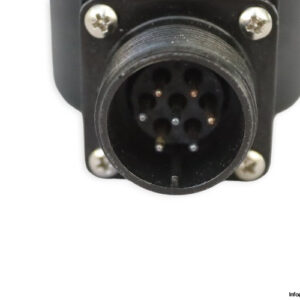

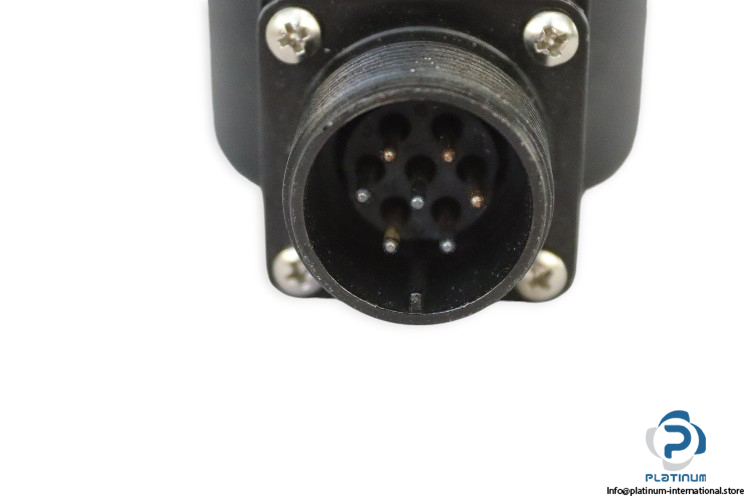

• Output Type: MIL Connector (7 Pins)
• Direction Type: Radial
• Construction Size (Diameter): 63 mm
• Max Output Frequency: 250 kHz
• Measurement Type: Rotary
• Type of Sensor: Optical
• Operating Temperature: -10 / +60°C
