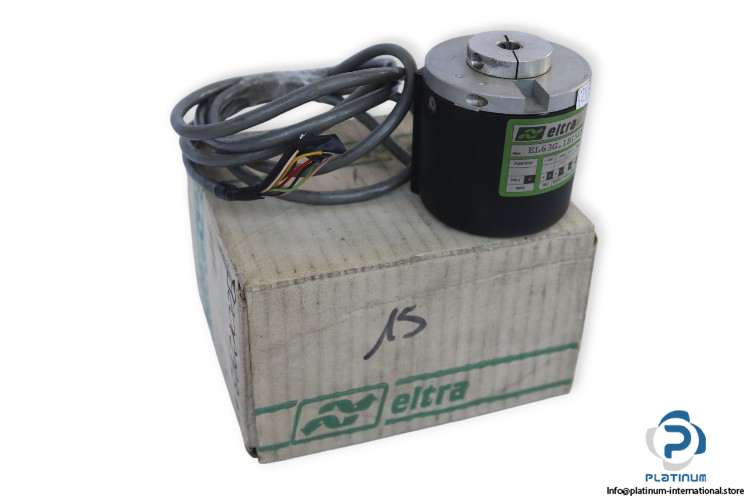

ELTRA EL63G1B15Z5L8X6PR INCREMENTAL ENCODER

The ELTRA EL63G1B15Z5L8X6PR incremental encoder is engineered for precision motion feedback in automated and industrial applications. Featuring a compact body, high rotational speed capability, and robust stainless-steel shaft, it ensures accurate positioning and reliable signal output in challenging environments.

Manufacturer: ELTRA
Type: Incremental Encoder

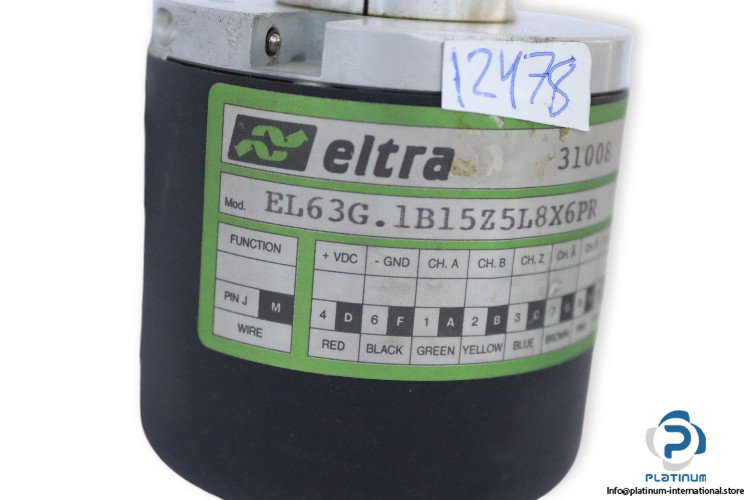

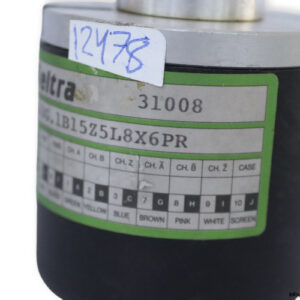

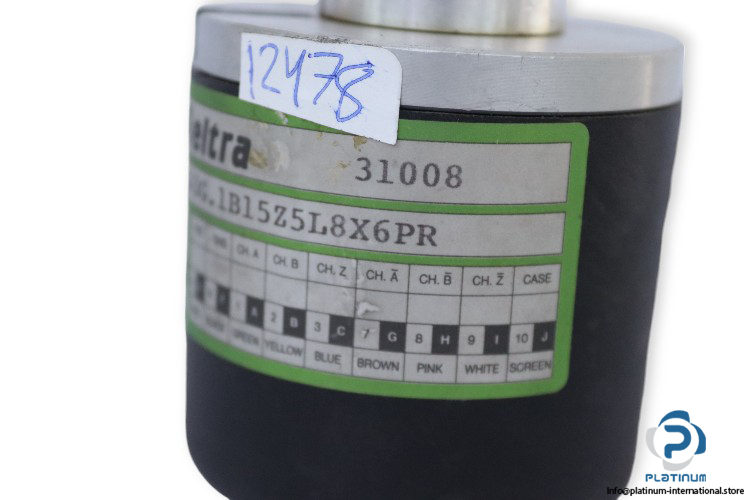

Model: EL63G1B15Z5L8X6PR
REF NO: 31008

Technical Information

• Power Supply: 5 V DC
• Input Current (No Output Load): 100 mA Max
• Principle of Operation: Incremental
• Shaft Type: Hollow Shaft
• Frequency Response: 300 KHz
• Resolution: 15 ppr
• Bore Diameter: 8 mm
• Max Rotation Speed: 6000 rpm
• Output Type: Cable
• Body Size: 63 mm
• Shaft Material: Stainless Steel AISI303
• Body Material: Aluminum UNI 5076
• Operating Temperature: 0 / +60°C
• Enclosure Rating: IP54 Standard
