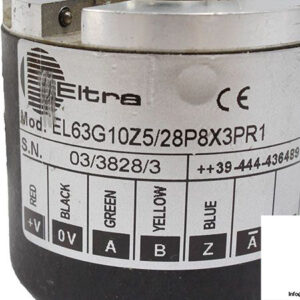

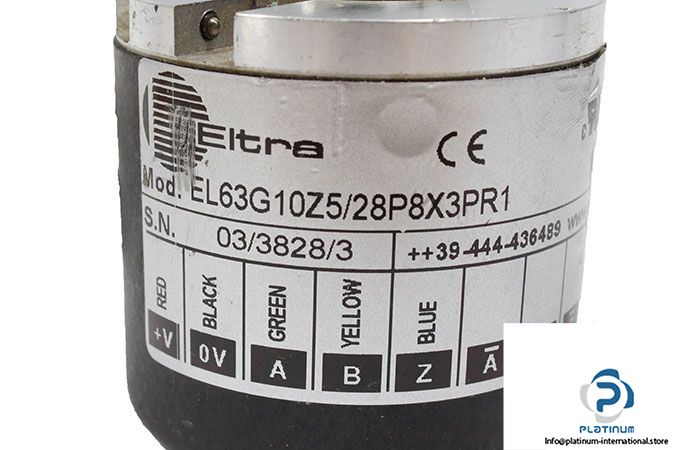

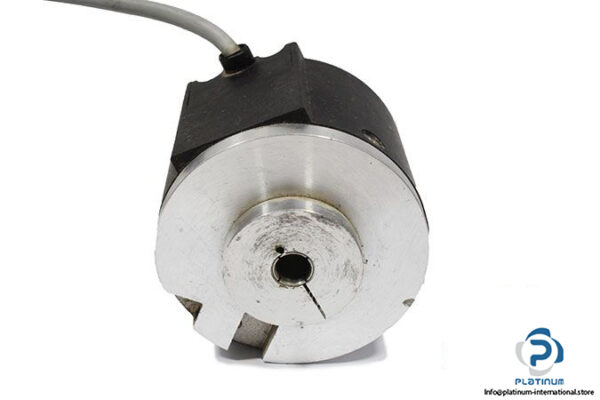

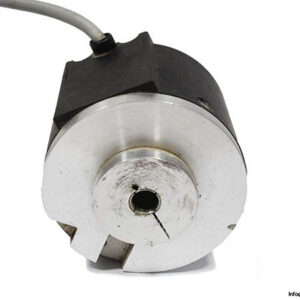

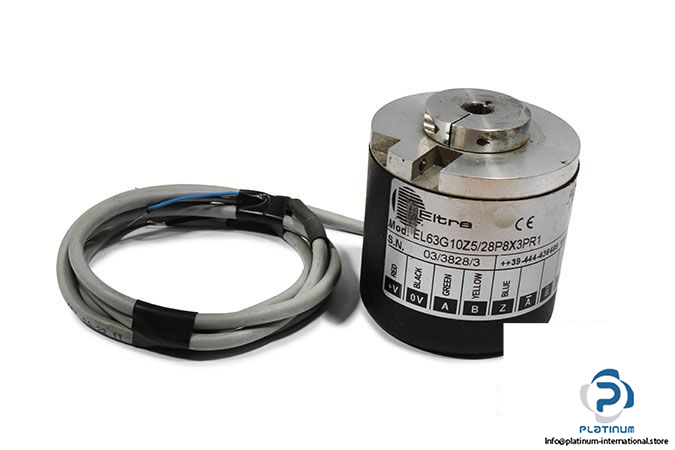

ELTRA EL63G10Z5/28P8X3PR1 INCREMENTAL ENCODER

The ELTRA EL63G10Z5/28P8X3PR1 is a high-precision incremental encoder designed for rotary measurement applications in industrial automation. Built with a robust construction and reliable optical sensing, this encoder ensures accurate signal output and dependable operation even in demanding environments.

Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63G10Z5/28P8X3PR1
Serial No.: 03/3828/3

Technical Information

• Shaft Type: Blind Hollow Shaft
• Mounting Type: Torque Pin
• Electronic Interface: Push Pull
• Resolution: 10 PPR
• Power Supply: 5 / 28 VDC
• Bore Diameter: 8 mm
• Enclosure Rating: IP54
• Max Rotation Speed: 3000 RPM
• Output Type: Cable
• Direction Type: Radial
• Construction Size: 63.5 mm
• Measurement Type: Rotary
• Type of Sensor: Optical
• Operating Temperature: 0 / +60 °C
