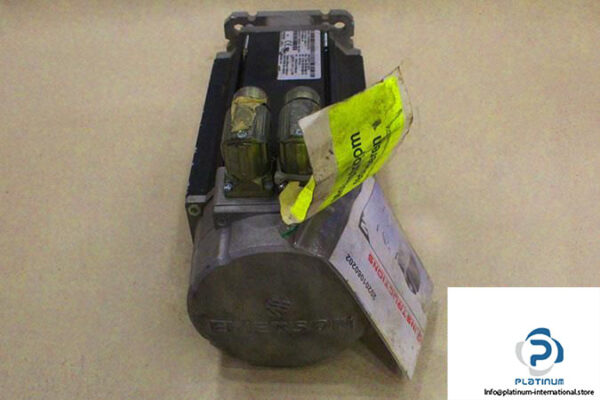

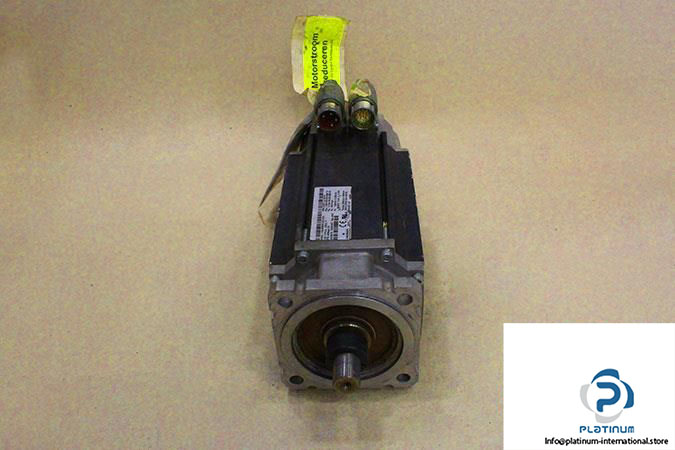

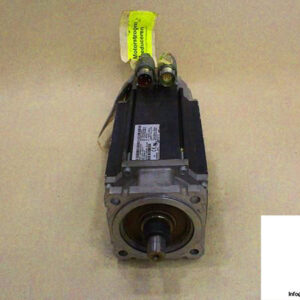

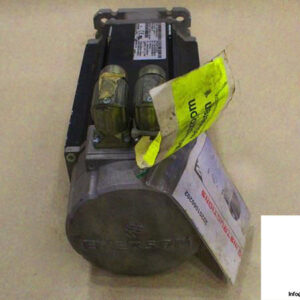

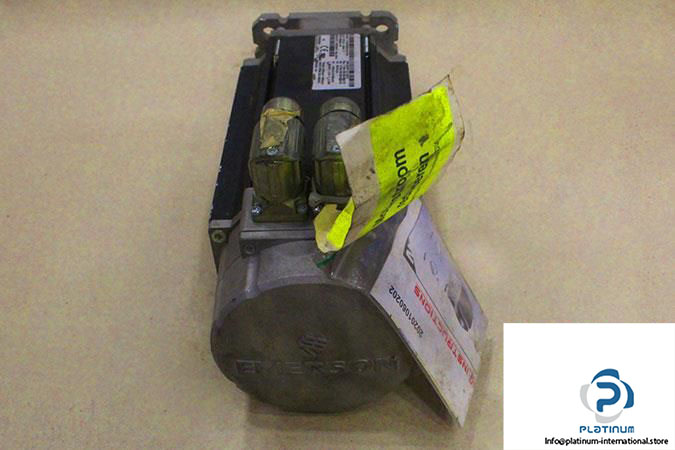

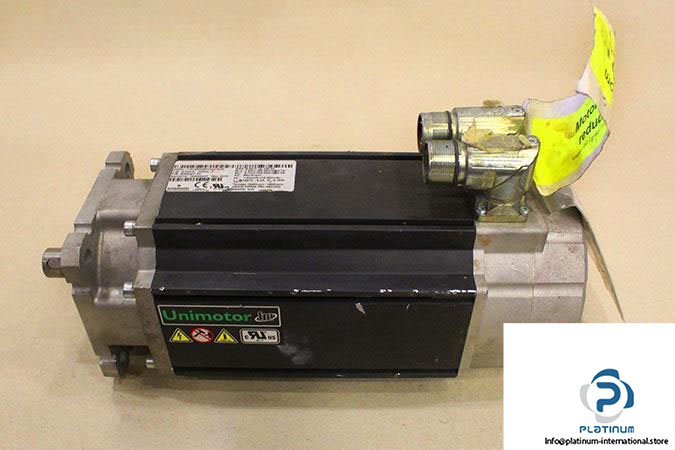

EMERSON UNIMOTOR SERVO MOTOR “ MODEL 115U3B300BFCAA115190

The Emerson Unimotor is a high-performance servo motor engineered for demanding automation and motion control applications. With its precise positioning, rugged design, and advanced torque handling, this servo motor delivers reliable performance in industrial environments.

Manufacturer: Emerson
Type: Unimotor Servo Motor

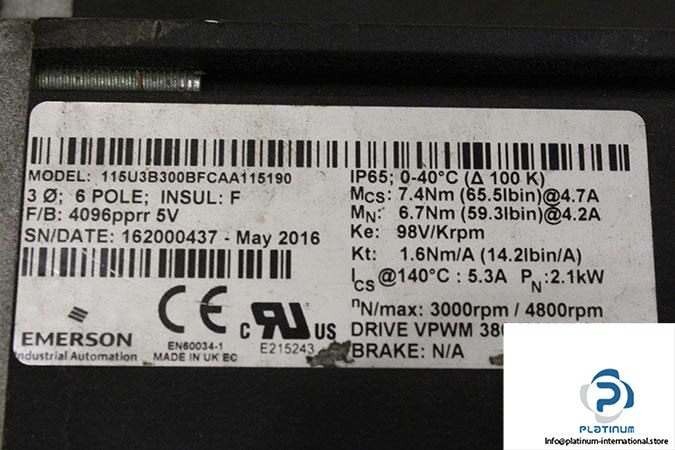

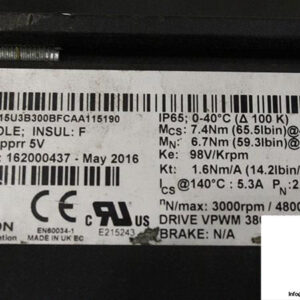

Model: 115U3B300BFCAA115190
Serial No.: 162000437

Technical Information

• Voltage: 460 V AC / 480 V DC
• Frame Size: 115 mm
• Rated Power: 2.1 kW
• Rated Torque: 6.7 Nm at 4.2 A
• Stall Torque: 7.4 Nm at 4.7 A
• Stall Current: 5.3 A
• Rated Speed: 3000 rpm
• Maximum Speed: 4800 rpm
• Voltage Constant: 98 V/kRPM
• Torque Constant: 1.6 Nm/A
• Temperature Range: 0 / 40°C
• Insulation Class: F
• Protection: IP65
• Steps: 4096 pprr 5V
