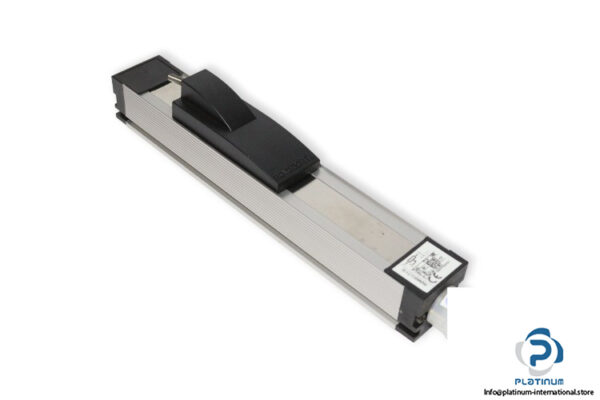

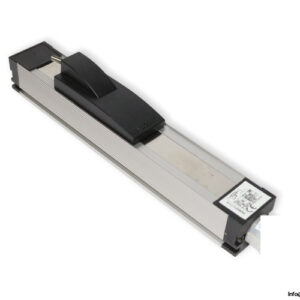

NOVOtechnik TLH100 Position Transducer Potentiometric

The NOVOtechnik TLH100 is a high-precision potentiometric position transducer designed for industrial applications. Featuring a robust anodized aluminum housing and a 102 mm electrical stroke, this transducer offers excellent linearity, repeatability, and a wide operational temperature range, ensuring reliable performance in demanding conditions.

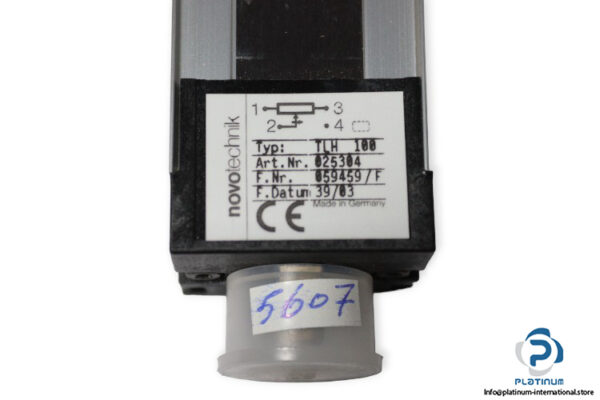

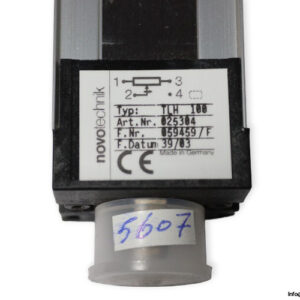

Manufacturer: NOVOtechnik

Type: Position Transducers Potentiometric

Model: TLH100

Part No.: 025304

F.No.: 059459/F

39/03

Technical Data:

• Housing Material: Aluminium, Anodized
• Operating Supply Voltage: 42 V
• Resistance: 3 Kohm
• Electrical Stroke: 102 mm
• Resistance Tolerance: 20 ±%
• Independent Linearity: 0.1 ±%
• Repeatability: 0.01 mm
• Maximum Wiper Current: 10 mA
• Operating Temperature: -30 to 100 °C
