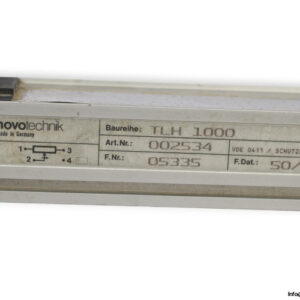

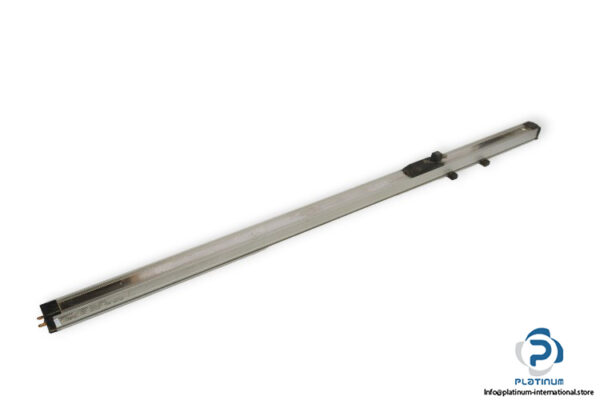

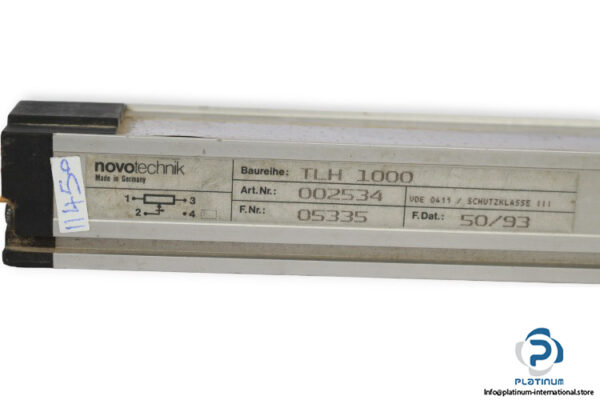

NOVOtechnik TLH 1000 Position Transducer Potentiometric

The NOVOtechnik TLH 1000 is a high-precision potentiometric position transducer designed for accurate measurement and control in industrial applications. Featuring a robust aluminium anodized housing and a wide operating temperature range, this transducer ensures reliable performance in demanding environments.

Manufacturer: NOVOtechnik

Type: Position Transducers Potentiometric

Model: TLH 1000

Part No.: 002534 / 05335

Technical Data:

• Housing Material: Aluminium, Anodized
• Operating Supply Voltage: 42 V
• Resistance: 10 kΩ
• Defined Electrical Range: 1000 mm
• Electrical Stroke: 1016 mm

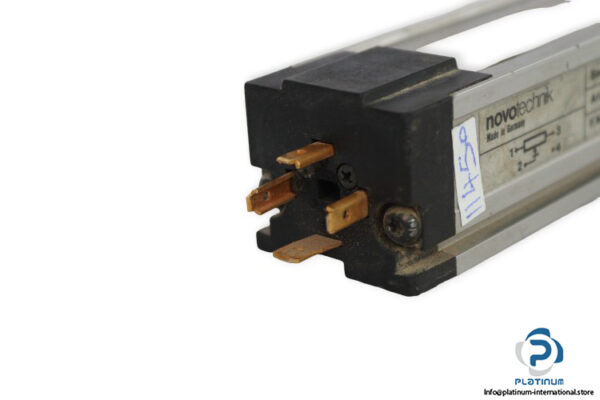

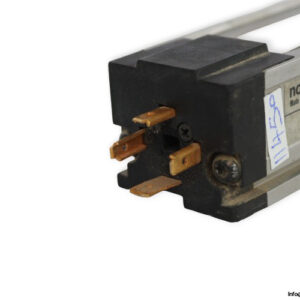

• Connector: 4-Pole
• Protection: IP 40
• Operation Temperature: -30 / 100 °C
