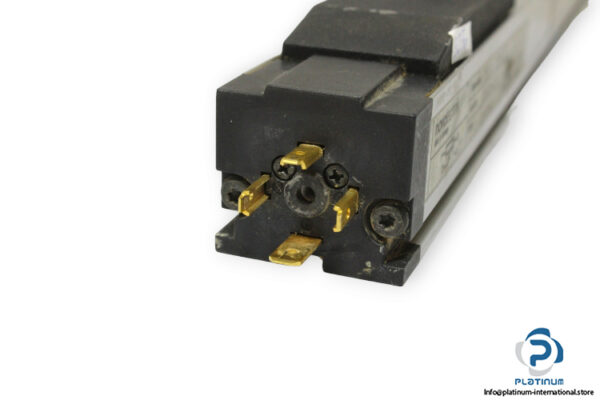

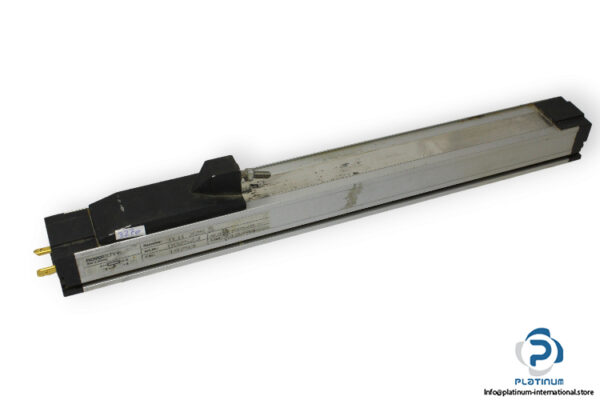

Novotechnik TLH 225 Position Transducer Potentiometric
The **Novotechnik TLH 225** is a highly accurate potentiometric position transducer designed for industrial applications. Featuring an anodized aluminium housing, it ensures robust protection and durability. With a defined electrical range of 225 mm and independent linearity of 0.07%, this transducer provides exceptional performance across a wide temperature range of -30 to 100°C.
Manufacturer: Novotechnik
Type: Position Transducers Potentiometric
Model: TLH 225

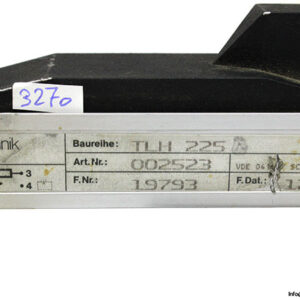

Part No: 002523
Ref No: 19793
Technical Data:
- Housing Material: Aluminium, Anodized
- Nominal Resistance: 5 Ω
- Defined Electrical Range: 225 mm
- Electrical Stroke: 228 mm
- Independent Linearity: 0.07%
- Recommended Operating Wiper Current: < 1 mA
- Maximum Permissible Applied Voltage: 42 V
- Temperature Range: -30 / 100 °C
- Protection Class: IP40
