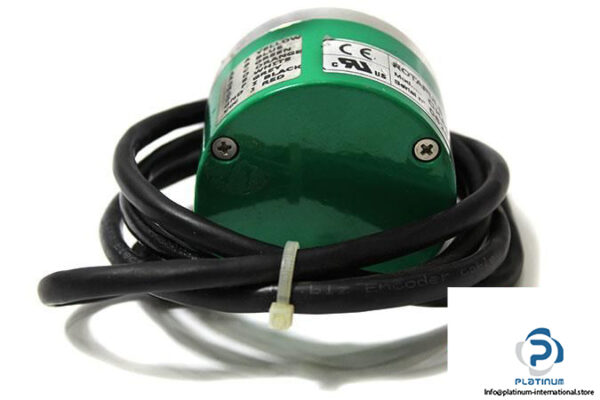

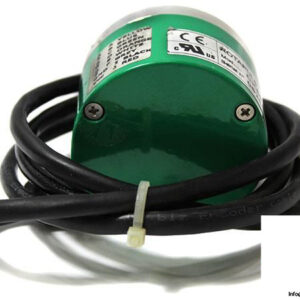

LIKA CK58-H-1000ZCU415R INCREMENTAL ENCODER
The LIKA CK58-H-1000ZCU415R is a high-precision incremental encoder with a hollow shaft design, ideal for industrial automation and motion control systems. It delivers reliable signal output and high resolution in a compact form factor suitable for harsh environments.
Manufacturer: LIKA
Type: Incremental Encoder

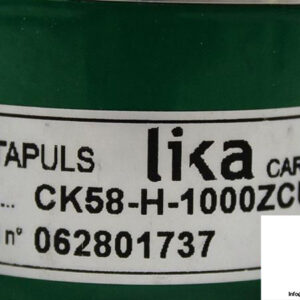

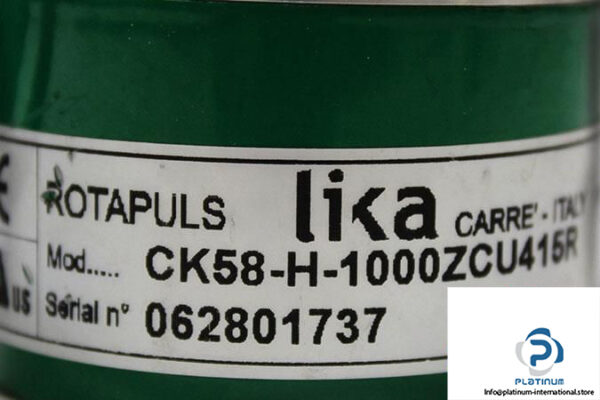

Model: CK58-H-1000ZCU415R
Serial No.: 062801737
Technical Information

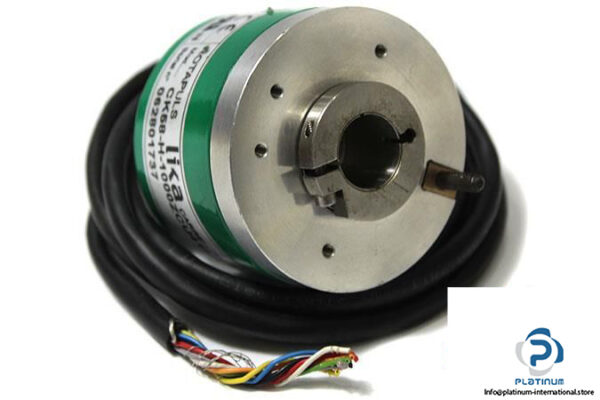

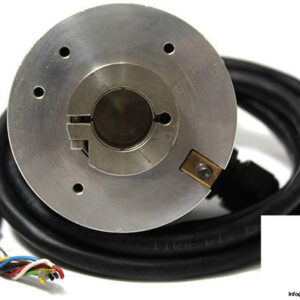

- Shaft Type: Hollow Shaft
- Shaft Diameter: 15 mm
- Resolution: 1000 Pulses per Revolution (PPR)
- Voltage Supply: 5 / 30 VDC
- Counting Frequency: 300 kHz max
- Output Circuits: PP/LD
- Output Signals Configuration: Bidirectional with index pulse

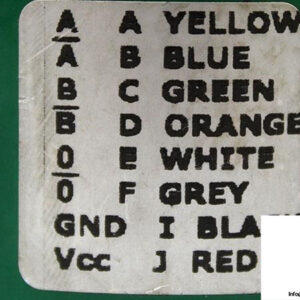

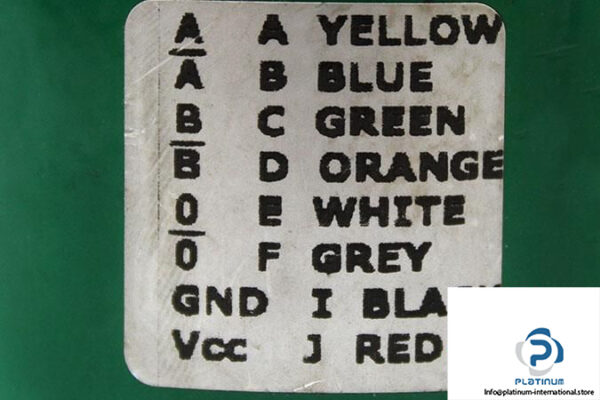

- Connection Type: 8 wires cable, 1m. (3.3 ft)
- Operating Temperature: -25 / 85 °C
- Protection Class: IP64
