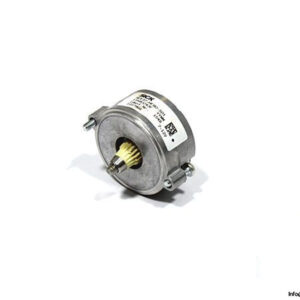

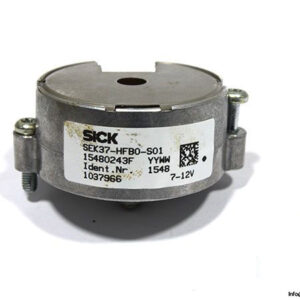

SICK SEK37HFB0S01 MOTOR FEEDBACK ROTARY ENCODER
The SICK SEK37HFB0S01 is a high-precision motor feedback rotary encoder designed for performance, reliability, and accurate positioning in advanced automation systems. Utilizing HIPERFACE communication and a tapered shaft design, this encoder is ideal for dynamic industrial environments.
Manufacturer: SICK
Type: Motor Feedback Rotary Encoder
Model: SEK37HFB0S01
Part No.: 15480243F
Ident. No.: 1037966
Ref No.: 1548
Technical Information
- Shaft Type: Tapered Shaft
- Operating Speed: 6000 min»¹
- Sine/Cosine Periods Per Revolution: 16
- Steps Number Per Revolution Max.: 512 via RS485
- Rated Voltage: 7“12 V DC
- Rated Current Consumption: 50 mA
- Absolute Value Code Type: Binary
- Communication Interface: HIPERFACE
- Electrical Connection: Male Connector, 8-Pin, Radial
- Outer Diameter: 36 mm
- Protection Class: IP20
