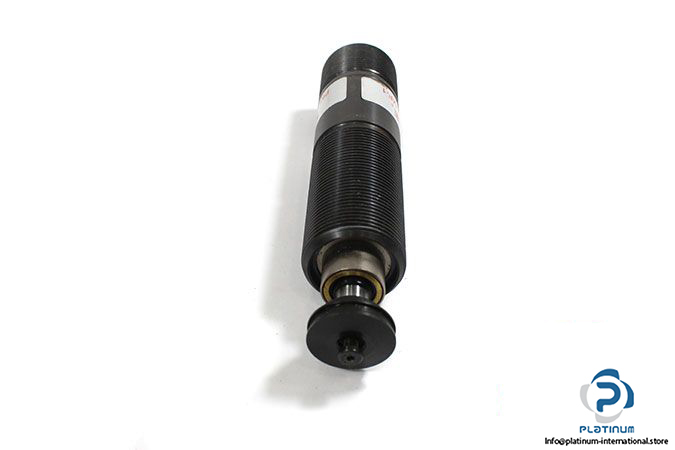

Manufacturer: ENIDINE

Type: NON-ADJUSTABLE HYDRAULIC SHOCK ABSORBER

Series: PM

Model: PM 220MF

MRN: PM 220 MF-1

Application:

• Printing Presses
• Turnstiles
• Tension / Compression Applications

Features:

• A select variety of surface finishes maintains original quality appearance and provides the longest corrosion resistance protection.
• Incorporating optional fluids can expand the standard operational temperature range
• Threaded cylinders provide mounting flexibility and increased surface area for improved heat dissipation.

Damping Constant: -1

Nominal ExtendedCoil Spring Force:31 N

Nominal Compressed Coil Spring Force: 89 N

Max. ETC: 90,300 Nm/h

Max. Propelling Force: 3,100 N

Stroke Length: 50 mm

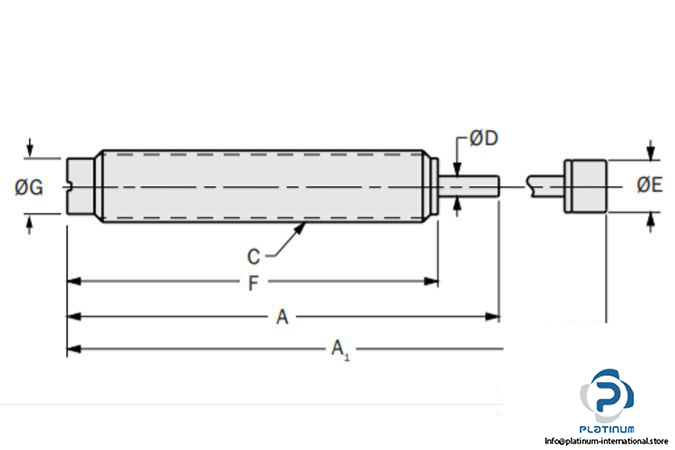

Rod Diameter ( D ): 9,5 mm

Length ( F ): 128 mm

Total length: 178 mm

Diameter and Step for Threaded Surface:  M33 x 1,5

Temperature Range: -10 ….. 80 ^°C

Weight:  0.58 kg
