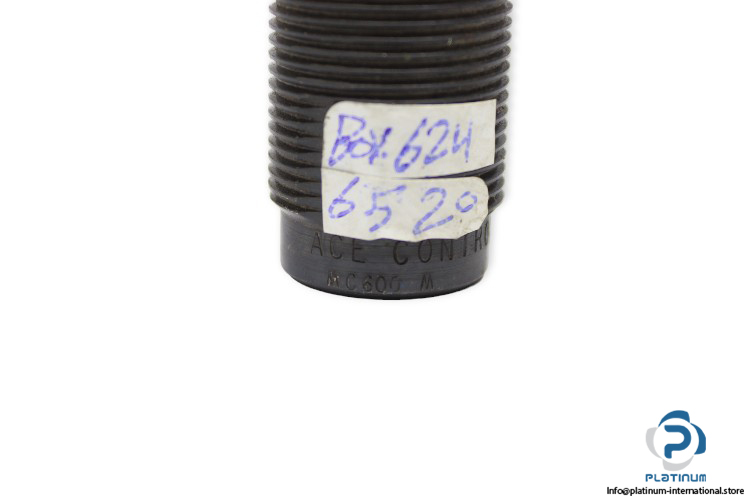

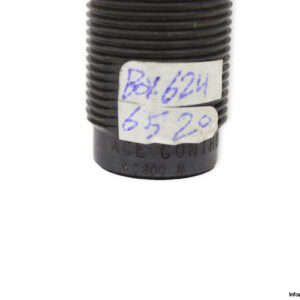

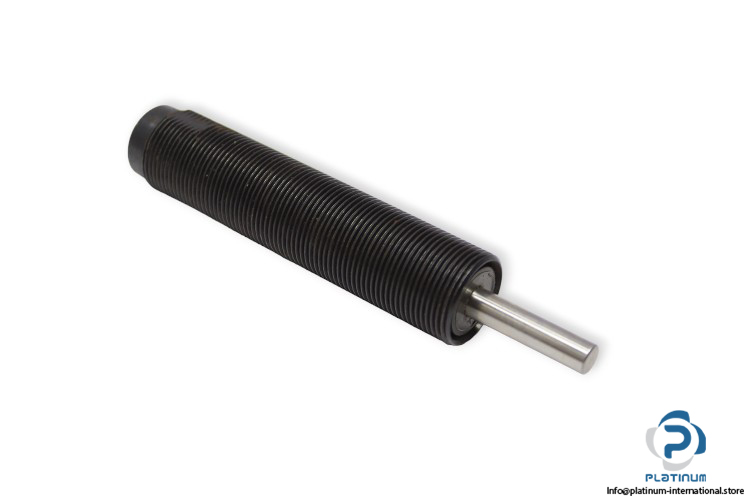

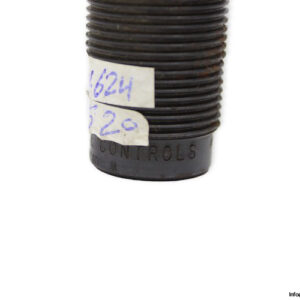

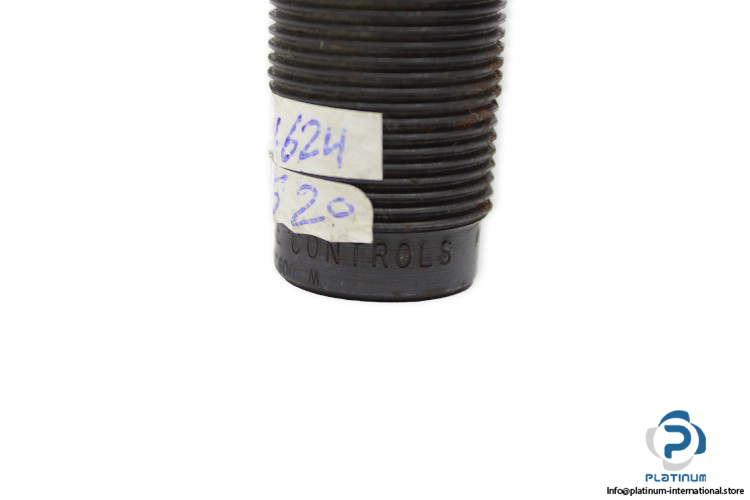

ACE Controls MC600 M Shock Absorber

Manufacturer: ACE CONTROLS
Type: SHOCK ABSORBER
Model: MC600M

Energy capacity: 1,200 in-lbs/Cycle
Rod Diameter: 8 mm
Stroke Length: 33 mm
Total length: 142 mm
Impact velocity range: 0.25 ft/sec to 1.15 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Material: Outer body: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM
Damping medium: Oil
