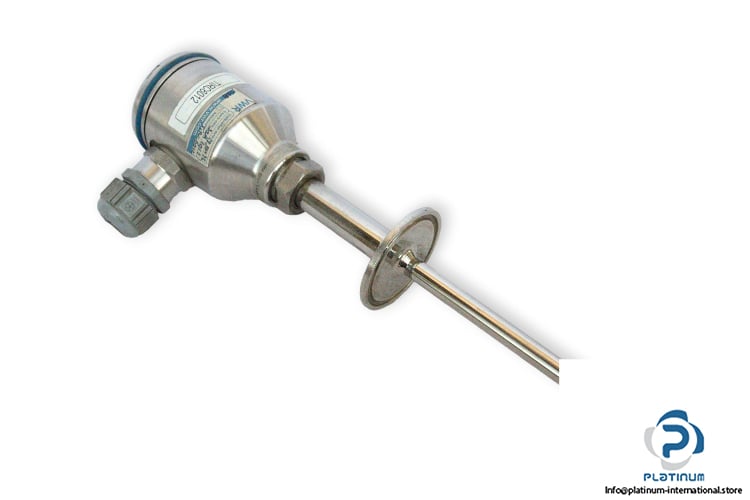

Manufacture: Endress+Hauser
Type: Temperature Sensor

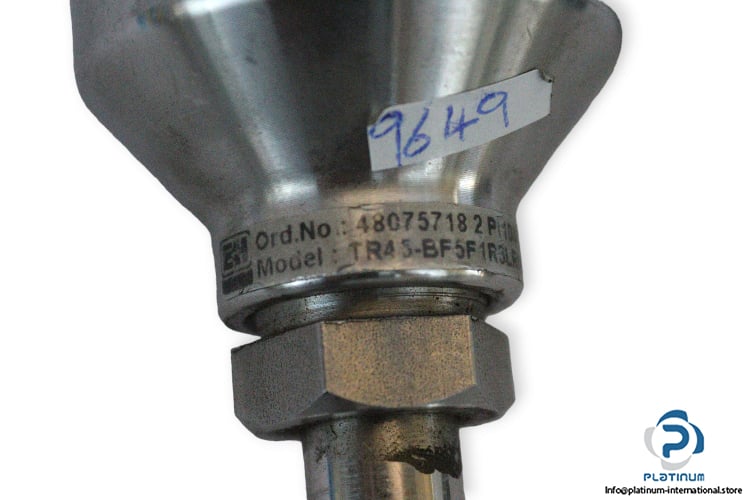

Model: TR45BF5F1R3LR0G00
Order No.: 480757182
Application: All hygienic applications for food, pharmaceutical and fine chemicals industries
Measuring range: -50 … 400 °C (-58…752 °F)
Pressure range: up to 40 bar (580 psi)
Degree of protection: up to IP 68
Measuring Element: Pt 100
Installation Length: 120 mm
Tip Shape: Reduced, D=8 mm
Terminal type: Terminal block
Wire Connection: 3 Wire
Process connection: 1+1½”, ISO2852, clamp, 3A
Sensor Diameter: 15 mm
