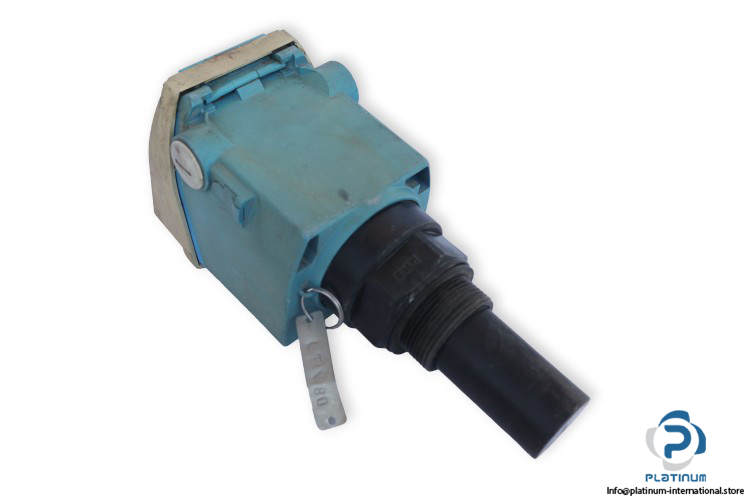

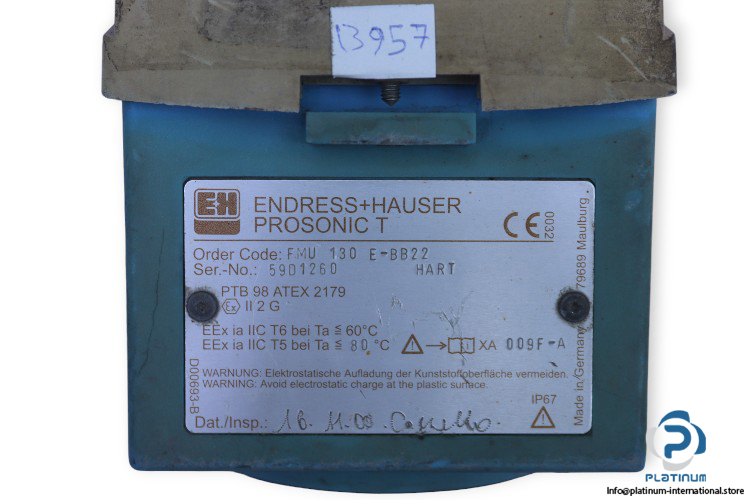

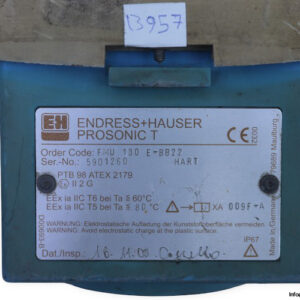

Endress+Hauser Prosonic T FMU 130 E-BB22 Ultrasonic Level Transmitter

Manufacturer: ENDRESS+HAUSER
Type: Ultrasonic Level Transmitter
Model: PROSONIC T FMU130E-B22

Series: FMU 130
Instrument Designation: PROSONIC T
Description: PROSONIC T Is A Compact Ultrasonic Transmitter for Continuous Non-Contact Level Measurement In Liquids and in Coarse-Grained or Pelleted Solids
Measuring Range: 0.25 … 4 m
Operating Pressure: 3 bar (43.5 PSI)
Sensor Prob Length: 87 mm

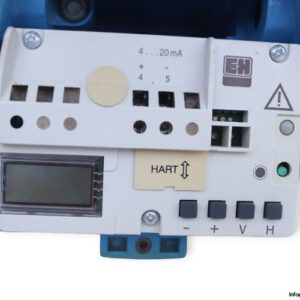

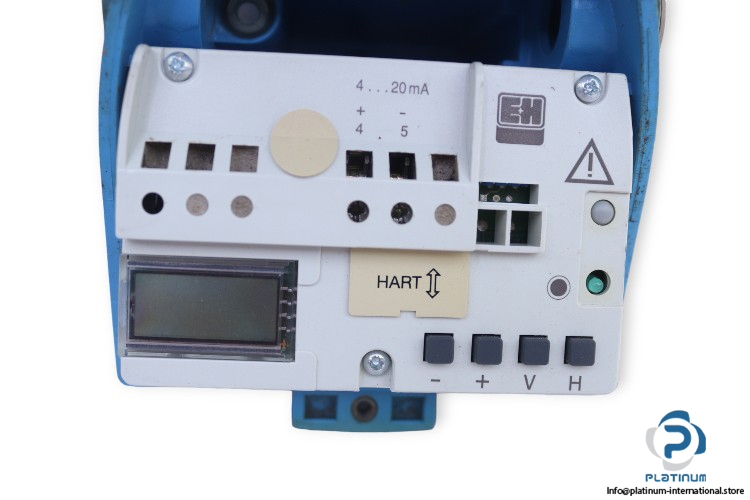

Output Signal: 4 … 20 mA HART
Material: PBT (Fiber-Glass Reinforced, Flame-Retarded)
Protection Class: IP67
Ambient Temperature: -20 … 60 °C
Dimensions: 260 x 105 x 112 mm
