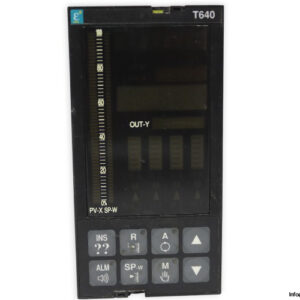

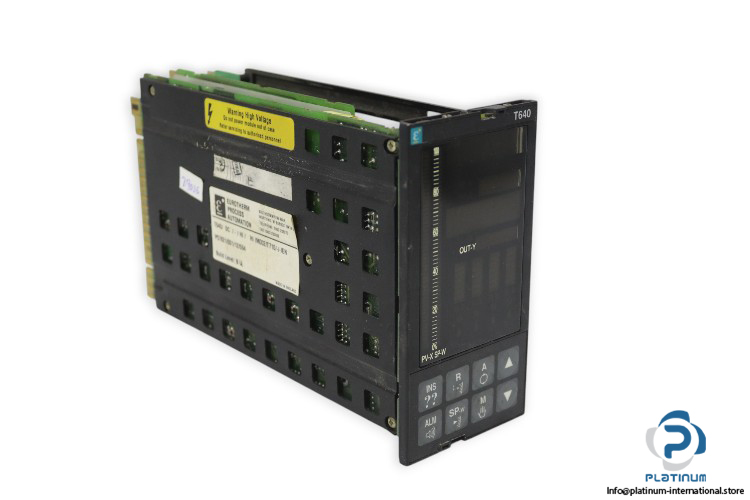

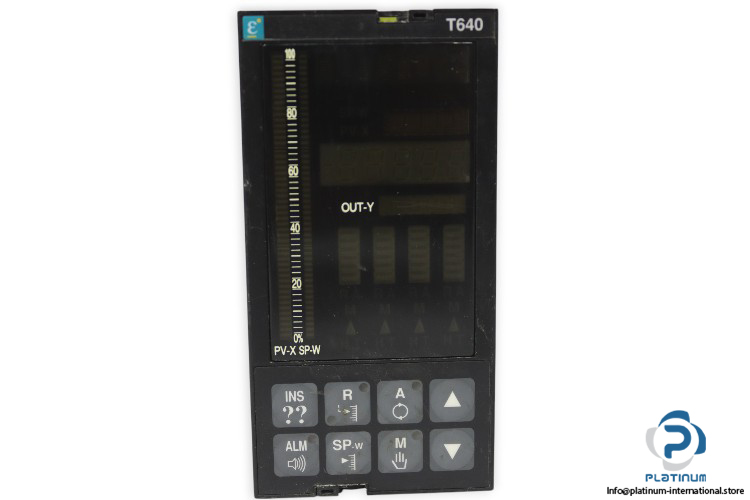

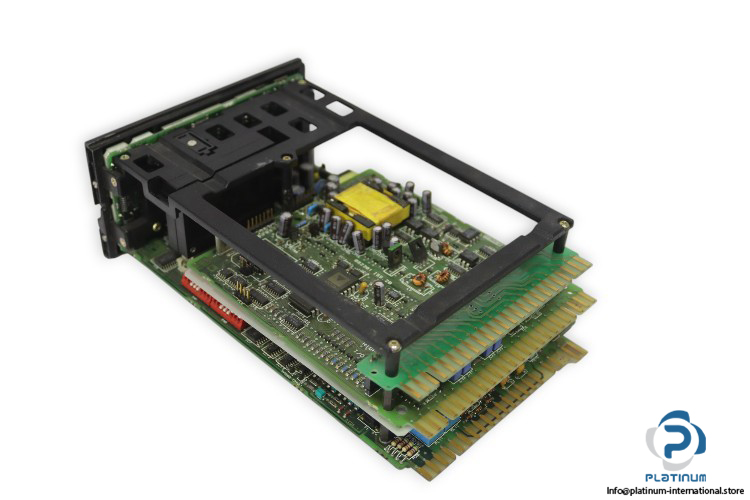

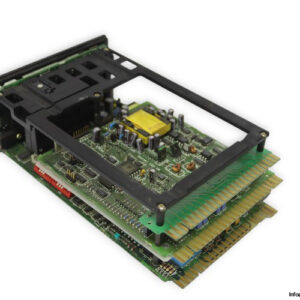

EUROTHERM T640/DC CONTROLLER MODULE
The Eurotherm T640/DC controller module is a high-performance process automation solution, designed for precise measurement, control, and reliable performance across industrial applications. It offers versatile analogue and digital inputs/outputs, robust transmitter supplies, and durable construction with IP65 front panel sealing.
Manufacturer: Eurotherm Process Automation
Type: Controller Module
Model: T640 / DC

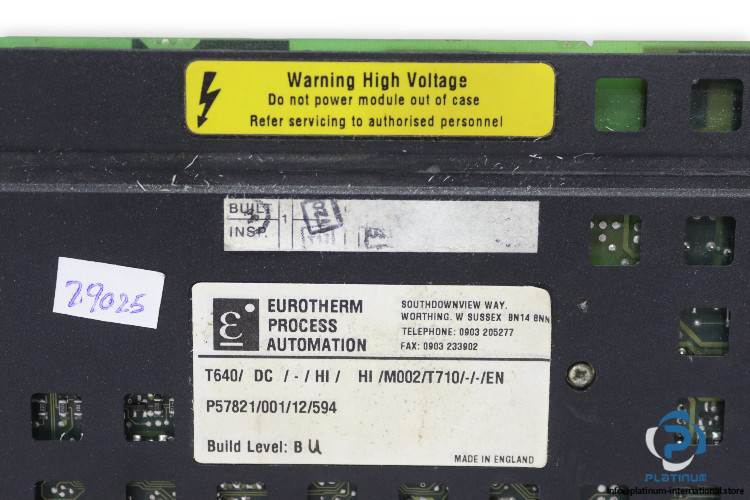

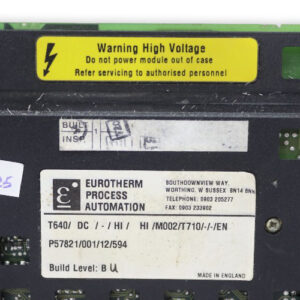

mnr: T640 / DC / – / HI / HI / H/M002/7710/-/-/EN
MRN: P57821/001/12/594
Technical Information
- Analogue Input: 4 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 0.025%, Accuracy 0.05% of range
- Transmitter Power Supplies: 1 channel, Voltage 24V ±5%, Current 0-22mA
- Voltage Analogue Outputs: 2 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 12 bits
- Current Analogue Outputs: 1 channel, 0-20mA (Rangeable 0-10mA, 0-20mA, 4-20mA etc.), Over-range 22mA
- Digital Inputs: 4 channels, Logic 1 ‰¥ 7.5V, Logic 0 ‰¤ 2.5V, Hysteresis 1.0V min “ 3.5V max
- Operating Temperature: 0°C to +50°C
- Front Panel Sealing: IP65
