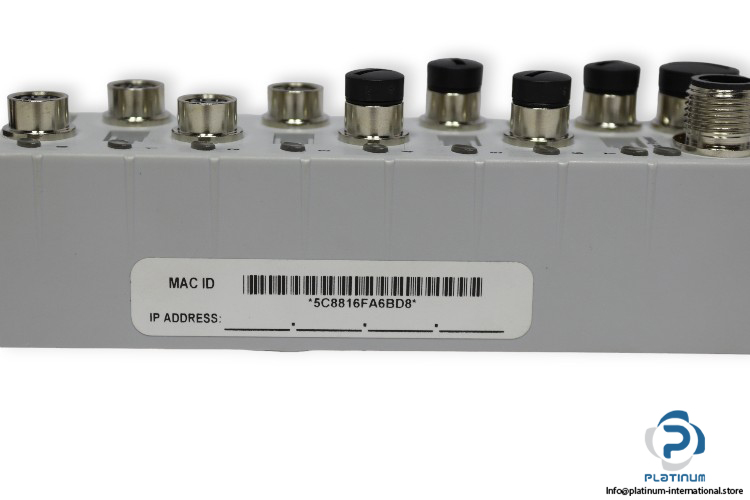

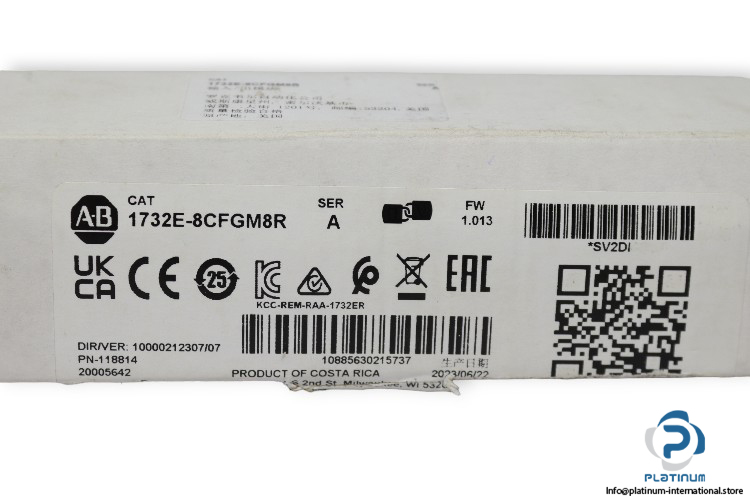

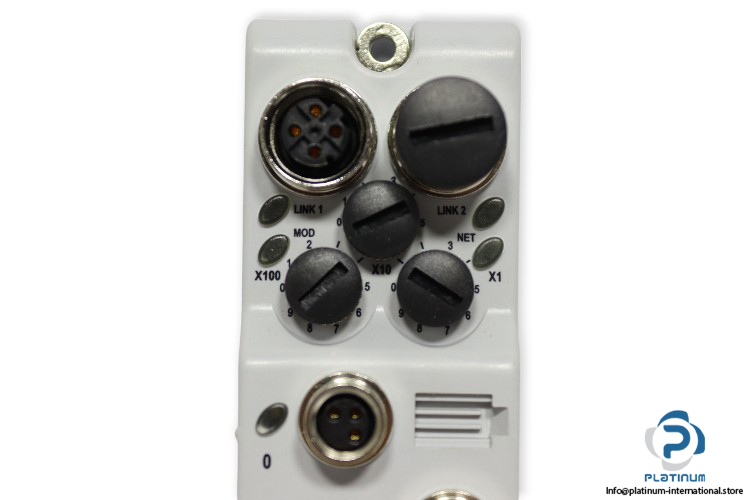

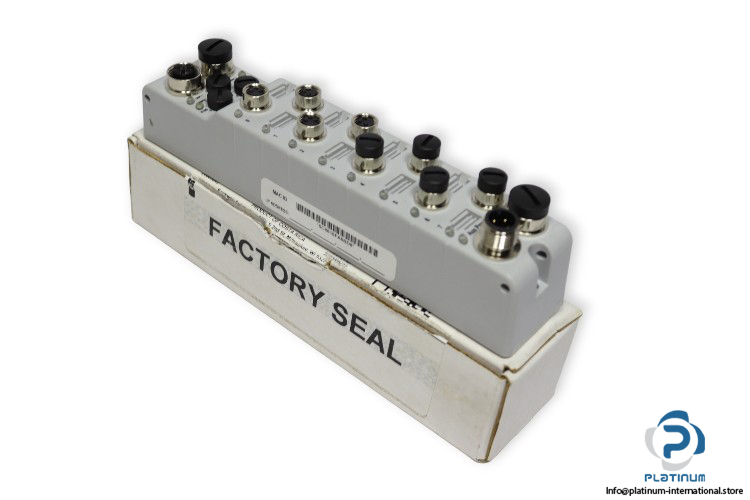

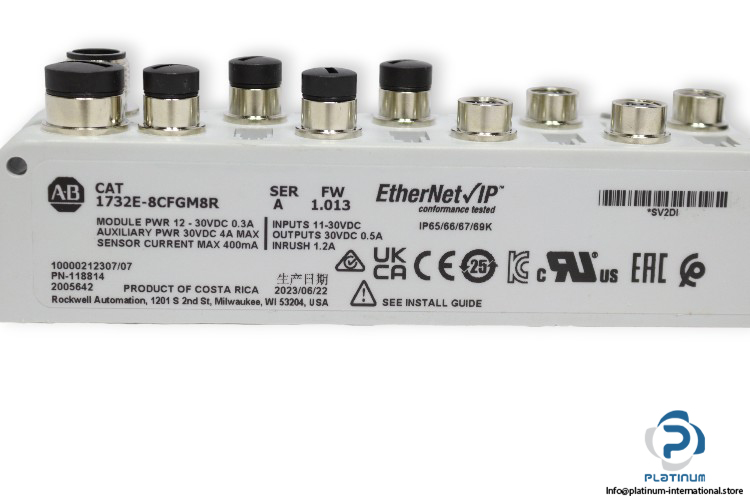

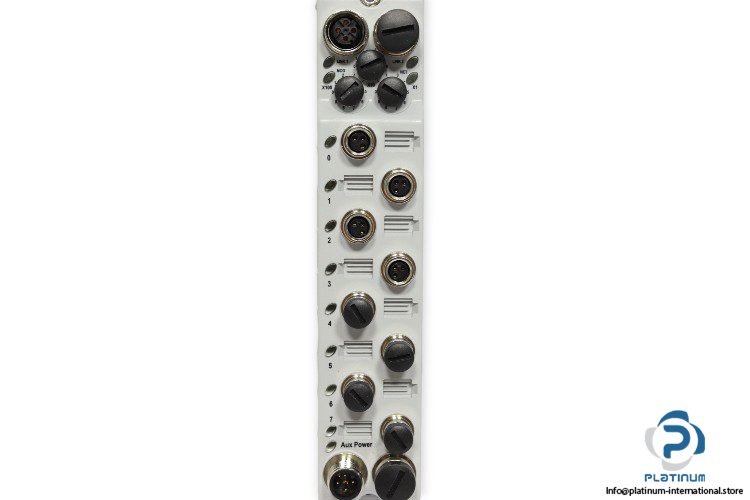

Allen-Bradley 1732E-8CFGM8R Input/Output Module

Manufacturer: Allen-Bradley
Type: Input/Output Module
Model: 1732E-8CFGM8R
Part No.: 118814 / 2005642 / 10000212307/07

Network Connection: EtherNet
Number Of Inputs/Outputs: 8 Configurable Digital I/O, Dual-Port
Protection degree: IP65/67/69K/66
Power Connector: M8 Input/Output
Network Connector: M12
Input Specifications:
Number of inputs: 8 Sink Type
On-state voltage:
11 V DC, min
24 V DC, nom
30 V DC, max
Off-state voltage, max: 5 V DC
On-state current, min: 180 µA @ 11 V DC
On-state current, max: 5.0 mA @ 30 V DC
Off-state current, max: 90 µA @ 5 V DC
Voltage sensor source, max: 30 V DC
Voltage sensor source, min: 10 V DC
Input filter: 0 ms (default), 2 ms, 4 ms, 8 ms, and 16 ms
Output Specifications:
Number of outputs: 8 sourcing type
On-state voltage:
11 V DC, min
24 V DC, nom
30 V DC, max
Surge current per output, max: 1.2 A for 10 ms, repeatable every 2 s
Leakage current, off-state output, Max: 50 µA
On-state current: 0.5 A per output, up to 4 A per module
Operating Temperature: -20 … 60°C
Dimensions: 179 x 37 x 27 mm
