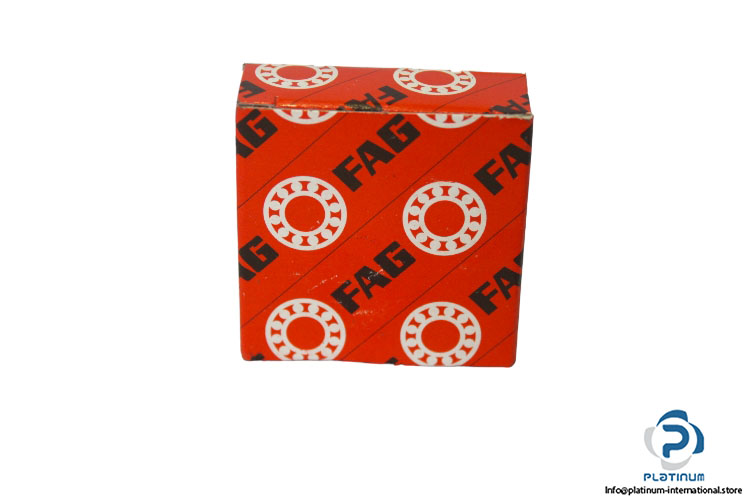

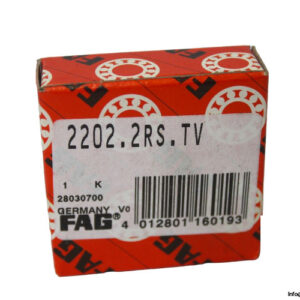

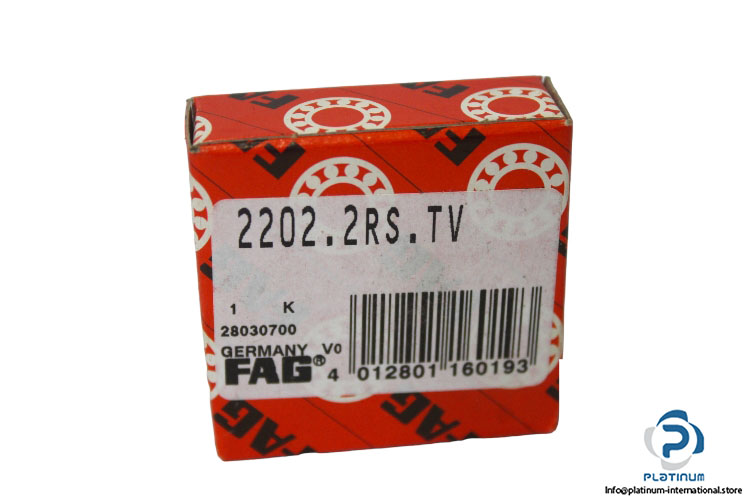

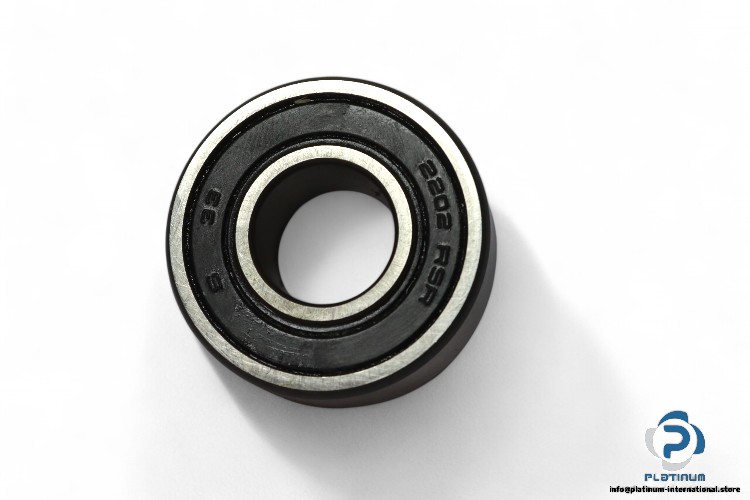

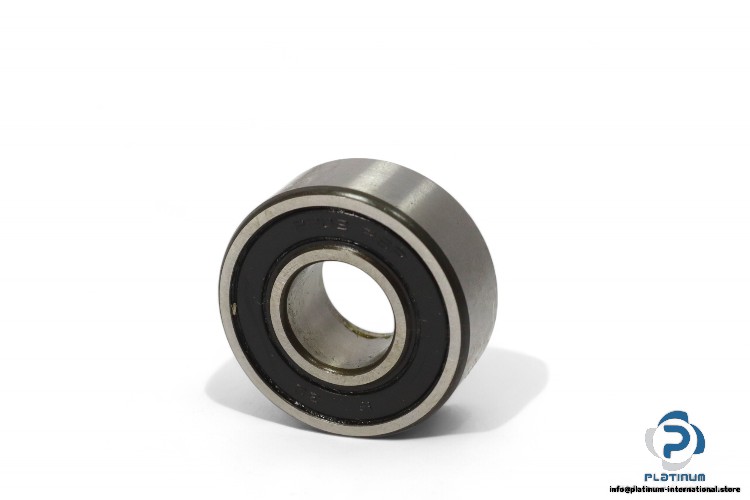

FAG 2202.2RS.TV Self-Aligning Ball Bearing
The FAG 2202.2RS.TV Self-Aligning Ball Bearing offers enhanced performance and reliability, especially in applications involving misalignment. With high dynamic and static load capacities, this bearing provides smooth operation even at high speeds.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 2202.2RS.TV
Technical Information:
- Bore Diameter (d): 15 mm
- Outer Diameter (D): 35 mm
- Width (B): 14 mm
- Dynamic Load Capacity (Cr): 7700 N
- Static Load Capacity (C0r): 1750 N
- Fatigue Load Limit: 111 N
- Limiting Speed: 13700 rpm
- Sealing: 2RS, contact seal on both sides
- Cage: TV, solid cage made of glass-fiber reinforced polyamid PA66
