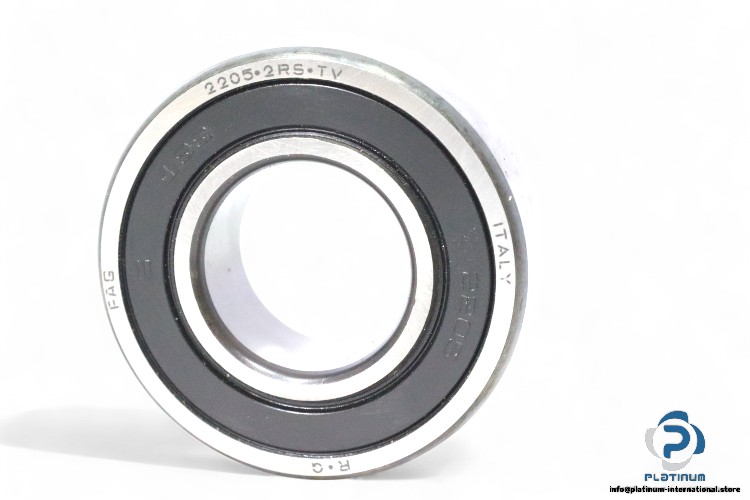

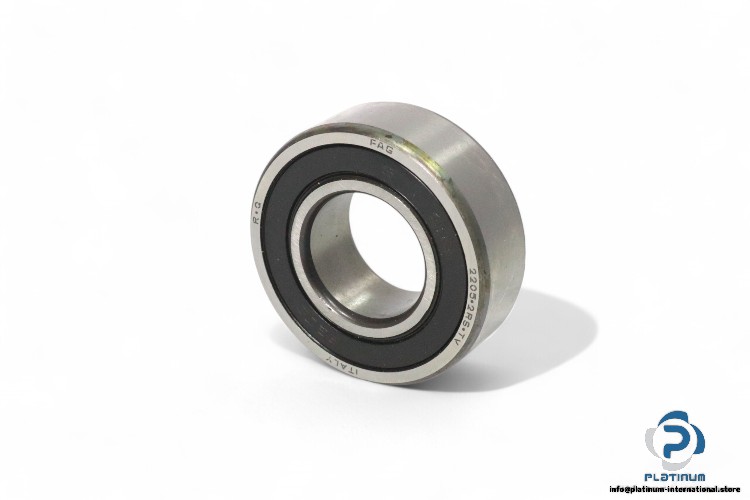

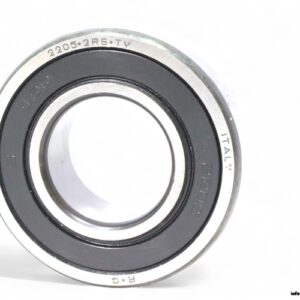

FAG 2205.2RS.TV Self-Aligning Ball Bearing

Manufacturer: FAG
Type: SELF-ALIGNING BALL BEARING
Model: 2205-2RS-TV

Dimensions:
Bore Diameter d: 25 mm
Outer Diameter D: 52 mm
Bearing Width B: 18 mm
Basic dynamic load rating, radial: 12300 N
Basic static load rating, radial: 3300 N
Fatigue load limit, radial: 209 N
Limiting speed: 8500 1/min
Bore Type: Cylindrical
Sealing: 2RS, contact seal on both sides
Cage: TV, solid cage made of glass-fiber reinforced polyamide PA66
Radial internal clearance: CN, Normal internal clearance
