Manufacturer: FAG
Type: Spherical Roller Bearing with tapered bore

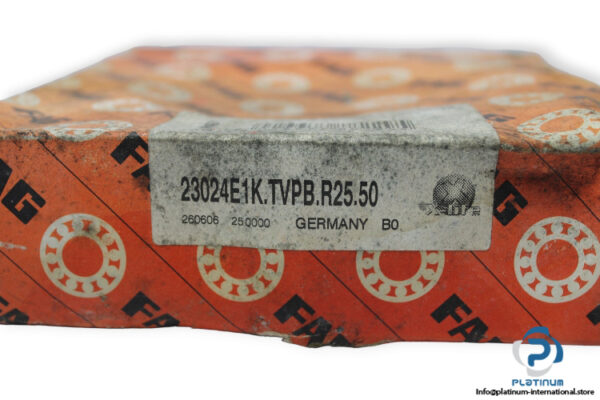

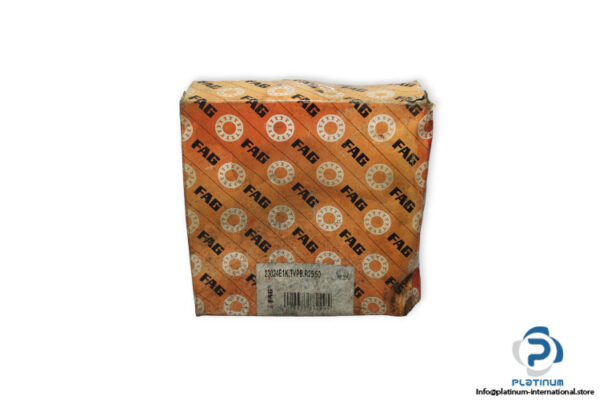

Model: 23024 E1K.TVPB.R25.50

Dimensions
Bore Diameter d: 120 mm
Outer diameter D: 180 mm
Width B: 46 mm
Dynamic load rating: 430000 N
Static load rating: 580000 N
Fatigue load limit: 60000 N
Limiting speed: 3950 rpm
Reference speed: 2800 rpm
Design: E1, without central rip
Cage material: Plastic cage
Bore type: Tapered bore, taper 1:12
Radial Clearance In μm: R25-50
