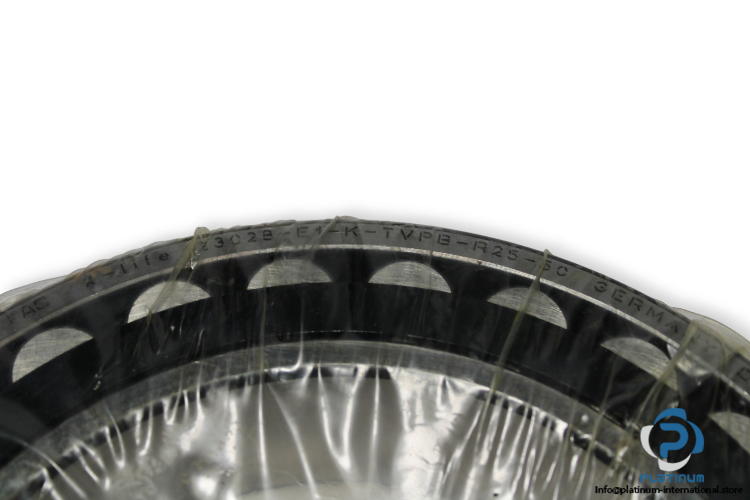

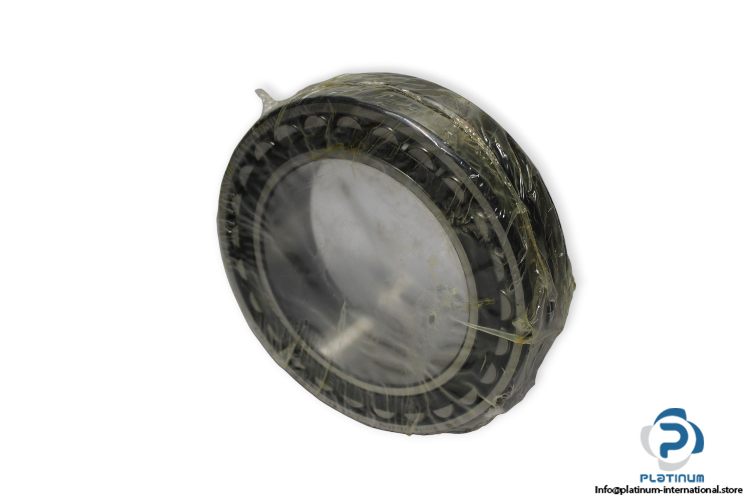

FAG 23028-E1-K-TVPB-R25-50 Spherical Roller Bearing
New
Manufacturer: FAG
Type: Spherical Roller Bearing with tapered bore
Model: 23028E1-K-TVPB-R25-50
Dimensions
Bore Diameter d: 140 mm
Outer diameter D: 210 mm
Width B: 53 mm
Dynamic load rating: 570000 N
Static load rating: 800000 N
Fatigue load limit: 77000 N
Limiting speed: 3450 rpm
Reference speed: 2390 rpm
Design: E1, without central rip
Cage material: Plastic cage
Bore type: Tapered bore, taper 1:12
Radial Clearance In μm: R25-50
