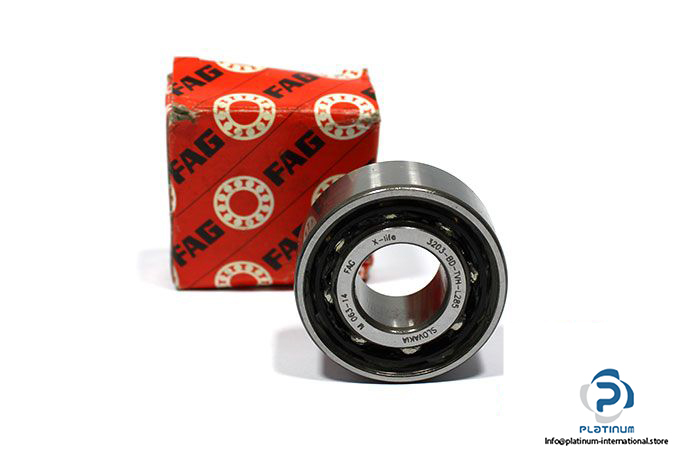

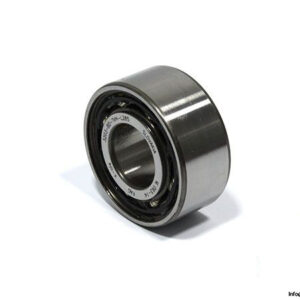

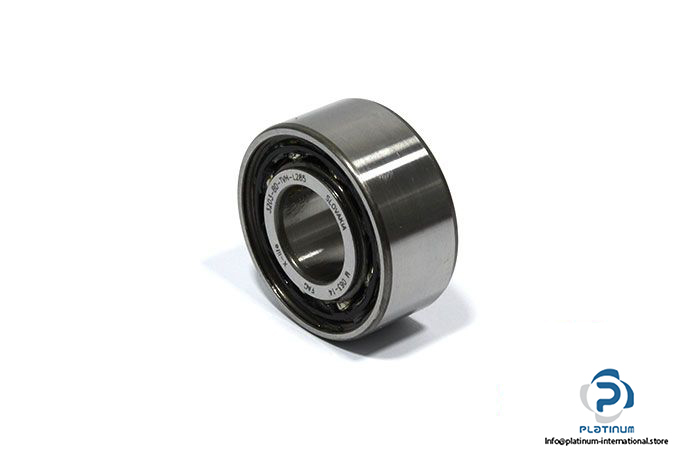

Manufacturer: Schaeffler FAG

Type: Double Row Angular Contact Ball Bearing

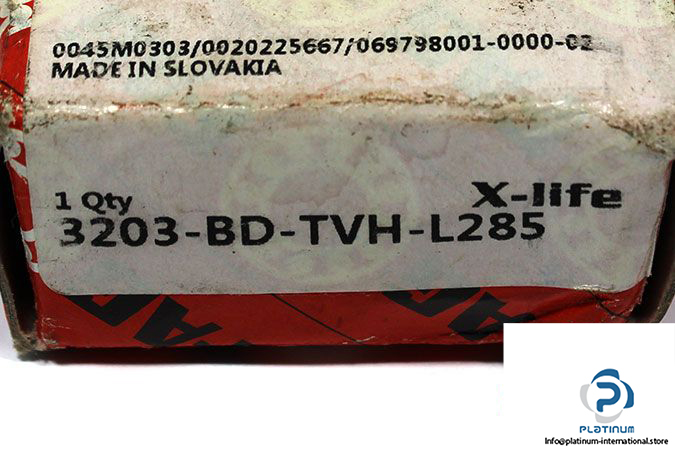

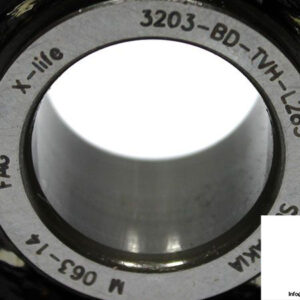

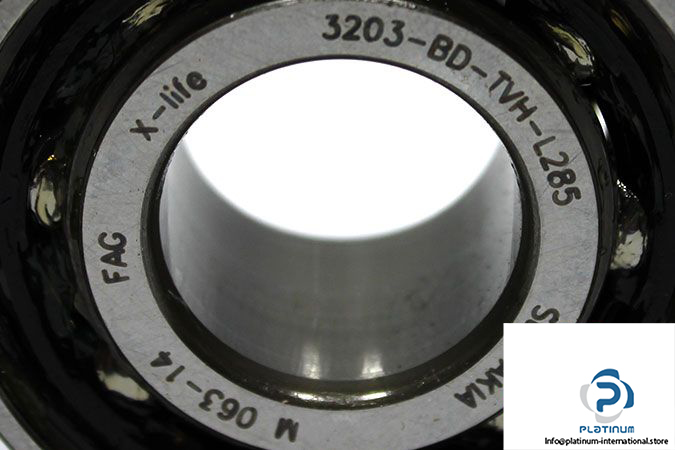

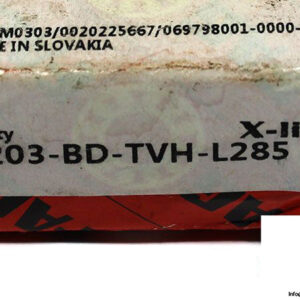

Model: 3203 BD TVH L285

Replaces: 3203-BD-XL-TVH-L285, 3203-B-TVH

Dimensions

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 17.5 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 15500 N

Static C_0r: 9500 N

Fatigue load limit C_ur: 660 N

Limiting speed: 19400 rpm

Reference speed: 16600 rpm

Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66

Lubricant: Grease L285

Operating temperature: -20 … +120 °C
