SKF 7004 CD/P4ADGA Angular Contact Ball Bearing
Manufacturer: SKF
Type: Angular Contact Ball Bearing

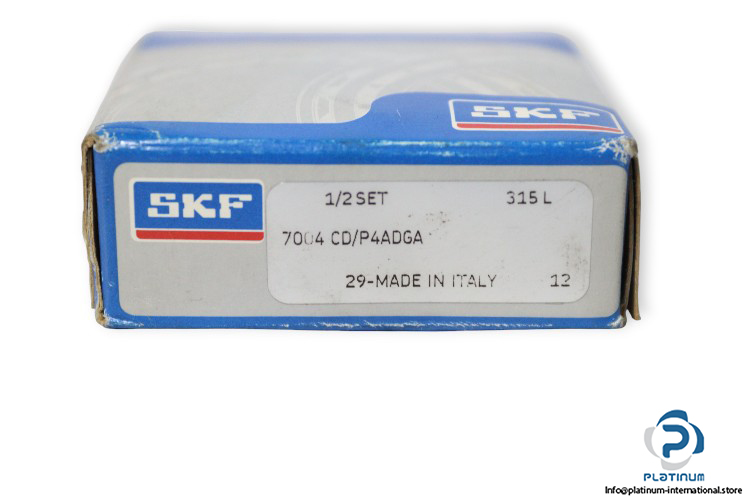

Model: 7004CD/P4ADGA
Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 42 mm
Width B: 24 mm
Contact angle α: 15 °
Basic load ratings:
Dynamic C: 14000 N
Static C0: 8500 N
Fatigue load limit Pu: 365 N
Matched condition (axial clearance/ preload): Extra light preload
Design: High-capacity D
Material, bearing: Bearing steel
Tolerance class: P4A
