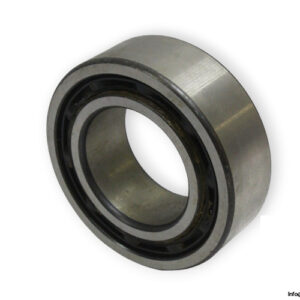

FAG 3210B.TVH Double Row Angular Contact Ball Bearing
The FAG 3210B.TVH Double Row Angular Contact Ball Bearing is designed to accommodate high radial and axial loads. It is ideal for applications that require high speed and precision, offering a dynamic load capacity of 53,000 N.
Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3210B.TVH
Technical Information:
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 90 mm
- Width (B): 30.2 mm
- Contact Angle: 30 °
- Dynamic Load Rating (Cr): 53,000 N
- Static Load Rating (C0r): 44,000 N
- Fatigue Load Limit (Cur): 3,050 N
- Limiting Speed: 7,800 rpm
- Reference Speed: 7,600 rpm
- Cage Design: TVH, Solid cage made of glass-fiber reinforced polyamide PA66
