Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing (Spindle Bearing)

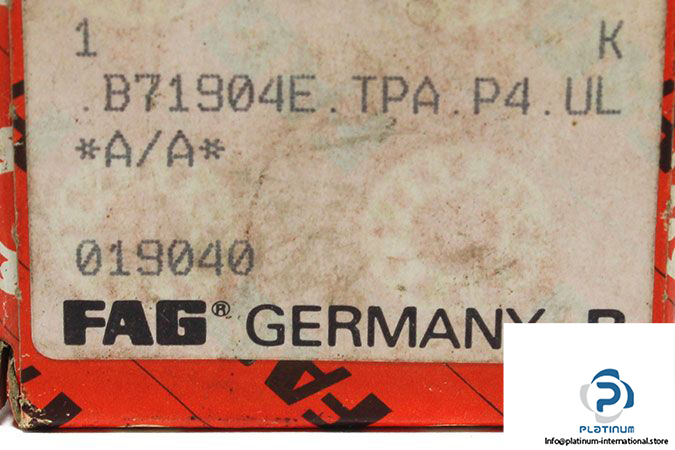

Model: B71904 E.TPA.P4.UL

Replaces: B71904E.T.P4S.UL, B71904-E-T-P4S-UL

Dimensions:

Bore Diameter d: 20 mm

Outer diameter D: 37 mm

Width: 9 mm

Contact angle: 25 °

Dynamic load rating: 7000 N

Static load rating: 3050 N

Fatigue load limit: 325 N

Limiting speed for grease lubrication: 38000 RPM

Limiting speed for oil lubrication: 60000 RPM

Tolerance class: P4S

Cage material: Laminated fabric cage
