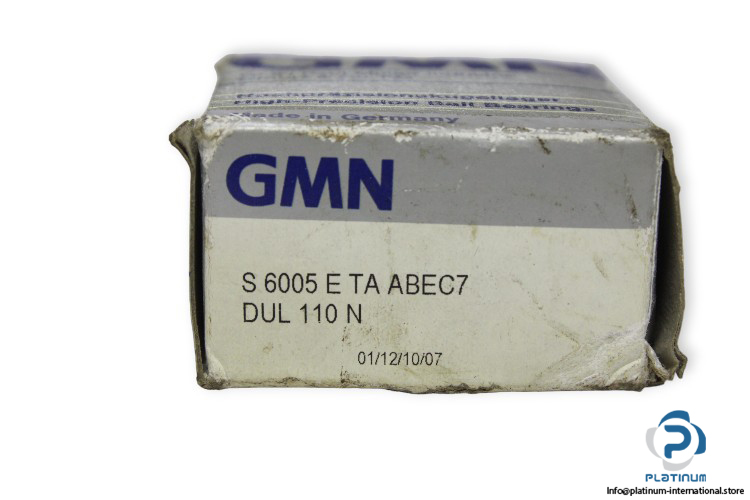

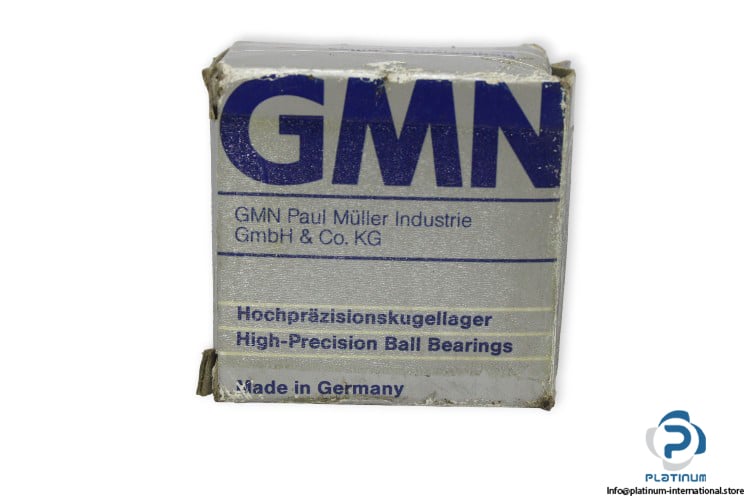

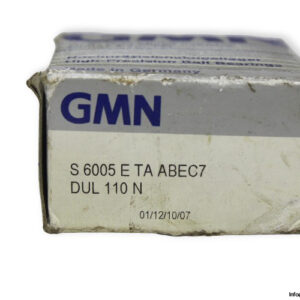

GMN S 6005 E TA ABEC7 DUL 110 N Spindle Ball Bearing
41,44$
High Precision Spindle Bearing
Ultra-precision GMN spindle bearing with ABEC 7 accuracy, high-speed capability, and universal matching”ideal for CNC spindles and advanced automation systems.GMN S 6005E TA ABEC7 DUL 110 N High Precision Spindle Ball Bearing
A premium high-speed spindle bearing engineered for exceptional precision, stability, and performance in demanding machining and automation environments. Designed for advanced spindle systems, CNC equipment, high-speed motors, and precision assemblies requiring outstanding accuracy and long service life. Manufacturer: GMN
Type: High precision spindle ball bearing
Model: S 6005E TA ABEC7 DUL 110 N
Series: Standard spindle bearings
Dimensions
Bore Diameter d: 25 mm
Outer Diameter D: 47 mm
Width B: 12 mm
Basic Load Ratings “ Standard Bearing:
Dynamic Cr: 12700 N
Static C0r: 8800 N
Speed Value:
Oil: 40000 rpm
Grease: 30000 rpm
Nominal Contact Angle: E, 25°
Cage: TA, Laminated phenolic resin cage guided in outer ring
Tolerance Class: ABEC 7
Bearing Sets: D, 2 bearing
Matching and Preload: UL, Universal matching “ light preload
Item Per Set: 2
Recommendation:
This GMN spindle bearing set is an exceptional choice for industries requiring superior rotational accuracy and high-speed stability. With ABEC 7 precision, a 25° contact angle, and a high-performance TA cage, it ensures ultra-smooth operation and reduced heat generation, making it ideal for CNC spindles, servo-driven assemblies, and high-speed automation systems. Thanks to the universal match (UL) and light preload, installation is simplified while guaranteeing perfect alignment and optimized performance. For enhanced system efficiency, pair this bearing with high-accuracy servo motors and compatible industrial sensors available from Platinum International to achieve exceptional precision, longevity, and reliability across the entire machine setup.
